How to bias a transistor for proper DC operating point

TL;DR

Biasing places the transistor in the active region to enable faithful amplification. The method uses biasing networks and load lines to establish the input and output operating points, which can shift with component changes. Proper biasing minimizes distortion and maximizes signal swing within supply limitations.

Transcript

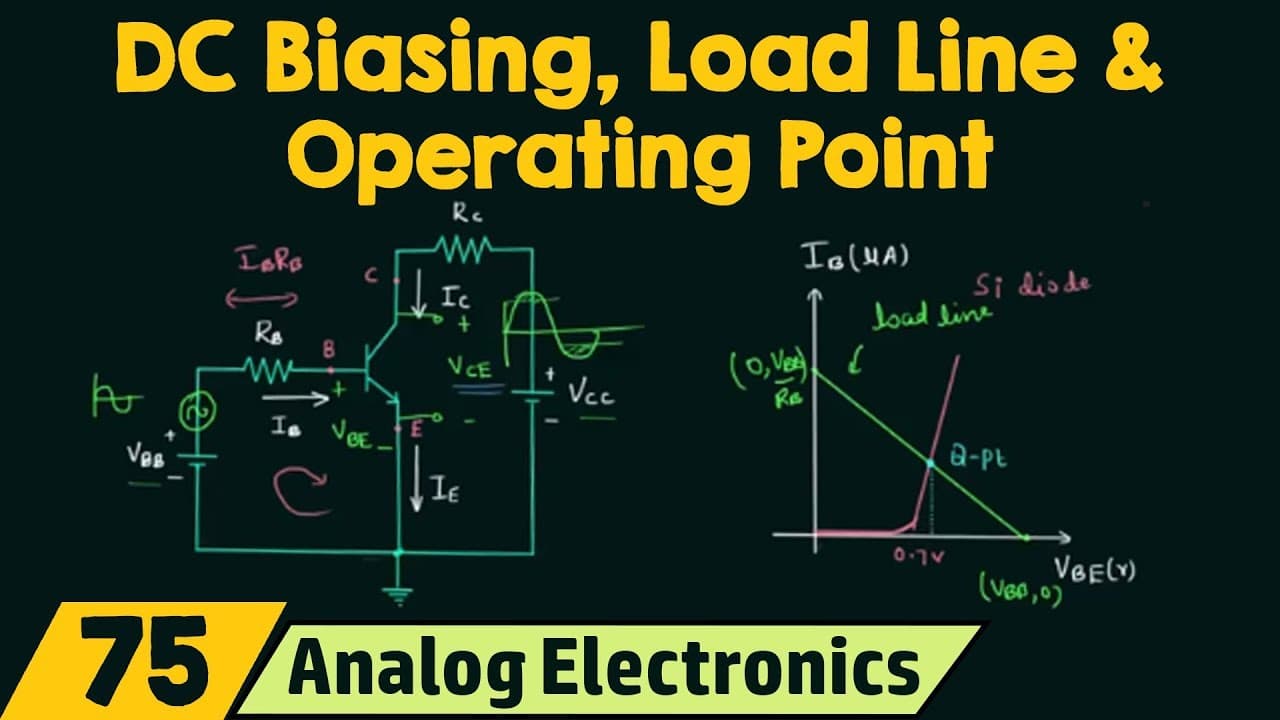

from this lecture we will start by seeing of transistors the analysis of transistor as an amplifier requires the knowledge of both DC and AC response of the system we can do DC and AC analysis of a transistor separately but the parameters chosen in DC analysis will affect the AC response and the vice versa is also true once the desired DC current a... Read More

Key Insights

• Biasing is the process of applying external DC voltages to set the transistor's operating point.
• The operating point can be determined from the intersection of the load line with the transistor's input characteristics for a given Vce.
• Input and output load lines are drawn separately to define input and output operating points.
• The slope of a load line is tied to -1/RB for the input and -1/RC for the output, governing how bias changes affect the operating point.
• A transistor amplifier must be biased in the active region to avoid clipping and distortion.
• Changing RB shifts the input load line, moving the input operating point.
• Changing RC shifts the output load line, moving the output operating point.
• Centering the operating point within the active region maximizes symmetrical output swing.
