What Is the Inscribed Square Problem in Topology?

TL;DR

The inscribed square problem asks whether every closed continuous loop has an inscribed square. While the problem remains unsolved, a proof exists for inscribed rectangles using topology concepts like Möbius strips and Klein bottles. These shapes, often seen as curiosities, are actually tools for logical deduction in mathematics.

Transcript

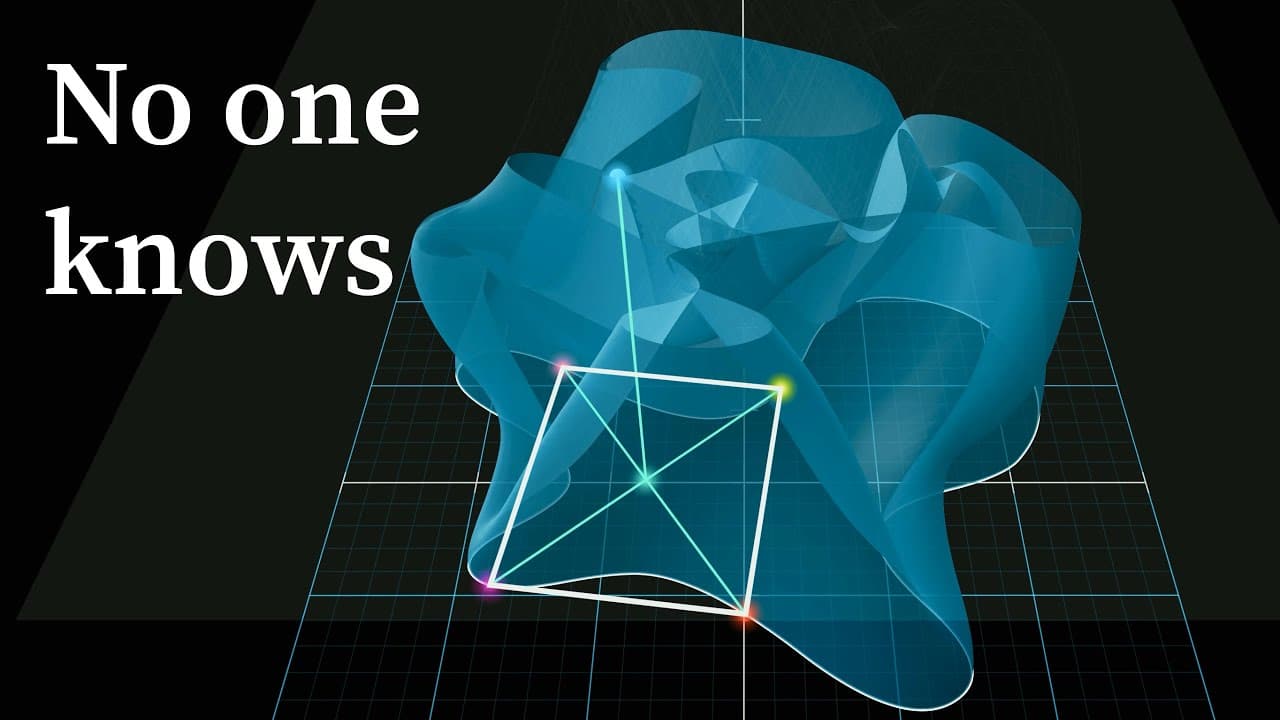

Here's a question that nobody in the world knows the answer to. Suppose you have some closed continuous curve, which essentially means some squiggle you could draw on paper without lifting the pen, that ends where it starts. If you can find four points somewhere on this loop that make the vertices of a square, it's called an inscribed square of the... Read More

Key Insights

• The inscribed square problem asks if every closed continuous loop has an inscribed square.
• Möbius strips and Klein bottles are key topological tools in solving the inscribed rectangle problem.
• Topology studies continuous associations and the constraints or possibilities they create.
• A Möbius strip is a surface representing unordered pairs of points on a loop.
• A Klein bottle is a closed, non-orientable surface that cannot exist in 3D without self-intersection.
• Embedding a Möbius strip in 3D with its edge confined to a plane requires self-intersection.
• The inscribed rectangle proof shows that any loop has inscribed rectangles using topological mapping.
• The inscribed square problem remains unsolved for rough curves, but progress has been made for smooth ones.

Questions & Answers

Q: What is the inscribed square problem?

The inscribed square problem asks whether every closed continuous loop has at least one inscribed square. An inscribed square is defined as four points on the loop that form the vertices of a square. This problem was first posed by Otto Toeplitz in 1911 and remains unsolved for all types of curves.

Q: How does topology help solve the inscribed rectangle problem?

Topology helps solve the inscribed rectangle problem by using concepts like Möbius strips and Klein bottles. These are topological surfaces that represent unordered pairs of points on a loop. By mapping these surfaces into three-dimensional space, mathematicians can demonstrate that any loop has inscribed rectangles, leveraging the properties of these topological shapes.

Q: What is a Möbius strip in topology?

A Möbius strip is a non-orientable surface with only one side and one boundary. In topology, it represents unordered pairs of points on a loop. The Möbius strip is significant because it illustrates the concept of continuous mapping and is used in mathematical proofs, such as demonstrating the existence of inscribed rectangles in closed loops.

Q: Why is the inscribed square problem difficult to solve?

The inscribed square problem is difficult to solve because it involves all types of closed curves, including rough ones like fractals, which lack smoothness and well-defined tangent lines. While progress has been made for smooth curves, the complexity of rough curves presents significant challenges, requiring advanced topological techniques and higher-dimensional mappings.

Q: What is a Klein bottle, and why is it important?

A Klein bottle is a closed, non-orientable surface that cannot be embedded in three-dimensional space without self-intersecting. It is important in topology because it represents complex surfaces that defy conventional interior-exterior distinctions. Klein bottles are used in mathematical proofs to demonstrate the impossibility of certain embeddings, such as in the inscribed rectangle problem.

Q: How does the proof for inscribed rectangles work?

The proof for inscribed rectangles uses topological mapping by associating pairs of points on a loop with points in three-dimensional space. By demonstrating that a continuous mapping from a Möbius strip to this space must self-intersect, mathematicians show that any loop must contain inscribed rectangles. This proof highlights the utility of topology in solving geometric problems.

Q: What role do Möbius strips play in the inscribed rectangle proof?

Möbius strips play a crucial role in the inscribed rectangle proof as they represent unordered pairs of points on a loop. By mapping these strips into three-dimensional space, the proof demonstrates that a self-intersection must occur, indicating the presence of inscribed rectangles. This use of Möbius strips showcases topology's power in addressing complex mathematical challenges.

Q: Why is topology important in mathematics?

Topology is important in mathematics because it studies the properties of shapes that remain invariant under continuous transformations. It provides tools for solving complex problems by understanding how shapes can be deformed without tearing. Topological concepts like Möbius strips and Klein bottles are used in proofs to demonstrate the existence of geometric configurations, such as inscribed rectangles in loops.

Summary & Key Takeaways

• The inscribed square problem questions if every closed loop has an inscribed square. Using topology, specifically Möbius strips and Klein bottles, mathematicians have shown that every loop has an inscribed rectangle. These shapes, often seen as mathematical curiosities, are actually logical tools for solving complex problems.

• Topology involves studying shapes and their properties under continuous transformations. The Möbius strip, a fundamental concept in topology, represents unordered pairs of points on a loop. The inscribed rectangle proof uses this concept to demonstrate that any loop contains inscribed rectangles, highlighting topology's problem-solving power.

• The unsolved inscribed square problem is challenging due to rough curves like fractals. Progress has been made for smooth curves, where mathematicians have shown that any loop can have rectangles of every aspect ratio. This involves embedding Möbius strips and Klein bottles into higher dimensions, demonstrating topology's advanced techniques.
