How a film camera superimposes the date onto photos

TL;DR

A detailed teardown of the hardware responsible for superimposing the date on film photographs, revealing a miniature LCD projector powered by an incandescent light bulb.

Transcript

today on Applied Science we're going to take a look at the hardware that superimposes the date on to film photographs this is something I always wondered about as a kid because the print is actually on the negative and so the height of these characters is super tiny and I've never seen an LED display or anything that's this small and as it turns ou... Read More

Key Insights

• 🎥 The date superimpose hardware in film cameras utilizes a compact LCD projector with an incandescent light bulb for projection.
• 🧡 The projection system relies on a mirrored setup and the orange base color of the film to create the date image.
• 🎥 The hardware is separate from the camera body and can be found in various camera models.
• 🦾 Mechanical alternatives for superimposing dates on film photographs exist but are costly and less common.

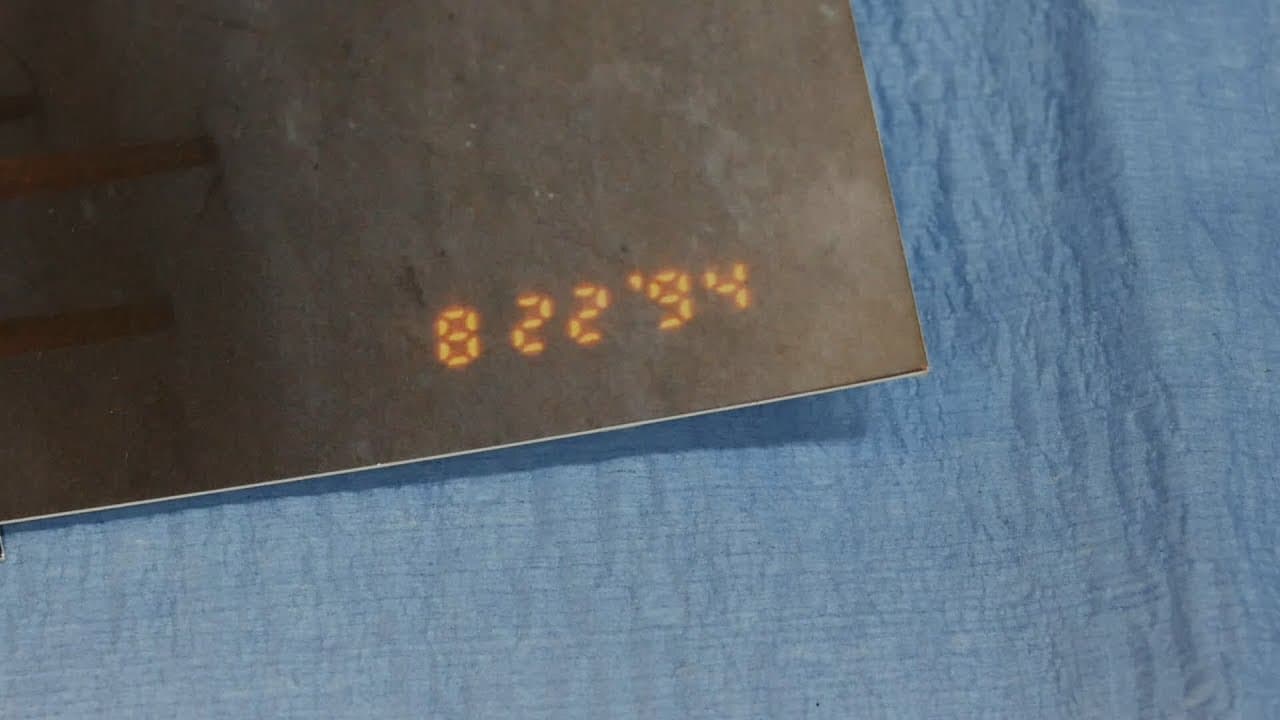

• 🧡 The date appears in orange color due to the orange base color of the film and the projection method used.
• 🔋 The date superimpose hardware is powered by a separate battery within the camera.
• 📽️ The projector creates a shadow puppet-like projection system to achieve a good image transfer onto the film.

Questions & Answers

Q: How does the date superimpose on film photographs?

The date is projected onto the film through a compact LCD projector that uses an incandescent light bulb and a mirrored projection system.

Q: Why is the date always in orange color on film photographs?

The color of the date is influenced by the orange base of the film, which imparts an orange glow when light is projected through it.

Q: Can the superimposed date hardware be replicated using mechanical components?

Yes, the Nikon M f10 camera used a mechanical system with plug-in modules to imprint dates or times onto photos, but it is costly and difficult to find.

Q: What powers the date superimpose hardware?

The date superimposition is powered by a small CR 1025 battery located in the camera, separate from the main power source for the camera's functions.

Summary & Key Takeaways

• The hardware for superimposing the date on film photographs is a compact LCD projector.

• The module is separate from the camera and can be found in various camera models.

• The projector uses an incandescent light bulb and a mirrored projection system to create a date image on the film.
