More info about sputtering: process parameters, chamber construction

TL;DR

This video provides a detailed explanation of setting up a sputter system, including sputter parameters and important details for those interested in building their own system.

Transcript

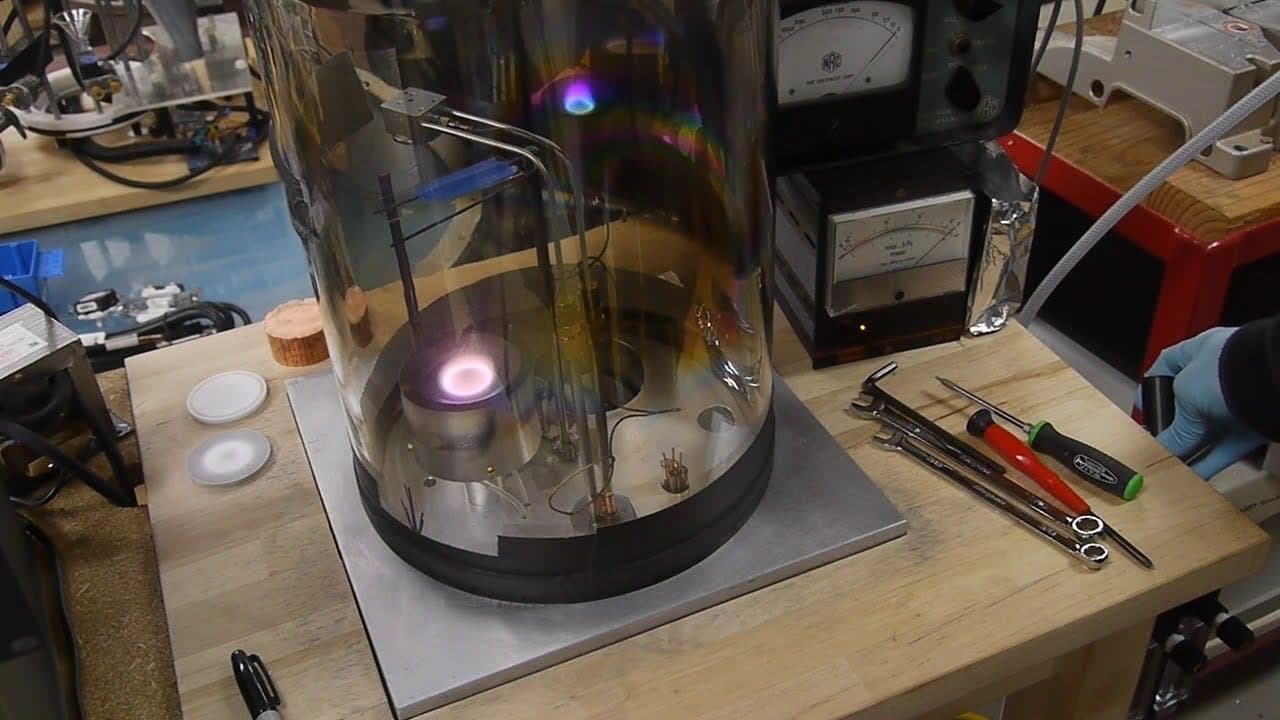

hey guys in previous videos I've talked about sputtering and my vacuum chamber in general but in this video I wanted to spend a little more time talking about the actual sputter parameters and a few more details in case you wanted to set up a similar system of your own for this demonstration I'll sputter some indium tin oxide and as it turned out I... Read More

Key Insights

• 🤕 The sputter system setup requires careful attention to parameters such as sputter head attachment and chamber pumping.
• 🫢 Gas flow and pressure must be balanced for optimal sputtering results.
• ✊ Controlling factors like distance, power, and temperature helps achieve desired coating characteristics.
• 🈸 Sputtering processes can vary, and there is ongoing debate about the ideal parameters for different applications.
• 🈸 Surface resistivity is important in some applications, but may not be critical for others.
• 💇 A cut-down version of a sputter system with minimal equipment is possible for non-magnetron sputtering.

Questions & Answers

Q: What are the necessary steps to set up a sputter system?

To set up a sputter system, you need to prepare the sputter head, attach the sputter shield, pump down the chamber, switch to the diffusion pump, and introduce the desired gas molecules for sputtering.

Q: Why is controlling gas flow important in sputtering?

Gas flow controls the sputtering process by ensuring a fresh supply of gas molecules in the chamber, which helps in washing away byproducts and preventing contamination.

Q: How does the pumping speed affect the sputtering process?

The pumping speed determines the potential to remove gas molecules from the chamber, but it doesn't describe the actual mass removed. Bigger pumps have higher pumping speeds and can remove more molecules.

Q: What are some key factors to consider when sputtering?

Factors such as distance between the sputter target and the substrate, RF power, geometry of the sputter head, substrate and target temperature, gas flow rates, and pressure all play crucial roles in the sputtering process.

Summary & Key Takeaways

• The video discusses the process of sputtering, with a focus on sputter parameters and system setup.

• The presenter demonstrates how to set up a sputter system using indium tin oxide as a demonstration material.

• The video covers topics such as sputter head setup, chamber pumping, gas introduction, and flow rate calculations.
