Design and build a spin coater

TL;DR

A detailed video showing how to design and build a spin coater using low-cost motor controllers and readily available components.

Transcript

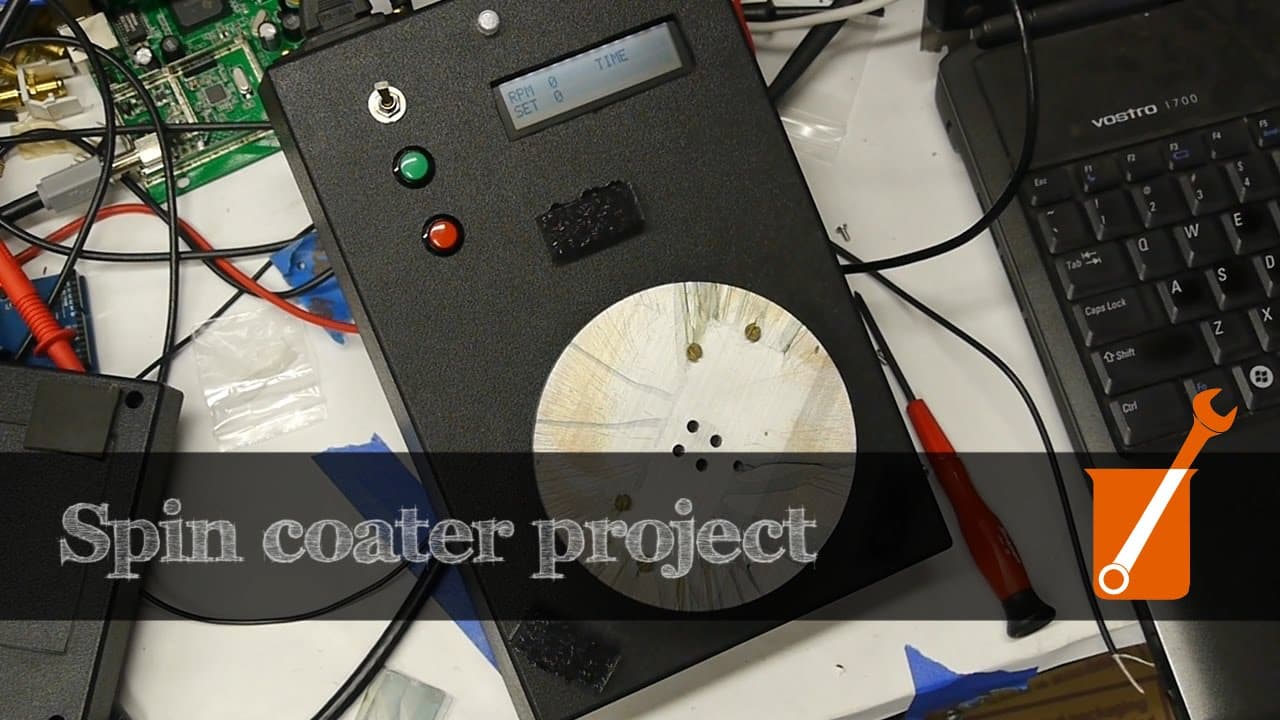

today on applied science I'm going to talk about how I designed and built this spin coater so I'll describe everything I learned about lowcost motor controllers and make all the code and circuitry available in case you have a similar motor-based project so let's see this thing in action uh it's got a rotor here and I've put Flathead brass screws in... Read More

Key Insights

• 🧑‍🦼 The spin coater design utilizes a low-cost quadcopter motor and controller, providing an affordable solution for motor-based projects.
• 🔬 The use of a spin coater allows for a consistent and even coating on microscope slides, useful in various laboratory applications.
• 🎮 The video highlights the importance of motor selection based on speed requirements and the availability of sensors for precise control.
• 🧑‍🦼 The inclusion of regenerative braking in the motor controller adds flexibility to the spin coater's operation.
• 🎮 Modifications to the firmware can enable advanced control features and integration with other systems.
• 😒 The video showcases the use of readily available components and techniques, making the project accessible to DIY enthusiasts.
• 💁 Additional information about the project, including circuit diagrams and code, is available in the video description.

Questions & Answers

Q: How does the spin coater work to create a consistent coating on microscope slides?

The spin coater spins the slide at a high speed, causing the liquid to spread evenly across the surface due to centrifugal force. This results in a consistent coating.

Q: Can the spin coater be used for other applications besides coating microscope slides?

Yes, the spin coater can be adapted for other projects that require a motor-based spinning mechanism, such as painting or applying coatings to other small objects.

Q: What are the advantages of using a low-cost quadcopter motor for the spin coater?

Quadcopter motors are readily available and affordable, making them a cost-effective option for motor-based projects. Additionally, the market for quadcopter motor controllers is well-developed, providing easy access to suitable motor controllers.

Q: Is it possible to modify the motor controller's firmware for additional functionality?

Yes, the video suggests modifying the firmware to allow control of the motor using I2C commands and implement features like regenerative braking. This requires some technical knowledge and programming skills.

Summary & Key Takeaways

• The video demonstrates a homemade spin coater that uses a motor, circuitry, and code to create a consistent and even coating on microscope slides.

• The spin coater operates at different speeds, allowing for precise control of the coating process.

• The motor used in the spin coater is a low-cost quadcopter motor, which provides an affordable and accessible solution for motor-based projects.
