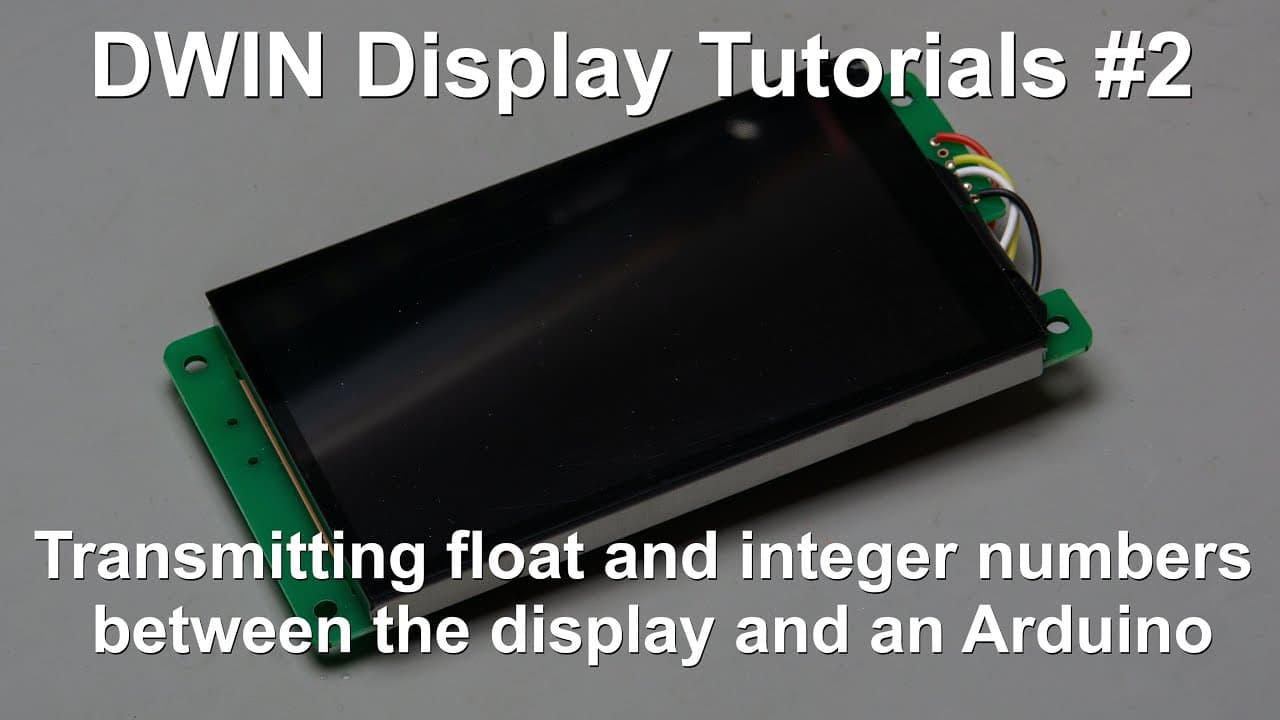

DWIN Display Tutorials #2 - Transmitting float and int numbers between the display and an Arduino

TL;DR

Learn to display integers and floating-point numbers using Arduino and a keypad.

Transcript

welcome everyone in this video I'm going to show you how to display different kind of numbers on a viewing display and this will include integer numbers and floating Point numbers which are received by the display and I will also show you how to create a number on your display using a keypad and then send it to the serial port and I will use an Ard... Read More

Key Insights

• ❓ Configuration of display settings is essential to ensure compatibility and functionality with Arduino.
• ☠️ Selecting the correct baud rate can prevent communication issues and improve data accuracy.
• 👤 Using a keypad for input enhances user interaction and enables real-time data adjustments.
• 🍵 Handling floats in Arduino requires careful consideration of data types and byte ordering for accurate transmission.
• 👨‍💻 Non-blocking code practices are recommended for responsive designs, avoiding delays in readings.
• ❓ The display can showcase both integers and floats, demonstrating versatility in data representation.
• 🫵 Having a well-structured tutorial can aid viewers in grasping complex concepts effectively.

Summary & Key Takeaways

• The video showcases how to set up a display with Arduino, focusing on displaying both integers and floating-point numbers.

• It explains the configuration process for displaying numbers, covering font and picture settings, as well as adjusting baud rates for serial communication.

• The tutorial includes using a keypad for user input of numbers and demonstrates the practical implementation of these concepts in real-time.
