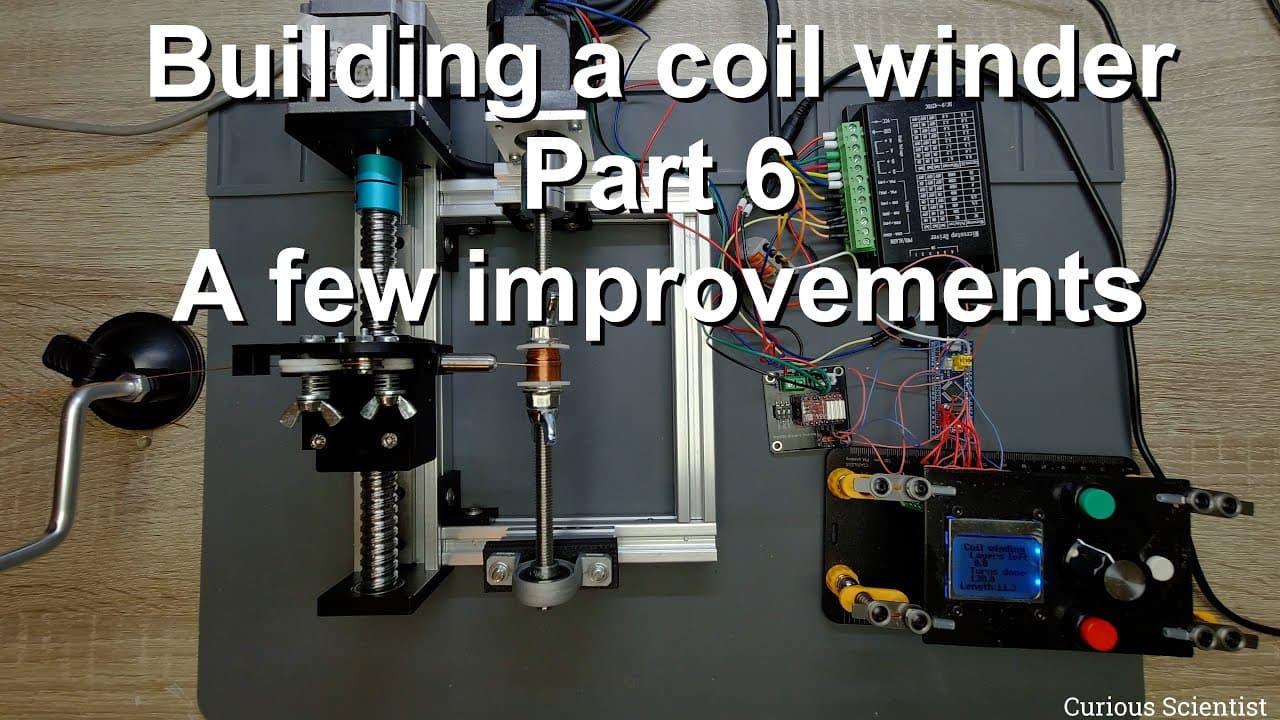

Building a coil winder [Part 6] - A few improvements

TL;DR

This video discusses updates and fixes for the Coilbinder project, improving software and hardware aspects.

Transcript

welcome everyone in this video i'm going to talk about some updates and fixes for my coilbinding project so this is the sixth video of this project and in the previous video i was talking about mainly the mathematics behind the binding and also the coding so i already published the full and more or less working code but there were some bugs or some... Read More

Key Insights

• 🐛 The Coilbinder project is continuously evolving as bugs are fixed and functions are added, showcasing the iterative nature of modern engineering.
• 👤 Effective use of user feedback led to the implementation of new features, highlighting the importance of community involvement in tech projects.
• 💁 The introduction of the ceramic nozzle aims to minimize wire damage and enhance the reliability of coil formation.
• 👤 The auto winding function caters to complex winding needs, reflecting real-world applications and user requirements in the design.
• 💗 The reliance on 3D printed components exemplifies the growing integration of additive manufacturing in DIY projects and small-scale engineering.
• 😀 Continuous testing and modification are essential in optimizing complex systems, as demonstrated by the challenges faced during coil winding.
• 🛟 The video serves as a case study in troubleshooting and adapting engineering projects based on real-time results and feedback.

Questions & Answers

Q: What issues were addressed in the latest update of the Coilbinder project?

The latest update resolved several bugs within the software that affected the winding process. Issues included the motor not stopping correctly when creating half coils and improper layering when winding the wire. Both problems have been fixed to enhance the machine's reliability and user experience.

Q: How does the new ceramic nozzle improve the coil binding process?

The new ceramic nozzle is designed to minimize friction during the winding process, preventing damage to the enamel layer of the wire. Its construction allows for smoother guidance of the wire, thus improving the overall precision and quality of the coils produced.

Q: Can users still access the old source code, and what about the new code?

While the full and functional version of the old code is available, the latest working code has not yet been published due to ongoing fixes and enhancements. Users can expect a future video and update that will include the refined code and added functionalities.

Q: What is the significance of the auto winding feature introduced in this update?

The auto winding feature allows the process to pause at the end of each layer, providing the user an opportunity to apply insulating tape before continuing. This flexibility is crucial for projects, such as transformers, that require multiple insulated layers.

Q: How does the project utilize 3D printing, and what parts are critical?

The Coilbinder project relies heavily on 3D printing for several key components, such as holders, spacers, and the tensioner. These custom parts facilitate the assembly and functioning of the coil binder, demonstrating the project's focus on integrating modern fabrication techniques.

Q: What were some of the challenges faced during the coil winding tests?

During tests, the most notable challenges included the inconsistent diameter of the used wire, which caused winding discrepancies. Additionally, a worn source wire led to complications that disrupted even layering, pointing out the importance of using high-quality, accurately sized components in the design.

Q: How are viewers encouraged to engage with the content and upcoming project developments?

Viewers are invited to stay updated on the project through the creator's website, where they can find resources, the full code, and insights into each phase of the project. Future videos will showcase significant updates and improvements yet to be introduced.

Summary & Key Takeaways

• The video is part six of the Coilbinder project, focusing on bug fixes, software enhancements, and finalizing hardware components as the project nears completion.

• New features include an auto winding function that pauses for user input, enhancing the design's flexibility for different winding scenarios, and a new ceramic nozzle to improve wire handling.

• Viewers are encouraged to check the source code updates and upcoming functionalities that aim to simplify replication of the project.
