Homing with the AccelStepper library and a limit switch | Summary and Q&A

TL;DR

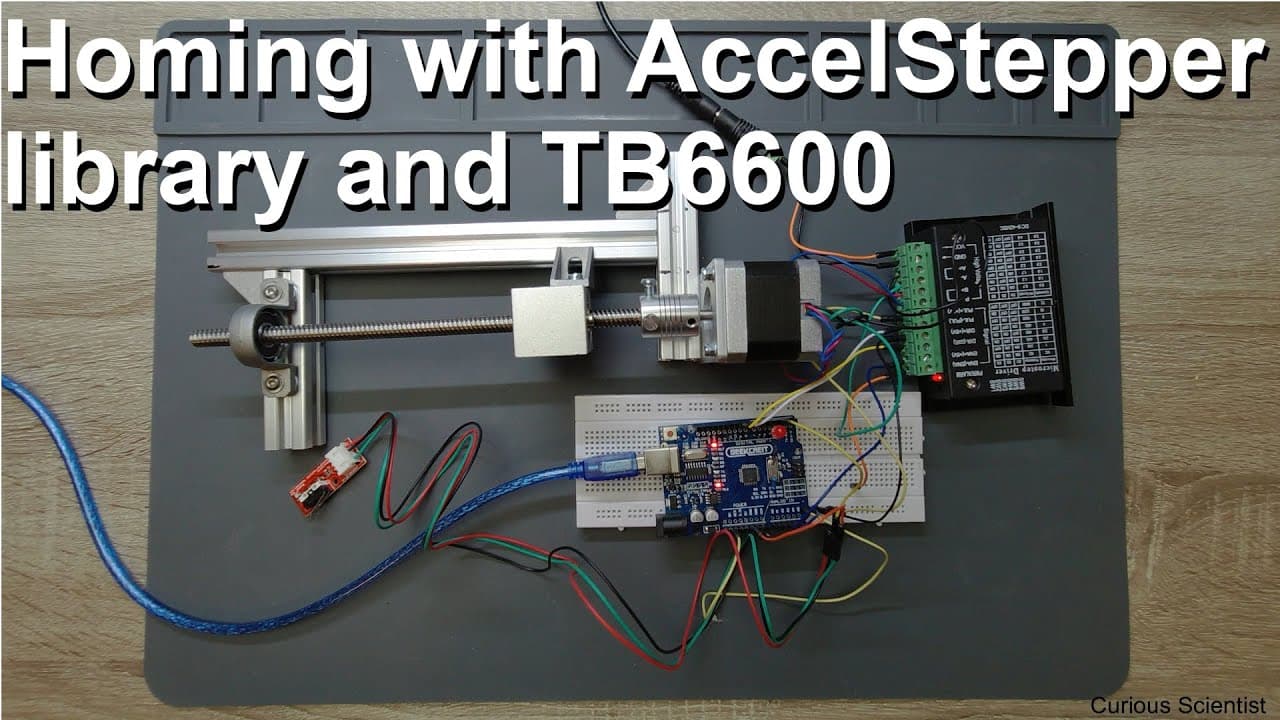

This video demonstrates how to implement a homing solution for a stepper motor using the AccelStepper library.

Key Insights

• 👪 Homing a stepper motor involves a micro switch that defines the home position, improving safety and accuracy for the system.
• 👻 The AccelStepper library is utilized for its simplicity in executing smooth motor movements while allowing for the incorporation of interrupts.
• 🧑‍🦼 Proper setup and connection of the Arduino and motor driver are vital to ensure reliable operation and response from the homing feature.
• 🧑‍🦼 The choice of speed and acceleration settings can significantly impact the performance and safety of the motor operation, especially under load.
• 💄 Implementing an interrupt-driven approach facilitates immediate response to physical triggers like a limit switch, making the setup robust.
• 👨‍💻 The code provided contains crucial sections that determine how the motor behaves during homing and regular operation, which users are encouraged to understand thoroughly.
• ✋ An understanding of inertia is critical when dealing with high speeds or heavy loads to prevent mechanical issues during sudden stops.

Transcript

Read and summarize the transcript of this video on Glasp Reader (beta).

Questions & Answers

Q: What is the main purpose of the homing function in this stepper motor setup?

The homing function is designed to establish a default position for the object being moved by the stepper motor. It acts as a reference point and safety feature by ensuring that the motor stops when a designated micro switch is triggered. This setup prevents the block from colliding with existing mechanical parts, which could otherwise cause damage.

Q: How does the use of an interrupt enhance the homing functionality?

The use of an interrupt allows immediate reaction to the micro switch being pressed. By attaching an interrupt to a specific pin on the Arduino, the code automatically executes the stop motor function when the switch is activated. This real-time response is crucial for maintaining control and preventing mechanical failures during operation.

Q: What are some critical considerations when coding the homing function?

When coding the homing function, it's important to define the speed and acceleration settings carefully to avoid overshooting the desired position due to inertia. Additionally, the direction in which the motor moves and the number of steps specified in the command should ensure that the block reaches the limit switch reliably, particularly as insufficient steps might prevent proper homing.

Q: What suggestions are made regarding hardware setup for this project?

The hardware setup should be meticulously prepared, ensuring that the limit or micro switch is positioned correctly to register the block's movement. The Arduino connections with the TB6600 driver must be correctly made, and the use of internal pull-up resistors for the switch pin in the setup phase is essential for reliable operation.

Q: What potential risks are mentioned about this homing method?

One of the main risks mentioned is that if the micro switch were to fail, the motor could continue moving beyond its intended limit, potentially causing mechanical collisions. The video cautions users to carefully select their speed settings and to consider the implications when working with heavier loads, where inertia could exacerbate the situation.

Q: How does the presenter demonstrate the homing function in the video?

The presenter performs live demonstrations by manually triggering the micro switch as the motor moves the block, showing how the system stops immediately upon contact. Observations regarding noise and movement speeds accompany these demonstrations, providing practical examples of how the code operates in real time.

Q: What is the benefit of using a large distance value in the homing command?

Using a large distance value in the homing command ensures that the block or object will reach the micro switch without falling short. This approach mitigates the risk of erroneously homing and ensures that the motor continues to move until the defined limit is reached, establishing a reliable original position for future movements.

Q: What kind of feedback does the code provide after the motor stops?

The code offers visual feedback through an LED connected to the Arduino, indicating when the motor stops upon pressing the switch. Additionally, messages are printed to the terminal, confirming the action and providing insights into the state of the motor during operation, enhancing the user’s understanding of the system's behavior.

Summary & Key Takeaways

• The video provides a step-by-step guide on implementing a homing function for a stepper motor controlled by an Arduino, using an interrupt-driven approach with a micro switch.

• Emphasis is placed on setting up the system correctly, including hardware connections and code considerations for speed, acceleration, and safety during operation.

• While the solution employs basic programming with the AccelStepper library, caution is advised about potential risks, particularly when dealing with larger loads or higher speeds.
