Resistors in Electric Circuits (4 of 16) Adding Resistors to Series Circuits, Part 1

TL;DR

Adding resistors in series increases total resistance, decreases current, and reduces brightness.

Transcript

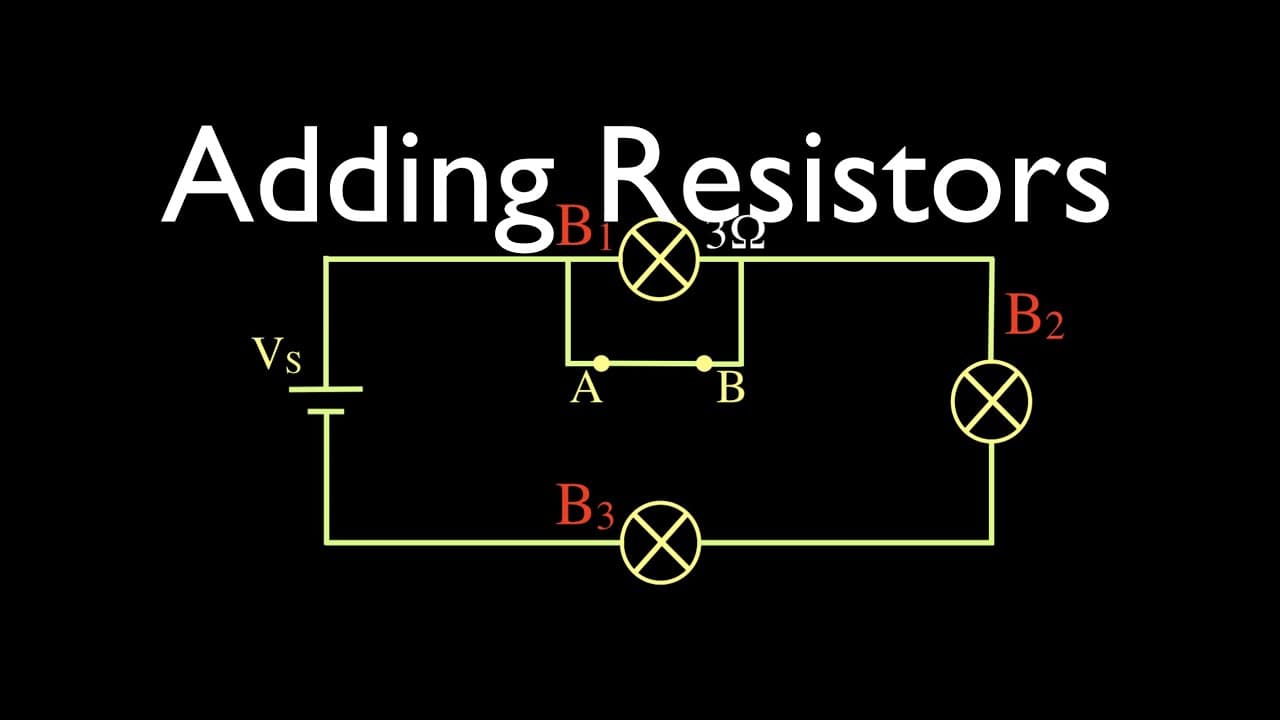

okay in this video we are going to be going over what happens when we add resistors in series and we add an additional resistor to that series circuit what happens to the voltage the current and the brightness of the bulbs now I have another video I made for series resistors and also I made a video for what happens when we add resistors in parallel... Read More

Key Insights

• ❓ Total resistance increases with additional resistors in series.
• 😮 Total current decreases as resistance rises with added resistors.
• 💦 Voltage drop across individual bulbs decreases with more resistors in series.
• ✊ Brightness of bulbs decreases as power output reduces in a series circuit with added resistors.
• ❓ Understanding the impact of resistors in series is crucial for circuit analysis.
• 👮 Ohm's law is essential for calculating current, voltage, and resistance in circuit configurations.
• ✊ Power output and brightness are directly related to current and voltage in electrical circuits.

Questions & Answers

Q: What happens to the total resistance when adding resistors in series?

Adding resistors in series increases the total resistance as it is the sum of individual resistances, causing an overall increase in resistance in the circuit.

Q: How does the total current through the circuit change with the addition of resistors in series?

The total current through the circuit decreases when resistors are added in series as the resistance increases, leading to a decrease in current flow.

Q: Why does the voltage drop across individual bulbs decrease when resistors are added in series?

The voltage drop across individual bulbs decreases because the voltage is split among more resistors when additional resistors are added in series, resulting in a lower voltage drop across each bulb.

Q: How does the brightness of bulbs change when resistors are added in series?

The brightness of bulbs decreases when resistors are added in series, as the power output, which determines brightness, decreases due to the reduced current flow and voltage drop across each bulb.

Summary & Key Takeaways

• Adding resistors in series increases total resistance as it is the sum of individual resistances.

• Total current through the circuit decreases with the addition of resistors in series.

• Voltage drop and brightness of bulbs decrease when adding resistors in series.
