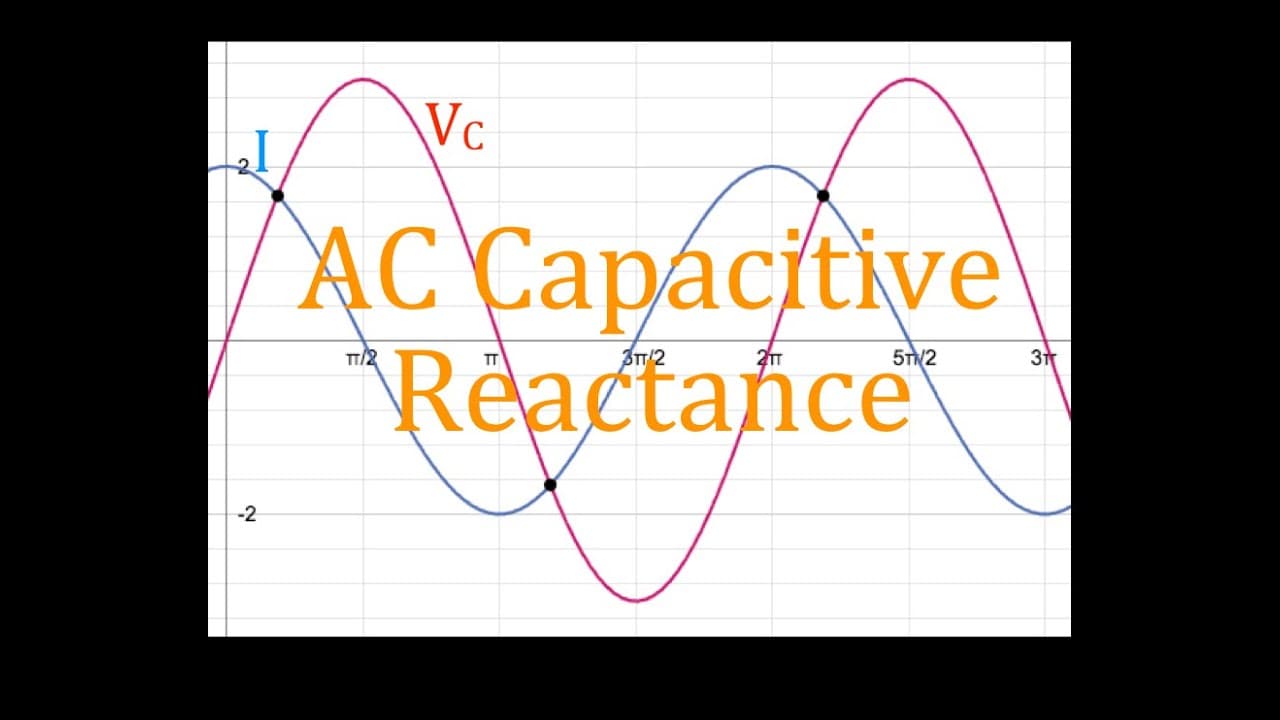

RLC Circuits (4 of 19) Capacitive Reactance; Phase Shift, Phasor Diagrams, Frequency, An Explanation

TL;DR

Explained capacitor reactance in AC circuits, highlighting phase-shift, frequency, and phasor diagrams in under 10 minutes.

Transcript

okay today's video is entitled that's right AC capacitor reactive part one and I'm going to go over in this video phase-shift basic diagrams and the frequency for pure capacitive circuits and all of that in ten minutes or less so let's get started this is the basic circuit circuit dying that we are talking about we have a capacitor we have a voltag... Read More

Key Insights

• ⚡ Capacitive reactance opposes voltage changes in AC circuits.
• ❓ Phasor diagrams visually depict the phase relationship in capacitive circuits.
• 〽️ Frequency inversely affects capacitive reactance, altering the behavior of capacitors.
• 🥺 Current leads voltage by 90 degrees in pure capacitive circuits.
• ❓ Capacitive reactance is calculated using equations involving frequency and capacitance.
• 📭 Capacitors act like short circuits at high frequencies and open circuits at low frequencies.
• ❓ Understanding phase-shift and frequency is crucial for analyzing capacitive behavior.

Questions & Answers

Q: What is capacitive reactance in an AC circuit?

Capacitive reactance is the opposition to voltage changes in a circuit due to a capacitor, resulting in a 90-degree phase difference between voltage and current.

Q: How are phasor diagrams used to represent capacitive circuits?

Phasor diagrams visually illustrate the phase relationship between voltage and current in capacitive circuits, showing the 90-degree phase lead of current over voltage.

Q: How does frequency affect capacitive reactance?

Capacitive reactance is inversely proportional to frequency, with higher frequencies leading to decreased reactance and lower frequencies leading to increased reactance in a capacitor.

Q: Why does the current lead the voltage by 90 degrees in capacitive circuits?

The capacitance in a circuit causes the current to lead the voltage by 90 degrees due to the fundamental properties of capacitors reacting to changes in voltage.

Summary & Key Takeaways

• Capacitive reactance in AC circuits opposes voltage changes, leading to phase-shift between voltage and current.

• Phasor diagrams visually represent the 90-degree phase lead of current over voltage in capacitive circuits.

• Capacitive reactance is inversely proportional to frequency, affecting the resistance behavior of capacitors in circuits.
