High-performance 3-axis stepper motor controller | Summary and Q&A

TL;DR

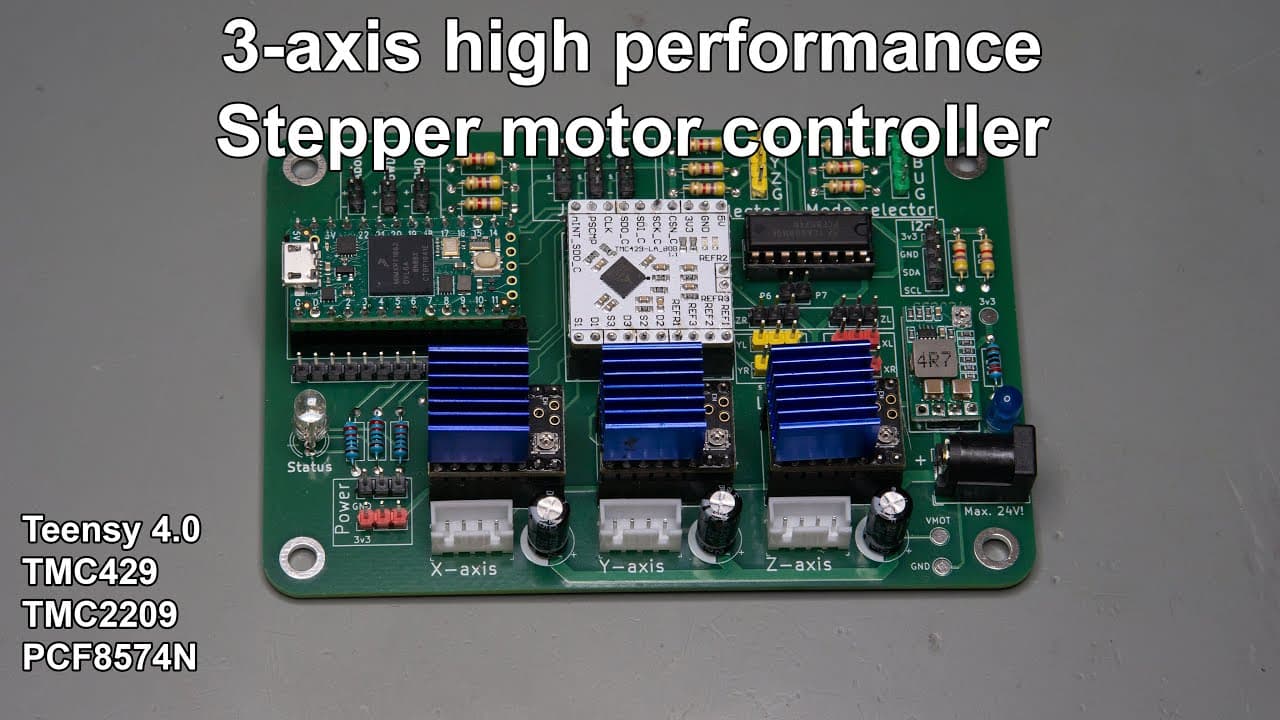

Introducing a high-performance PCB for a 3-axis stepper motor driver.

Key Insights

• ✋ The project focuses on creating a high-performance PCB for a 3-axis stepper motor driver tailored for robotics and automation applications.
• 😒 The use of the TMC 429 ramp generator alleviates processing demands on the microcontroller by handling signal generation for motor drivers.
• 🎨 The design accommodates compatibility with both original and budget driver models, enhancing flexibility in component selection.
• 😒 A strong emphasis on design considerations, such as the use of GPIO expanders, improves the complexity and usability of the controller.
• 🎮 The video illustrates the iterative design process, including the need for testing and troubleshooting in electronics projects.
• 👫 Clear visual feedback through the status LED provides immediate insight into the operation and state of the system.
• 🏛️ The creator's commitment to providing educational content promotes better understanding and skill-building in the area of electronics and programming.

Transcript

Read and summarize the transcript of this video on Glasp Reader (beta).

Questions & Answers

Q: What is the primary purpose of the PCB designed in the video?

The PCB's primary purpose is to serve as a high precision, three-axis stepper motor driver, allowing users to control 3D printing mechanisms, CNC machines, or other robotic systems that require fine motor control. The design features a microcontroller and dedicated driver circuits that manage the operation of the motors through command inputs.

Q: Which components are critical to the functionality of the stepper motor driver board?

Key components include the TMC 429 ramp generator, which generates step and direction signals for the TMC 2209 drivers, and the TZ4 microcontroller, which controls the overall function and communication between various parts. Limit switches and GPIO expanders also play crucial roles in function and safety during operation.

Q: How does the microcontroller interact with the stepper motor drivers?

The microcontroller communicates with the TMC 2209 stepper motor drivers through SPI connections, offloading the task of generating step and direction signals. This allows for efficient motor operation and the ability to control multiple motors simultaneously, making it suitable for complex applications like 3D printing or CNC milling.

Q: What challenges did the creator face during the PCB design process?

One significant challenge encountered was a mix-up with the SDA and SCL pins for I2C communication, which required breaking traces on the PCB for correction. This highlighted the need for careful planning and testing in PCB design to ensure all connections function as intended for reliable operation.

Q: What benefits do the provided services from PCBWay offer for PCB manufacture?

PCBWay offers comprehensive services including PCB fabrication, assembly, and parts sourcing, making it a convenient option for hobbyists and professionals alike. Users benefit from a streamlined process that can reduce the time and complexity involved in bringing their electronic designs to life.

Q: How does the joystick and button interface work in this project?

The joystick provides a manual control interface for navigating the X, Y, and Z axes by sending analog signals to the microcontroller. The buttons serve as additional controls for movement, allowing for precise adjustments during operation, with the status LED indicating active commands and system states.

Q: Why is the status LED significant in the design of the PCB?

The status LED provides immediate feedback on system operation, indicating different states such as standby, active movement, or error conditions. This visual indicator helps users monitor the system's performance and quickly identify issues that may arise during operation.

Q: What will future videos in this series cover?

Future videos are expected to delve deeper into the programming and functionality of the stepper motor driver, including detailed coding aspects, troubleshooting tips, and potential applications. The creator aims to provide a comprehensive resource for users interested in replicating or building upon this project.

Summary & Key Takeaways

• The video outlines the development of a custom-designed PCB intended for a high precision 3-axis stepper motor driver, showcasing the components used and their functionalities.

• The project emphasizes the importance of compatibility with different driver models and the ease of integrating components like GPIO expanders for enhanced control features.

• The creator encourages viewers to subscribe for a series of videos detailing the assembly and programming of the stepper motor driver, which aims to facilitate various applications in robotics and automation.
