Analyze Simply Supported Beam with Point and Uniform Moment

TL;DR

This lecture discusses point and uniform moments in simply supported beams and provides examples and instructions on how to analyze and model them.

Transcript

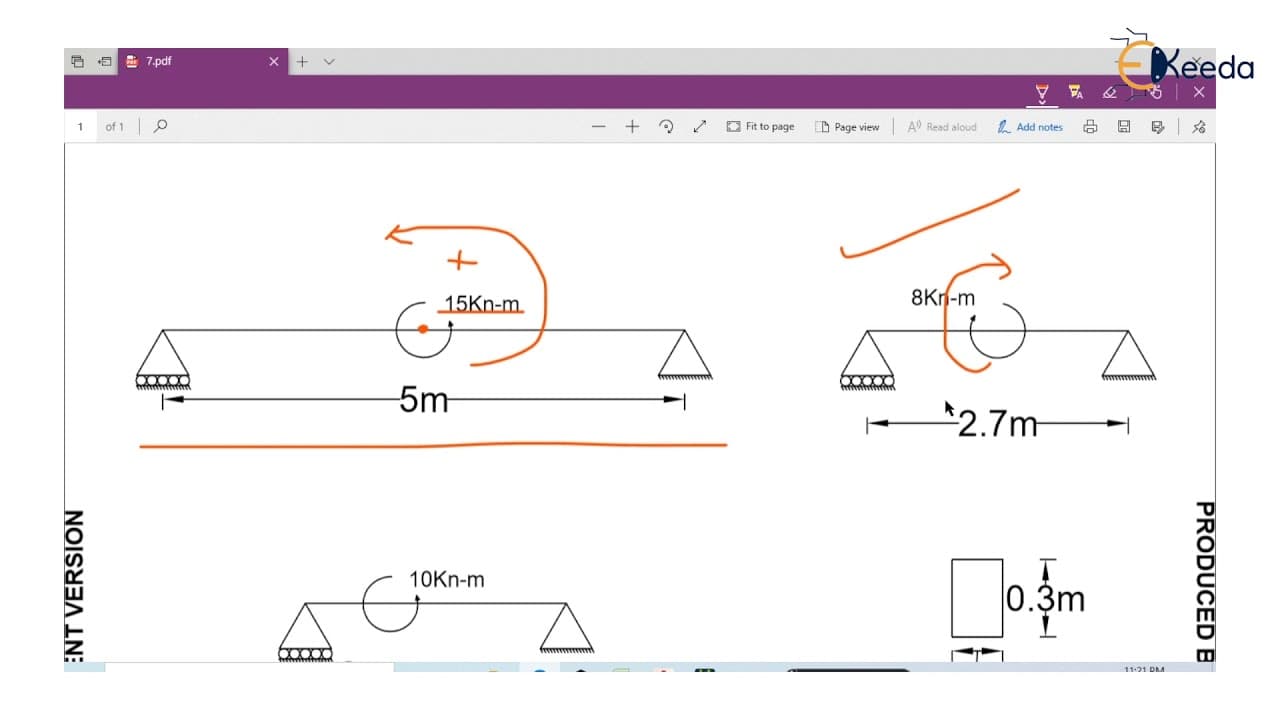

hey guys welcome back in this lecture we will learn about point and uniform moment in simply supported beam open new project plane provide a name location length unit is meter and force unit is kilo Newton go to next and finish take a front view look at this figure a 5 meter length beam a 5 meter length beam and point movement at a center of beam i... Read More

Key Insights

• 😁 Point and uniform moments are important concepts in analyzing simply supported beams.
• 😁 Creating a beam model in a software program involves specifying various parameters like location, length, and force unit.
• 🔃 Both clockwise and anti-clockwise moments can be applied to beams, and their direction affects the sign of the moment value.
• 😁 Analyzing a beam model provides valuable information about its behavior, including deflection, bending moment, shear force, and reaction forces.
• 😁 Different types of support conditions, such as pin support and fixed support, can be assigned to the beam model.
• ⚖️ The scale of the moment can be adjusted to visualize the results properly.
• 😁 Uniform moments are distributed along the entire length of the beam, while point moments are concentrated at specific locations.

Questions & Answers

Q: What is a simply supported beam?

A simply supported beam is a type of structural element that is supported at each end and is free to rotate and undergo vertical deflection.

Q: How can you create a beam model in the software program?

To create a beam model, you need to specify the name, location, length, and force unit. Then, you can define the properties of the beam, such as its length and material. Finally, you can assign support conditions and apply loads.

Q: What is the difference between a point moment and a uniform moment?

A point moment is a concentrated moment applied at a specific location on the beam, while a uniform moment is a distributed moment applied along the entire length of the beam.

Q: How do you analyze the beam model?

After creating the beam model, you can analyze it by running an analysis in the software program. This will generate results such as deflected shape, bending moment diagram, shear force diagram, reaction forces, and displacement.

Summary & Key Takeaways

• The lecture explains the concept of point and uniform moments in simply supported beams.

• It provides instructions on how to create and analyze a beam model in a software program.

• The lecture includes examples of both clockwise and anti-clockwise moments applied to beams of different lengths.
