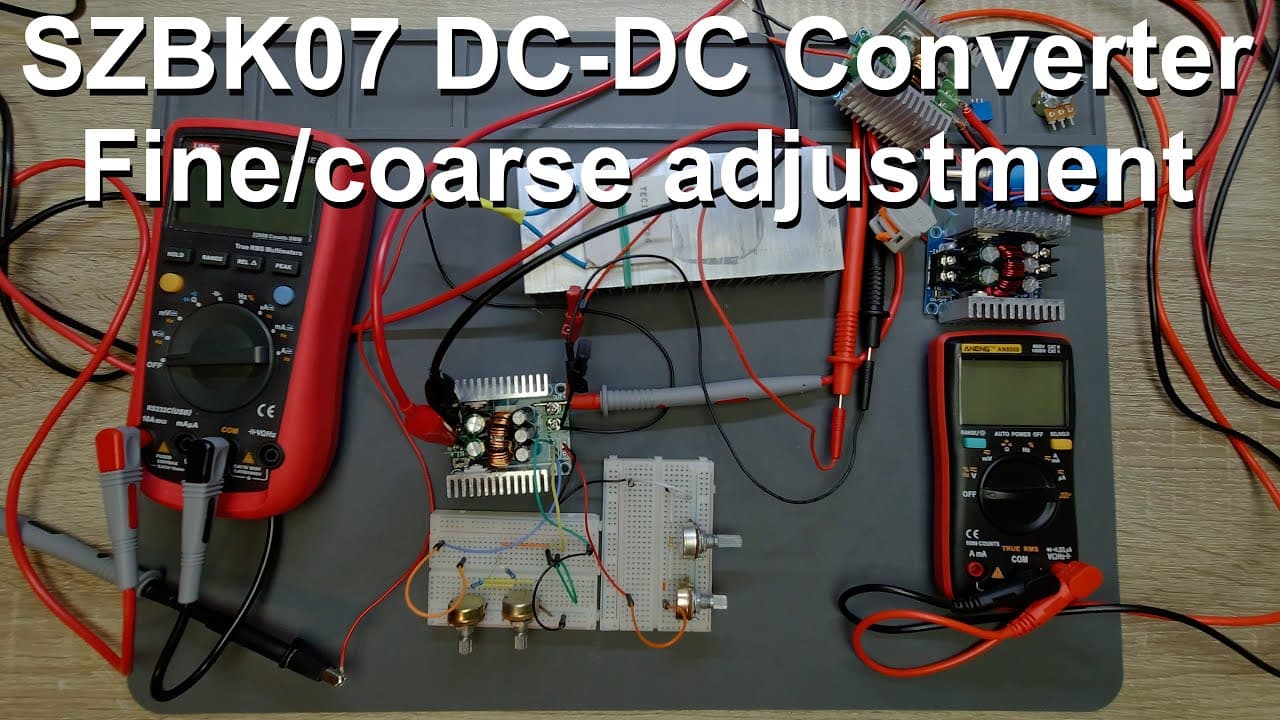

Fine/Coarse potentiometer arrangement for the SZBK07 DC-DC converter

TL;DR

This video demonstrates modifications for precise control of an SPK-07 DC-DC converter using potentiometers.

Transcript

welcome everyone in this video i'm going to show you another modification for the spk-07 dc-dc converter so this dc-dc converter has been on my channel for quite a while i made a lot of videos with it especially in for its modification so this dc-dc converter can be controlled by two potentiometers like these tiny box shaped ones and i have already... Read More

Key Insights

• 🎮 The SPK-07 DC-DC converter can be effectively modified for precision output control using multi-turn potentiometers.
• 👤 A dual potentiometer setup improves user experience by providing both coarse and fine adjustment capabilities, facilitating precise voltage and current settings.
• 👤 Utilizing precision potentiometers can minimize user error and enhance circuit stability during operations.
• 🥺 Feedback and community interaction through comments have led to practical solutions and ideas for improving the modifications.
• 🐕‍🦺 PCB Way offers additional services apart from PCB manufacturing, which could be valuable to electronics enthusiasts.
• 🚱 Non-linear behaviors of potentiometer configurations require careful experimentation for optimal performance.
• 🥳 Sourcing components from online platforms can significantly reduce costs for quality parts.

Questions & Answers

Q: What is the main purpose of the modifications discussed in the video?

The primary purpose of the modifications is to enhance the control over the output voltage and current of the SPK-07 DC-DC converter. By implementing two potentiometers for both coarse and fine adjustments, users can achieve precise regulation, making it easier to set the desired output parameters without hassle.

Q: Why are precision potentiometers recommended over cheaper alternatives?

Precision potentiometers provide more accurate control over output settings, allowing for subtle adjustments that cheaper alternatives may not offer. Although some viewers perceive these components as expensive, they can be sourced affordably from online platforms, providing a valuable upgrade for better performance.

Q: Can you explain how the coarse and fine potentiometers work together?

The coarse potentiometer is designed to adjust a wide range of voltage or current, while the fine potentiometer allows for smaller, more precise adjustments within a specific range. This dual setup enables greater flexibility and accuracy in tuning the output of the DC-DC converter according to specific needs.

Q: What challenges are associated with using two potentiometers in this setup?

A challenge with this configuration is the non-linear interaction between the potentiometers. Depending on their settings, one potentiometer can affect the response of the other, making it crucial to calibrate and practice to achieve the desired results accurately.

Q: What advice is given for using the new potentiometer circuit?

Users are encouraged to experiment and become familiar with the adjustments of both potentiometers to understand their interaction better. Empirical testing will help users fine-tune the settings on their DC-DC converter while monitoring output voltage and current effectively.

Q: How does the video suggest users manage heat generated by the components?

To optimize the performance and safety of the DC-DC converter during operation, the video advises powering down the system when not in use to cool down the heatsinks, especially after extensive adjustments that may generate additional heat.

Summary & Key Takeaways

• The video provides a detailed explanation of modifying the SPK-07 DC-DC converter using potentiometers to control output voltage and current effectively.

• It discusses the advantages of using multi-turn precision potentiometers over regular ones for finer adjustments and easier handling under power.

• Viewers are encouraged to visit the creator's website for additional resources, drawings, and specifications related to the circuit modifications and potentiometer setups.
