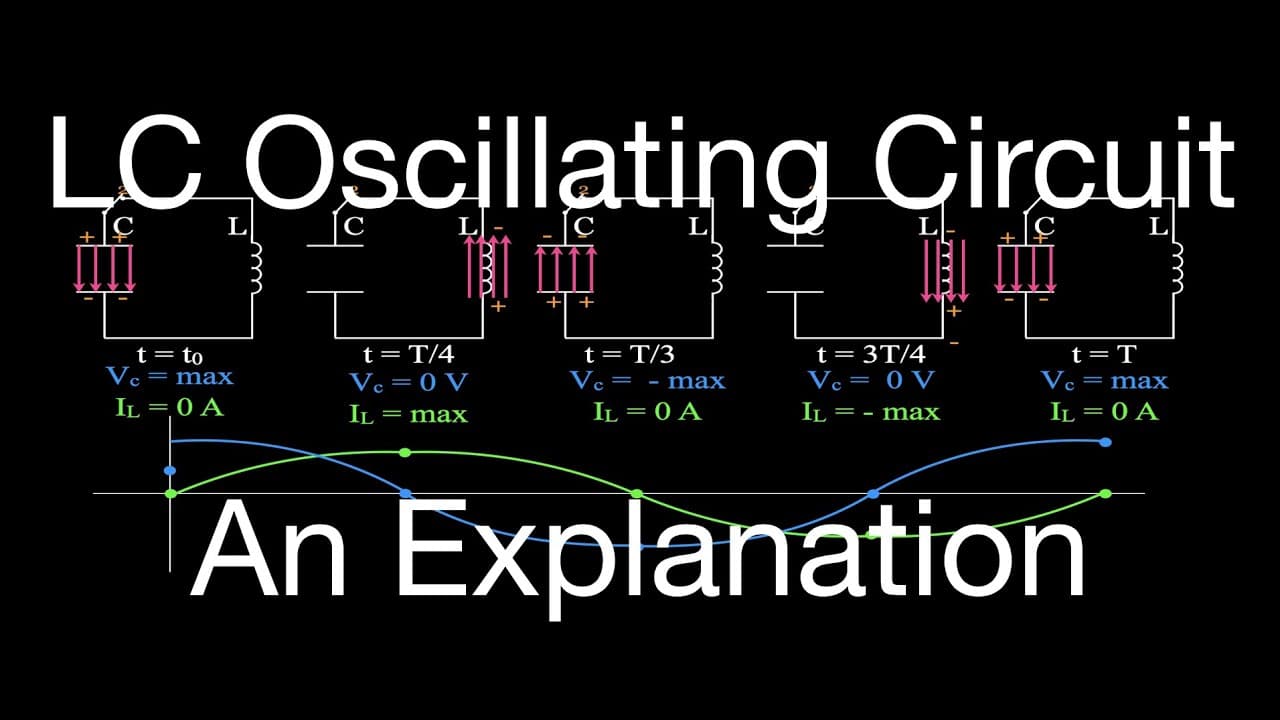

What Is an LC Oscillating Circuit and How Does It Work?

TL;DR

An LC oscillating circuit consists of a capacitor and an inductor connected to a DC voltage supply. It operates by charging the capacitor, then oscillating energy between the capacitor's electric field and the inductor's magnetic field, creating a continuous cycle of charging and discharging. This process can be analyzed to determine the circuit's period, frequency, and energy conservation.

Transcript

in today's video we are going to go over step by step how an lc oscillating circuit functions now before i do that please don't forget to subscribe to my channel step by step science get all maximum physics chemistry math videos when i look at my youtube analytics i see that more than 90 of people who watch my videos have not subscribed please subs... Read More

Key Insights

• 🖖 LC oscillating circuits comprise a capacitor, inductor, and DC voltage supply.
• 🏑 Energy oscillates between the electric field of the capacitor and the magnetic field of the inductor.
• 🈂️ The process of oscillation involves charging, discharging, and converting energy between the capacitor and inductor.
• ❓ The period, frequency, and energy of the circuit can be calculated using specific formulas.
• 🖖 Conservation of energy is crucial in ideal LC oscillating circuits.
• 🖐️ The switch plays a vital role in transitioning between charging and discharging the capacitor.
• ⚡ Graphical representations can visually display the voltage and current oscillations in the circuit.

Questions & Answers

Q: What components make up an LC oscillating circuit?

An LC oscillating circuit consists of a capacitor, inductor, and a DC voltage supply to charge the capacitor before oscillation begins.

Q: How does energy transfer between the capacitor and inductor in an LC circuit?

Energy is initially stored in the capacitor's electric field, then transferred to the inductor's magnetic field as the capacitor discharges and current flows through the circuit.

Q: What role does the switch play in the functioning of an LC oscillating circuit?

The switch is used to transition the circuit from charging the capacitor to discharging it, allowing energy to oscillate between the capacitor and inductor.

Q: How can the period, frequency, and energy of an LC oscillating circuit be calculated?

The period can be calculated using the formula 2π√(LC), frequency is the inverse of the period, and energy is calculated as a combination of stored energy in the capacitor and inductor.

Summary & Key Takeaways

• LC oscillating circuits consist of a capacitor, inductor, and DC voltage supply.

• The circuit begins by charging the capacitor, then energy oscillates between the capacitor and inductor.

• The oscillation process involves converting energy from the electric field of the capacitor to the magnetic field of the inductor.
