How Does a Giant Air Horn Shatter Glass?

TL;DR

A flared horn makes sound louder by matching the solid diaphragm more effectively to the surrounding air, conserving sound that would otherwise reflect or transfer poorly. The giant horn remained clearly audible from two and a half miles away, produced an 11-second sound delay at that distance, and shattered glass when the glass's natural frequency was adjusted to match the horn.

Transcript

• Why do horns and musical instruments have this flared shape? To answer this question, about a year ago, I decided I would take this, and scale it up to this. And I've never actually made something this big for my channel before. So as usual, we decided to make a smaller prototype model to see what we could learn about the challenges that would co... Read More

Key Insights

• Sound is a pressure wave created when vibrating objects produce a chain reaction of collisions among air molecules. Those collisions eventually move the listener's eardrum back and forth at the same rate as the original vibrating source.
• Pitch is determined by how frequently the pressure-wave collisions occur. A diaphragm striking nearby air molecules frequently is perceived as producing a high pitch, while less frequent motion and collisions are perceived as producing a low pitch.
• The horn's sound source is a thin circular metal diaphragm driven by air entering at 100 PSI. The airflow makes the diaphragm vibrate 110 times per second, producing a corresponding pressure wave that travels through the horn's throat.
• A flared horn is an impedance-matching device that improves the interface between a strong, solid diaphragm and comparatively weak air. Its increasing cross-sectional area allows the diaphragm's motion to push effectively against a much larger volume of air at the outlet.
• The horn's curved section conserves sound rather than adding power to it. Because this section has no battery or electrical connection, its louder result comes from transferring existing sound energy into the surrounding air more effectively.
• A gradual curve reduces sound waves reflecting toward the source when the horn's cross-sectional area changes. A sudden transition, including where a straight cone opens into free air, creates reflected waves and wastes energy that could otherwise move forward.
• The giant horn remained clearly audible from two and a half miles away. At that distance, the team heard the walkie-talkie transmission first and the physical horn sound 11 seconds later, demonstrating that the pressure wave required time to travel through the air.
• Glass can be shattered by repeatedly applying pressure at its natural frequency or a multiple of that frequency. The team measured the glass with an accelerometer, then added weights in suitable locations to change its natural frequency until it matched the horn.

Questions & Answers

Q: Why do musical horns have a flared curved shape?

Musical horns use a flared curve to improve impedance matching between a solid vibrating diaphragm and the surrounding air. A small diaphragm does not push effectively against weak air across a limited area. The horn gradually expands that interface, allowing the existing pressure wave to move a much larger area of air at the outlet while reducing energy reflected toward the source.

Q: Does a horn add power when it makes sound louder?

A horn's curved section does not add power to the sound. It is passive and has no battery or electrical plug supplying extra energy. Instead, it conserves more of the source's sound by matching the diaphragm to the air more effectively. This improved interface produces a stronger chain reaction of molecular collisions and moves the listener's eardrum more vigorously.

Q: How does the giant air horn produce sound?

The giant horn receives air at 100 PSI. That air passes around a thin circular metal plate called a diaphragm and makes it vibrate 110 times every second. Each vibration creates a corresponding pressure disturbance that exits through the source and travels down the horn's throat, where the expanding curved shape transfers the sound into a larger area of surrounding air.

Q: How does sound travel from a horn to the ear?

A vibrating horn diaphragm pushes nearby air molecules, which collide with other molecules in a continuing chain reaction. When that pressure wave reaches the listener, molecules in the ear canal push against the eardrum. The eardrum moves back and forth at the same rate as the original diaphragm, and the brain interprets this repeated motion as sound.

Q: How far away could the giant horn be heard?

The giant horn was heard at several increasing distances. It was clearly audible about two football fields away and remained completely audible at roughly one mile. At the final location, two and a half miles from the horn, it could no longer be seen with the naked eye, yet its sound still arrived clearly after an 11-second delay.

Q: How was the speed of sound tested with the giant horn?

The team stood two and a half miles from the horn and coordinated the firing over a walkie-talkie. They first heard the horn through the radio connection, then waited for its physical pressure wave to cross the distance. A stopwatch measured 11 seconds between those events, providing the distance and travel-time observations needed for a speed calculation.

Q: How can an air horn shatter glass?

An air horn can shatter glass when its repeated pressure pulses align with the glass's natural frequency or a multiple of that frequency. Each correctly timed pulse adds to the glass's motion, like small, synchronized pushes making a swing rise higher. In the experiment, the resulting accumulation of vibration became strong enough to break the glass.

Q: How did the team match the glass to the horn's frequency?

The team's method began with measuring the glass's natural frequency using an accelerometer. The horn needed to fire at that exact frequency or at a multiple of it for the vibrations to accumulate effectively. Rather than changing the horn, the team added weights at suitable positions on the glass, changing its natural frequency until it matched the horn and shattered.

Summary & Key Takeaways

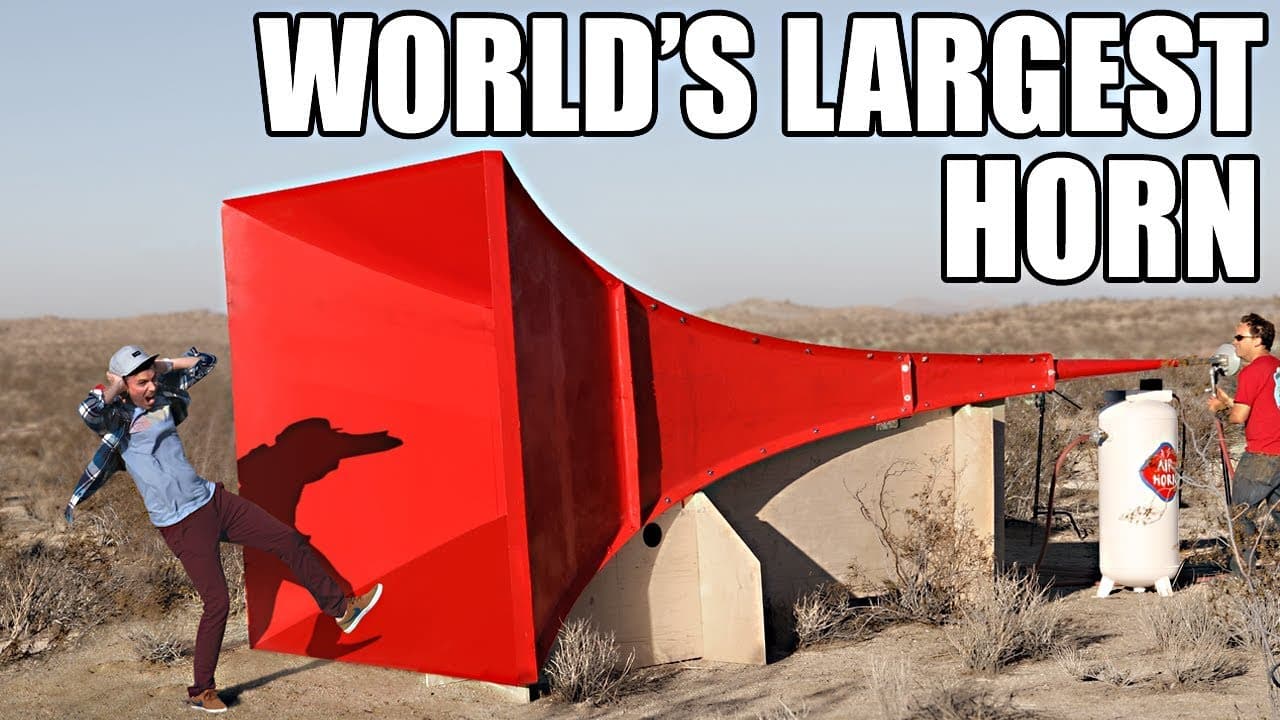

• A smaller fiberglass prototype demonstrated that a curved horn makes voices, including whispers, easier to hear than either an uncovered voice or a simple tube. The full-size version was then constructed with the same principles and assembled at a remote location after eight months of work, before being fired for the first time.

• The horn's sound source uses air at 100 PSI to make a thin circular metal diaphragm vibrate 110 times per second. That motion generates a pressure wave through the air. The curved horn improves energy transfer by gradually matching the diaphragm's small, strong motion to a much larger area of surrounding air.

• Distance tests showed that the enormous horn could be heard about two football fields away, one mile away, and clearly at two and a half miles. At the farthest test point, sound arrived 11 seconds after the walkie-talkie signal. The team then matched glass resonance to the horn and shattered it.
