What Happens When You Add Resistors in Series?

TL;DR

Adding resistors in series increases the total resistance of the circuit, which decreases the overall current flowing through it. This results in a lower voltage drop across each bulb, dimming their brightness. With each added resistor, the effective voltage is split further, leading to a notable drop in each bulb's illumination.

Transcript

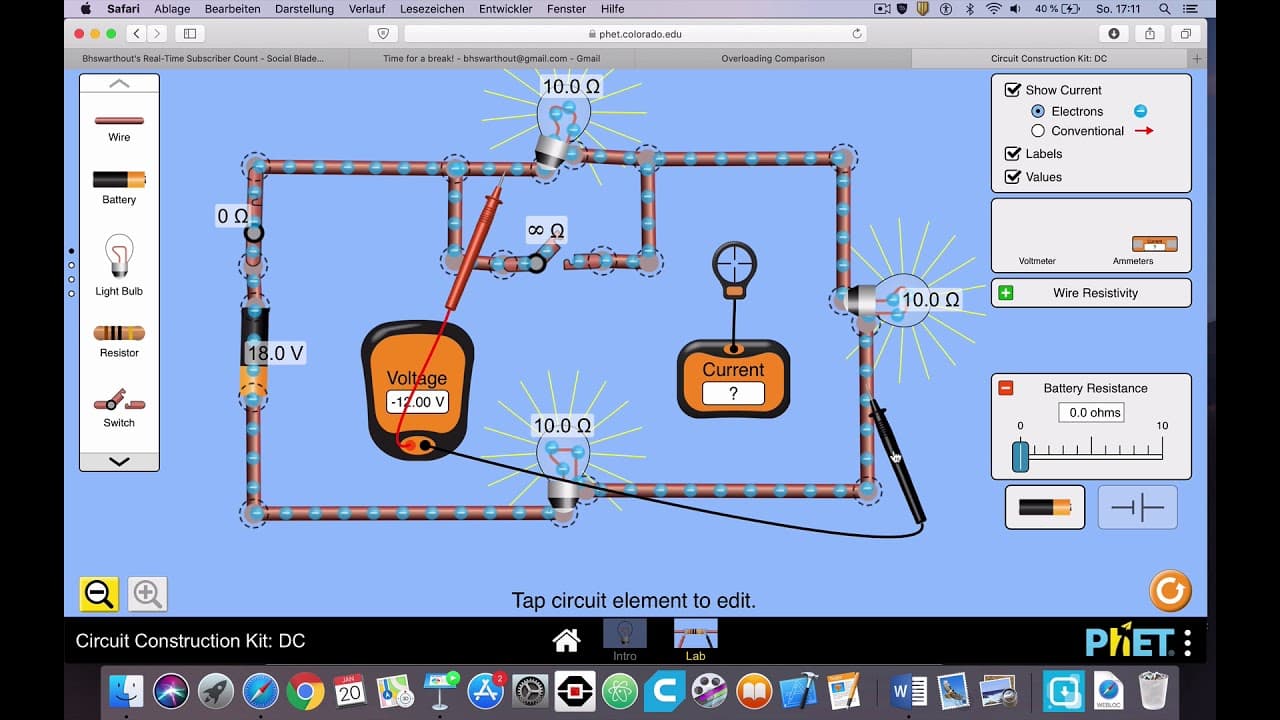

okay hello today the goal for today's video is to determine what happens to the total resistance the total current and the current through the bulbs the voltage across the bulbs and the brightness of the bulb so we add a resistor in series to a series circuit and we're gonna do this with one of the phtt simulations they have excellent simulations I... Read More

Key Insights

• 🪜 Adding a resistor in series increases total resistance in the circuit.
• 🪜 Current decreases when a resistor is added in series due to the relationship between current and resistance.
• ⚡ Voltage drop across bulbs decreases with an additional bulb in series, splitting the total voltage.
• 💡 The current through each bulb decreases when an extra resistor is added in series.
• ⚡ Bulb brightness decreases as both current and voltage decrease with an added resistor in series.
• 🎮 Understanding the impact of resistors in series helps in controlling circuit characteristics effectively.
• ⚡ Series circuits present changes in resistance, current, and voltage distribution with added resistors.

Questions & Answers

Q: How does adding a resistor in series affect total resistance in a circuit?

Adding a resistor in series increases the total resistance of the circuit, as resistors in series simply add up in value, leading to a higher overall resistance in the circuit.

Q: Why does current decrease when a resistor is added in series?

Current decreases when a resistor is added in series because of Ohm's law, where current is inversely proportional to resistance. As resistance increases, current decreases accordingly.

Q: What happens to the voltage drop across bulbs when an additional resistor is added in series?

The voltage drop across bulbs decreases when an additional resistor is added in series because the total voltage is split among more resistors, resulting in a lower voltage drop across each bulb.

Q: How does the brightness of bulbs change when a resistor is added in series?

The brightness of bulbs decreases when a resistor is added in series because both current and voltage across the bulbs decrease, leading to lower power consumption and reduced brightness.

Summary & Key Takeaways

• Adding a resistor in series circuit increases total resistance, decreasing current flow.

• The voltage drop across bulbs decreases with an additional bulb in series.

• Bulb brightness decreases as both current and voltage across the bulbs decrease.
