How to Connect Peltier Coolers in Series or Parallel?

TL;DR

To connect Peltier coolers effectively, use series connections for voltage division, increasing the total voltage by summing the needs of each cooler. In contrast, parallel connections allow all units to experience the same voltage while increasing the overall current based on the number of coolers. Understanding these configurations helps optimize cooling performance and efficiency.

Transcript

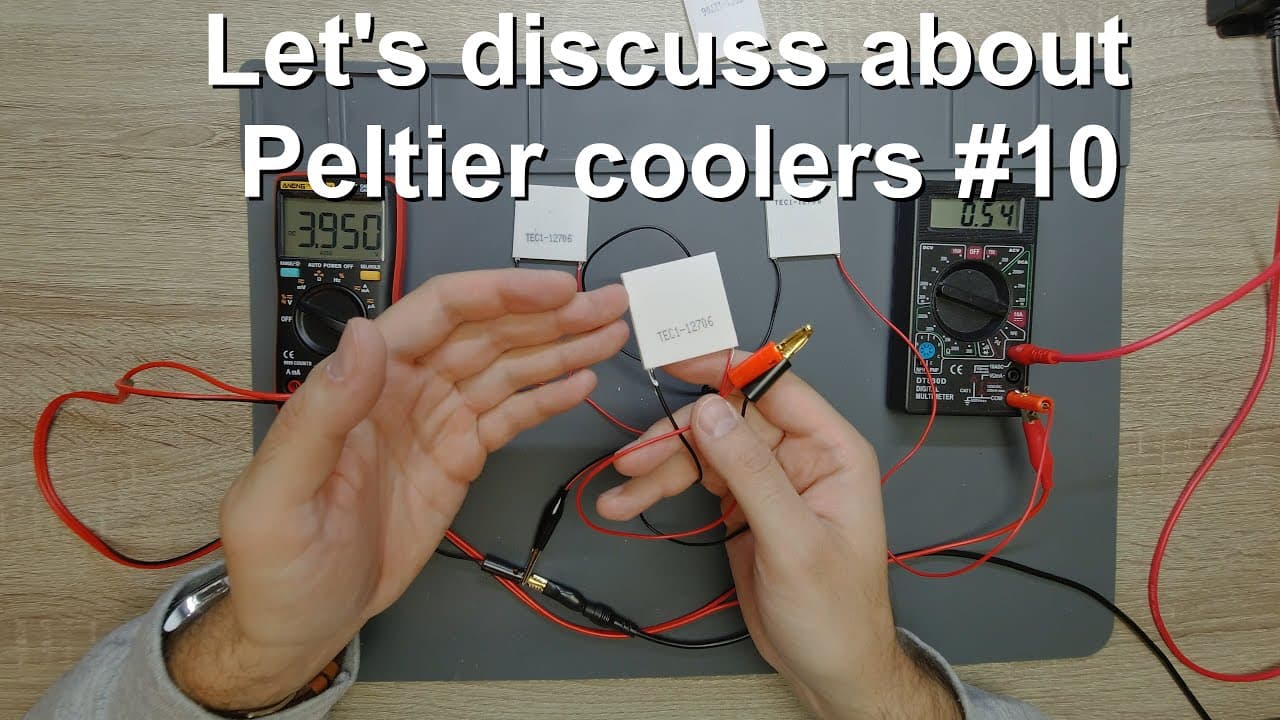

welcome everyone in this video we are going to discuss about 5 coolers again so what i have here is three different multimeters and four hopefully identical patient coolers these are all the tec-12706 units so six ampere units and as i said we have uh four of them and what i will try to demonstrate to you is that how we can connect them in series a... Read More

Key Insights

• ⚡ Connecting Peltier coolers in series results in voltage division, requiring the total voltage to equal the sum needed for each individual cooler.
• ⚡ When coolers are connected in parallel, they all experience the same voltage, but the overall current increases according to the number of units connected.
• ⚡ The video provides a clear visual demonstration of the changes in voltage and current across various configurations, making it more digestible.
• 🥺 Users must be cautious about the specifications of Peltier coolers to prevent operating them above their rated limits, which could lead to damage or reduced efficiency.
• ⚡ The presenter emphasizes the importance of understanding Ohm's Law when calculating the necessary voltage and current for specific configurations.
• 😎 Practical applications of the cooling systems are discussed, highlighting how users can tailor connections to meet specific cooling needs effectively.
• 👻 Mixing series and parallel connections can optimize performance when dealing with multiple units, allowing for better control over temperature and efficiency.

Questions & Answers

Q: What are the main types of connections shown for Peltier coolers in this video?

The video primarily illustrates two connection types: series and parallel. In series, the voltage is divided among the coolers, necessitating a higher total voltage to ensure each unit operates efficiently. In contrast, parallel connections keep the voltage constant across each cooler while the total current increases, allowing for greater cooling power without exceeding the limits of individual units.

Q: Why is it essential to monitor voltage and current during the demonstration?

Monitoring voltage and current is crucial to understand the behavior of Peltier coolers under different circuit configurations. It allows the presenter to illustrate how voltage is divided in series connections and how current is split among parallel units, helping viewers grasp the implications of these connections on performance and safety in practical applications.

Q: What happens to the coolers when connected in series with an increasing voltage?

When connected in series, each cooler receives a fraction of the total voltage supplied. For example, if four coolers are connected to a 12V power supply, each cooler might experience around 3V. However, this configuration limits the overall current since the units have similar resistances, and the performance will vary if the voltage exceeds their rated capacity.

Q: How do parallel connections differ in terms of power supply requirements compared to series connections?

In parallel connections, while the voltage remains constant across each cooler, the current supplied must be sufficient to meet the combined demand of all units connected. Therefore, increasing the number of coolers in parallel necessitates a higher total current capacity from the power supply, unlike series connections where the current remains unchanged but requires increased voltage for additive units.

Summary & Key Takeaways

• The video presents a demonstration of connecting Peltier coolers (TEC-12706 units) in series and parallel configurations, analyzing their performance using multimeters to monitor voltage and current.

• It highlights how connecting these coolers affects voltage division and current distribution, emphasizing that series connections require increased voltage, while parallel connections require increased current for optimal operation.

• The presenter discusses practical implications for users, such as integrating multiple coolers with varying power supplies, showcasing mixed connections to achieve desired temperatures efficiently.
