Stepper motor driven focusing on my metallurgical microscope

TL;DR

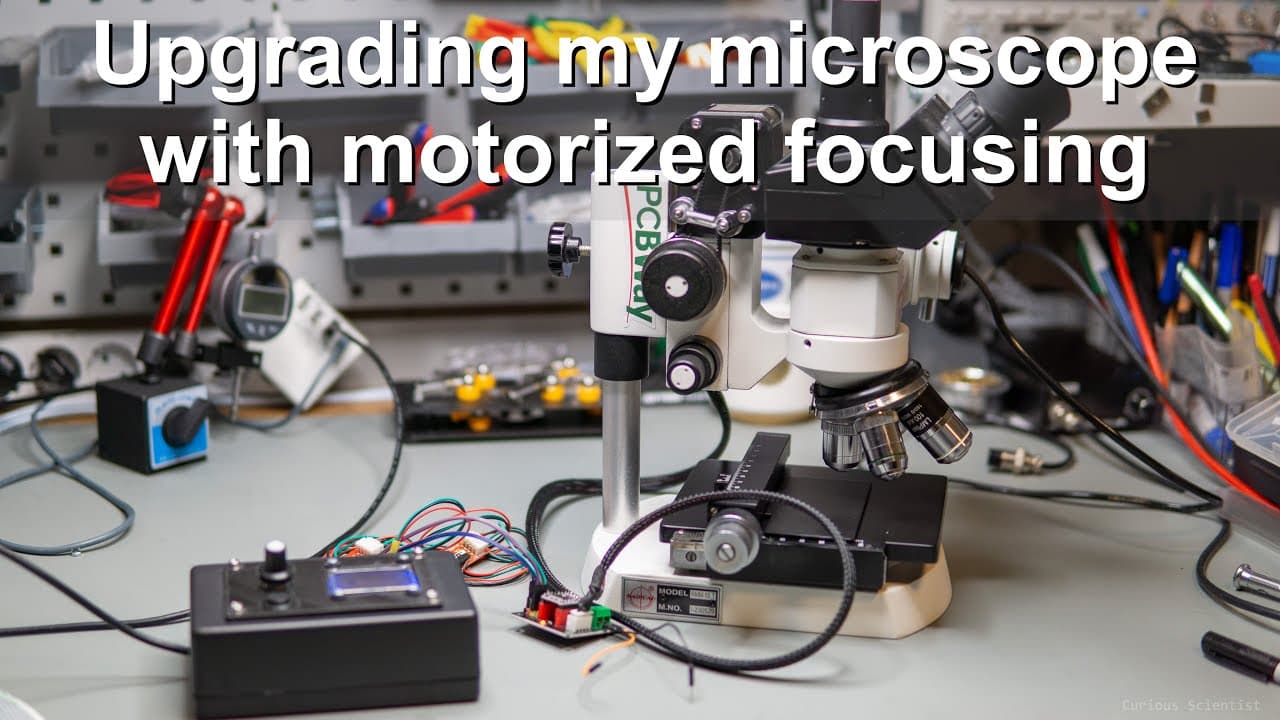

The video demonstrates how to upgrade a microscope with a motorized focusing axis.

Transcript

this video is sponsored by pcba welcome everyone in this video I am going to show you how I upgrade my methodological microscope and how I create a motorized Zed or focusing axis on this microscope so in one of my recent videos I have already shown this microscope to you and I showed it how it works and what are its features so I'm not going to det... Read More

Key Insights

• 👻 The motorized upgrading of a microscope significantly enhances its usability, allowing for more precise focusing capabilities.
• 🧑‍🦼 Employing a rack and pinion gear system effectively converts rotary motor movements into linear adjustments for the microscope.
• ✋ A stepper motor's micro-stepping capability offers high precision, which is crucial for focus stacking and achieving sharp microscopic images.
• 🚵 3D printing provides an accessible and customizable method for creating necessary mounting brackets and components in the upgrade process.
• 🦾 Proper tensioning mechanisms integrate seamlessly into the upgrade, ensuring consistent performance and preventing mechanical issues.
• 👤 The control panel used for this setup enables the user to dictate step sizes and movement directions, enhancing functionality for complex imaging tasks.
• 🏆 Participants in the PCB design contest could gain exposure and potentially win prizes by showcasing innovative engineering projects, such as this microscope upgrade.

Questions & Answers

Q: What is the main purpose of upgrading the microscope?

The upgrade aims to enhance the microscope’s capability by introducing a motorized Z-axis focusing mechanism. This allows for precise control over vertical movement, which is fundamental for tasks such as focus stacking, providing clearer images and facilitating detailed digital imaging of specimens.

Q: How does the gear system contribute to the focusing mechanism?

The gear system consists of a rack and pinion setup, which translates the rotational movement of the stepper motor into vertical displacement. This conversion is critical for accurately focusing on the specimen, with calculated gear ratios ensuring that each motor step corresponds to a precise micrometer adjustment in focus.

Q: What components are necessary for the motorized upgrade?

Key components include a Nema 17 stepper motor, 3D printed brackets for mounting, timing belts, pulleys, and a motor driver for controlling the motor. These elements work together to create an efficient and responsive focus mechanism, allowing for finer adjustments during microscope use.

Q: How is the tension in the system maintained during operation?

Tension in the belt system is managed by a custom-designed tensioner mechanism that uses springs to adjust and maintain the appropriate tension between the motor and pulley. This setup ensures that the system operates smoothly without slippage or loss of precision during focusing adjustments.

Q: What applications can benefit from this motorized upgrade?

This motorized upgrade can significantly benefit applications in scientific research and educational settings where microscopic precision is essential. It is particularly useful for techniques like focus stacking in photography or imaging, where capturing multiple planes of focus is necessary to produce a detailed final image.

Q: What challenges were faced during the installation process?

The primary challenges included finding an optimal mounting position for the stepper motor and ensuring that distances between the moving components were maintained to prevent tension loss in the belt system. Additionally, achieving precise alignment and reducing any mechanical slack were essential for maintaining accuracy.

Q: How does the software control the stepper motor?

The custom control panel used for the stepper motor allows for flexible operation, enabling specific step inputs, direction control, and setting predefined step sizes for the motor. This level of programming enhances the ability to manipulate the focus quickly and accurately, essential for capturing detailed images.

Q: What specific features make this setup suitable for focus stacking?

The setup allows for smooth, precise movements in small increments, facilitated by the stepper motor’s controlled stepping and the gear ratio that translates motor turns into meaningful micrometer adjustments. This adaptability makes it ideal for focus stacking since the user can make several fine adjustments to capture the perfect focus on different layers of the specimen.

Summary & Key Takeaways

• The video details upgrading a microscope with a motorized Z-axis focusing mechanism using a stepper motor and a gear system, enabling precise adjustments for specimen observation.

• It highlights the construction process, including 3D printed parts and calculations for gear ratios and motor steps necessary for converting motor rotations into vertical movements on the microscope.

• The tutorial also demonstrates the assembly of the system, focusing on achieving accuracy and precision for tasks like focus stacking in microscopy.
