How Does the Detectron DG-2 Geiger Counter Work?

TL;DR

The Detectron DG-2 Geiger Counter operates by detecting radiation through low-pressure gas ionization and consists of three Geiger tubes. It can be powered by a high voltage supply and includes precision capacitors for accurate gauge readings. Issues may arise with the tube electrode, impacting functionality, but the device remains operational after several decades.

Transcript

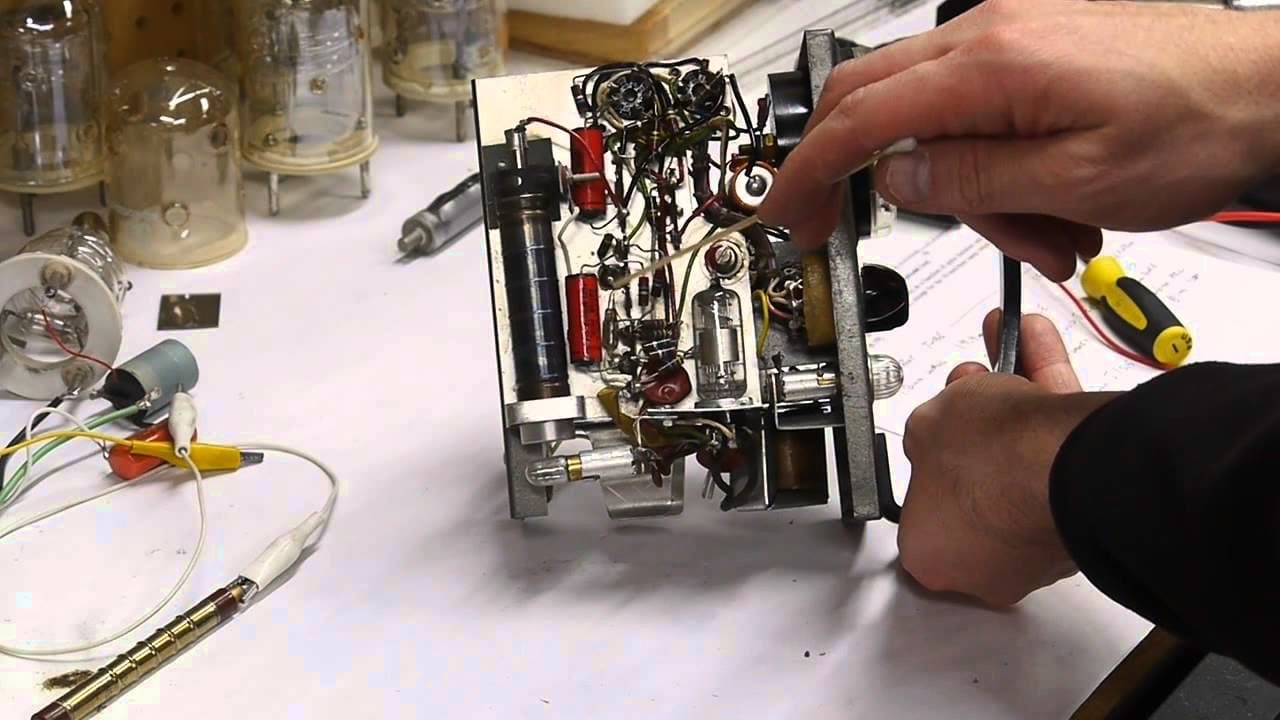

hey everyone a very generous viewer sent me this detector on dg2 Geiger counter and I decided to take it apart tonight and see how it was doing so this Geiger counter was originally a battery powered it was portable and it was powered by two of these B batteries at 45 volts apiece and two D cells at you know one and a half volts apiece so since I d... Read More

Key Insights

• 😘 The DG2 Geiger Counter operates using low-pressure gas ionization to detect radiation.
• ⚡ The device can be powered using a high voltage supply, making it portable and convenient for various applications.
• ❓ Additional Geiger Counters can be connected to verify the accuracy and functionality of the device.
• 🧪 The Geiger Counter has three tubes and precision capacitors for accurate gauge readouts.
• 🧪 The device has been functioning well for several years, except for occasional issues with the tube electrode.
• 🕵️ The Geiger Counter can detect different types of radiation, including beta emitters.
• ❓ It is important to configure the Geiger Counter correctly to achieve accurate readings.

Questions & Answers

Q: How does the DG2 Geiger Counter work?

The Geiger Counter works by using low-pressure gas ionization, where radioactive waves and particles ionize gas molecules, creating a flow of current between two electrodes.

Q: Can the Geiger Counter detect different types of radiation?

Yes, the Geiger Counter can detect various types of radiation, including beta emitters like strontium-90, which was used for testing in this analysis.

Q: What is the purpose of the high voltage supply?

The high voltage supply is used to power the Geiger Counter, as it requires a steady high voltage for accurate radiation detection.

Q: Why does the Geiger Counter require a load to be connected?

The Geiger Counter has safeties in its output and requires a load to be connected before it will start to prevent any voltage fluctuations or output errors.

Summary & Key Takeaways

• The DG2 Geiger Counter is a battery-powered device that is portable and detects radiation using low-pressure gas ionization.

• The device can be powered using a high voltage supply and requires a load to be connected before it will start.

• The Geiger Counter consists of three tubes, a voltage generation circuit, and precision capacitors for accurate gauge readouts.
