How Does 1D Cardiac Ultrasound Work with VEVO 770?

TL;DR

The one-dimensional cardiac ultrasound using the Visual Sonics Vivo 770 enables precise measurement of wall thicknesses and lumen volumes in rodent hearts, facilitating phenotype comparisons among normal animals. However, it may overlook crucial physiological details in disease models, requiring careful interpretation and potentially supplementary analysis for more comprehensive cardiac evaluation.

Transcript

hi so this is a quick Whistle Stop tour through the one-dimensional echocardiographic measurements taken from murine or rat Hearts using the visual Sonics Vivo 770 high resolution ultrasound system this is a technology that allows high resolution recording of ultrasound images from rodents with very high frequency and high sample accuracy of course... Read More

Key Insights

• 🥰 The Visual Sonics Vivo 770 provides high-resolution ultrasound imaging for studying rodent hearts.
• 🗨️ The one-dimensional analysis is suitable for comparing phenotypes of normal animals but may miss important physiological changes in disease models or animals with left ventricular abnormalities.
• 😨 Care should be taken when using the one-dimensional analysis, and additional analysis methods should be considered for a more comprehensive assessment of cardiac function.
• 👻 Measurements can be easily obtained using the software's measurement tools, allowing for the assessment of wall thicknesses, internal dimensions, and flow velocities.
• 🥰 The software also offers the option to estimate volumes in the heart, although caution should be exercised in interpreting these estimates.
• ❓ The exported data can be further analyzed, annotated, and plotted using spreadsheet software like Excel.

Questions & Answers

Q: What is the advantage of using the Visual Sonics Vivo 770 for echocardiographic measurements in rodents?

The Visual Sonics Vivo 770 allows for high-resolution ultrasound imaging with high-frequency and high sample accuracy, providing detailed measurements in rodent hearts.

Q: When should the one-dimensional analysis be used?

The one-dimensional analysis should be used when comparing phenotypes of normal undiseased animals, as it provides a quick way to measure wall thicknesses and lumen sizes.

Q: Why should caution be exercised when using the one-dimensional analysis in disease models or animals with left ventricular abnormalities?

Disease models or animals with left ventricular abnormalities may have important physiological changes that are not captured by the one-dimensional analysis. It is important to use additional analysis methods, such as 2D analysis, to obtain a more comprehensive assessment of cardiac function.

Q: How can the Visual Sonics Vivo 770 be used to measure wall thicknesses and internal dimensions?

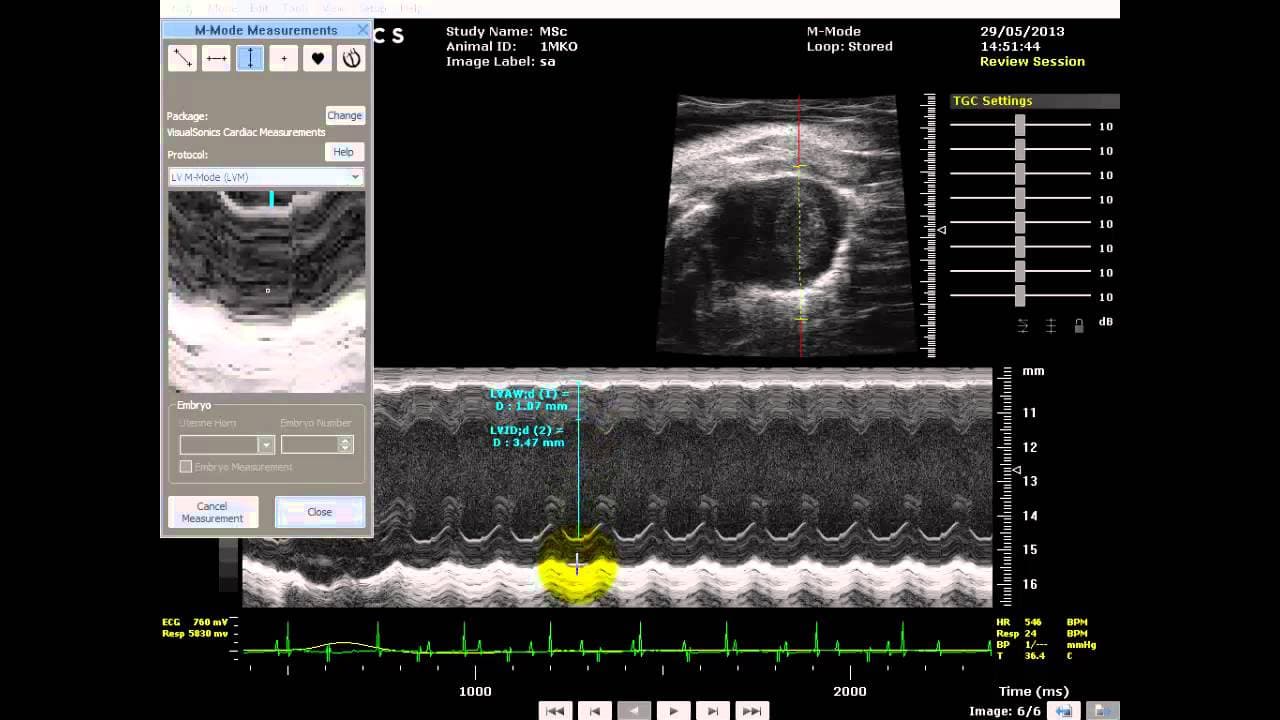

By selecting specific points along the heart wall, the software automatically calculates wall thicknesses and internal dimensions. Measurements can be made at both diastole and systole.

Summary & Key Takeaways

• The content explains the use of the Visual Sonics Vivo 770 ultrasound system for high-resolution ultrasound imaging in rodent hearts.

• The one-dimensional analysis focuses on measuring wall thicknesses and lumen volumes, which is suitable for comparing phenotypes of normal animals.

• Care should be taken when using this analysis in disease models or animals with left ventricular abnormalities, as important physiology may be missed.
