Piezoelectric Braille system with PC parallel port control and HV transistors

TL;DR

This video showcases a DIY electronic Braille system controlled by a PC parallel port, including details on building a custom driver circuit.

Transcript

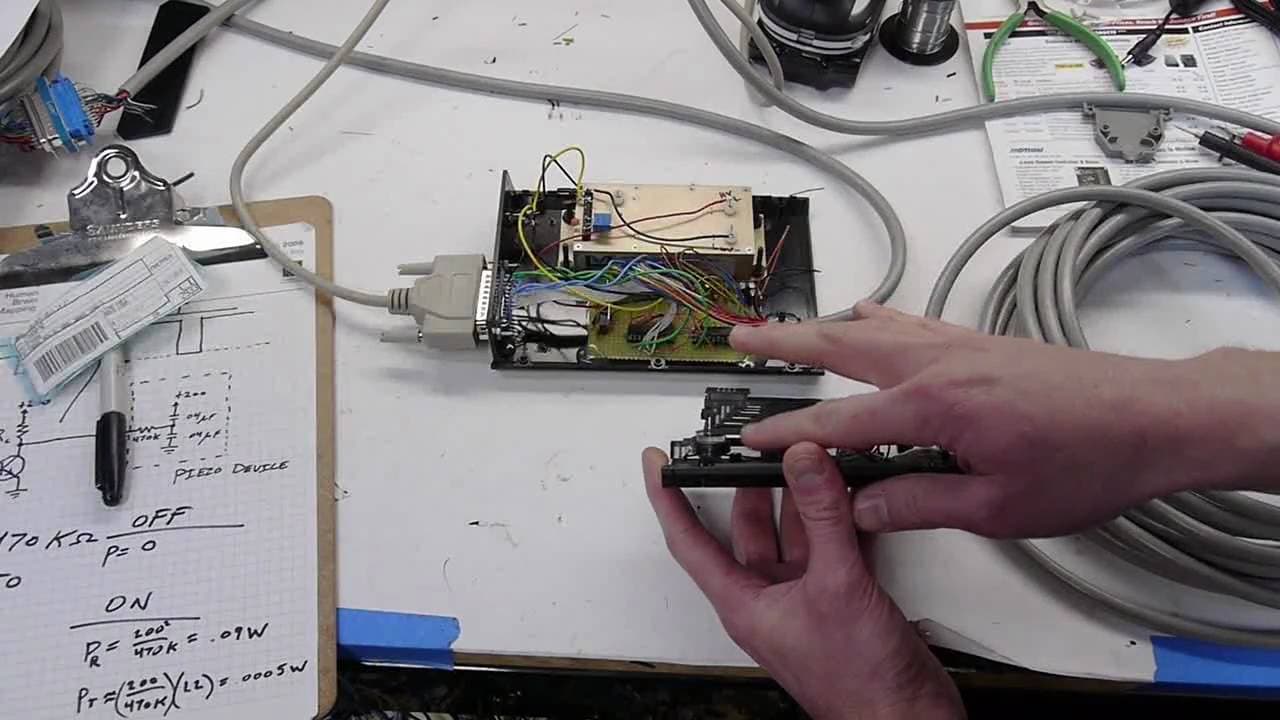

hey guys been here I thought I'd show you my latest project this is an electronic Braille system with two characters that are controlled by the PC parallel port so I'll open this up and show you what's built inside the actual barrel modules themselves are commercially made these are made by a company called meat tech or medtech I'll put a link in t... Read More

Key Insights

• 🛂 The electronic Braille system employs commercially made Braille modules controlled by a PC parallel port.
• 😴 A piezo electric bender actuator is utilized to control each Braille pin's movement.
• ⚡ The driver circuit amplifies the input signal from 0 to 5 volts to 200 volts using a transistor amplifier.
• ✋ High-value resistors can be used in the circuit due to the capacitive nature of the piezo elements.
• 🐬 The selection of Braille characters is achieved by storing the parallel port data using octal D flip-flops.
• 👻 Tactile buttons underneath the Braille characters allow for input detection through the parallel port's status register.
• ⚡ The power supply used is adjustable and set to a voltage lower than the maximum rated voltage of the Braille device.

Questions & Answers

Q: How does the piezo electric bender actuator work in the Braille display?

The actuator is a long thin panel or rod that flexes when voltage is applied. A 200-volt signal causes the pin to be down, while a zero-volt signal raises the pin.

Q: What is the purpose of the transistor amplifier in the circuit?

The transistor amplifier increases the input signal from 0 to 5 volts to 200 volts, enabling control of the piezo electric bender actuators in the Braille module.

Q: Why is a high-value resistor used in the amplifier circuit?

As the piezo elements are capacitive, a high-value resistor can be used in the circuit since charging the element doesn't need to occur quickly. This simplifies the circuit design.

Q: How is the selection of Braille characters achieved using the parallel port?

The octal D flip-flops are used to store the 8-bit data from the parallel port. The outputs of these flip-flops are then connected to the transistors, allowing the selection of individual Braille characters.

Summary & Key Takeaways

• The video demonstrates an electronic Braille system using commercially made Braille modules controlled by a PC parallel port.

• Each Braille pin is controlled by a piezo electric bender actuator, which flexes in response to applied voltage.

• The driver circuit amplifies the 0 to 5-volt input signal to 200 volts, allowing control of the Braille pins.
