Measuring speed and position using the AS5600 magnetic encoder | Summary and Q&A

TL;DR

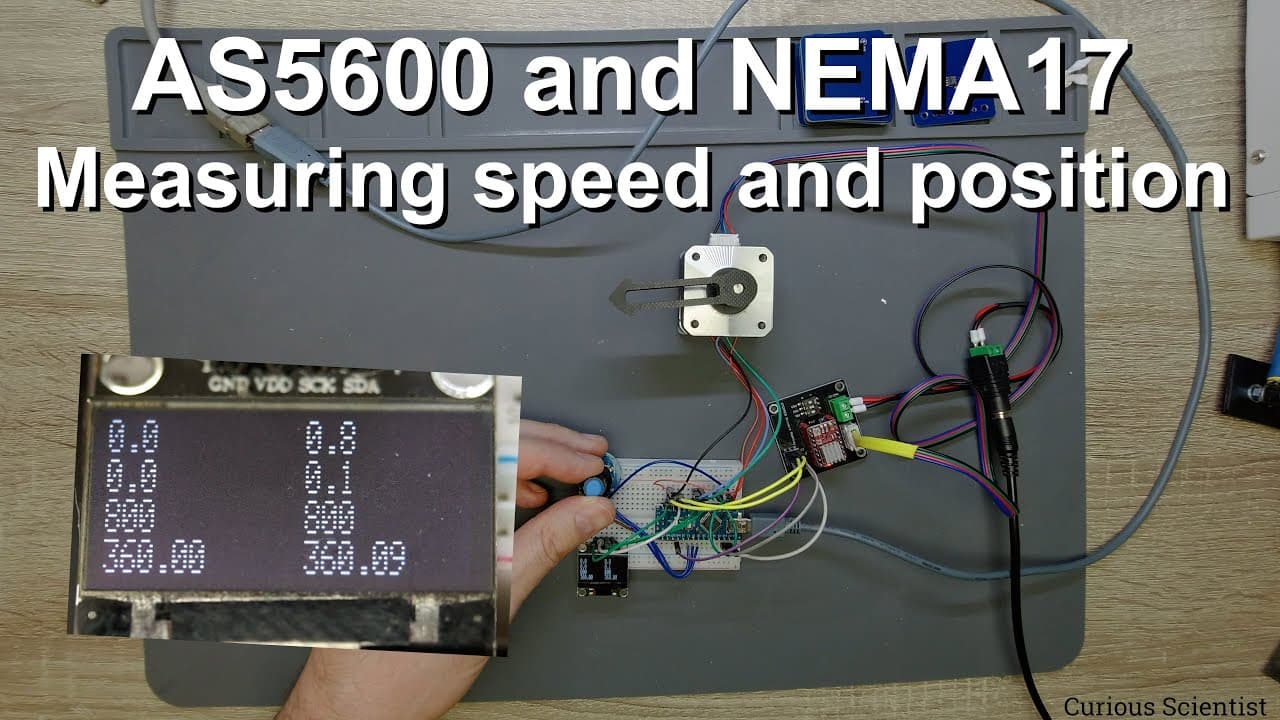

The video demonstrates using the AS5600 magnetic sensor with a stepper motor for position and speed measurement.

Key Insights

• 🧑‍🦼 The AS5600 chip is integrated into a system featuring a stepper motor to enhance position and speed measurement accuracy.
• 🧑‍🦼 Real-time monitoring of the stepper motor's performance can be achieved through the communication between the Arduino and the AS5600.
• 🍵 The video demonstrates the importance of soldering technique, showcasing how to handle soldering issues for successful PCB assembly.
• 🧑‍🦼 The project highlights the significance of confirmation systems that ensure commands sent to the motor correspond with actual movements.
• 🤩 Using an OLED display allows for easy monitoring of key parameters such as speed, position, and angular displacement.
• 🧑‍🦼 The introduction of servo speed control using rotary encoder inputs adds a layer of user interactivity to the stepper motor operation.
• 👨‍💻 The video emphasizes the importance of precise coding routines, particularly in handling the timing of tasks in embedded systems.

Transcript

Read and summarize the transcript of this video on Glasp Reader (beta).

Questions & Answers

Q: What is the role of the AS5600 sensor in this project?

The AS5600 sensor is a magnetic position sensor that accurately determines the angle of the shaft rotation of the stepper motor. By using a magnet affixed to the motor's shaft, the AS5600 detects magnetic field changes, allowing the system to calculate speed and position based on the angular displacement.

Q: How does the Arduino interact with the stepper motor in this setup?

The Arduino controls the stepper motor by sending signals to a stepper motor driver based on the desired speed and position. It also reads data from the AS5600 sensor to ensure that the commands sent match the actual movement of the motor, displaying this information in real-time on an OLED screen.

Q: What challenges did the presenter face during the soldering process?

During soldering, the presenter encountered minor difficulties like excess solder which caused short circuits between components. They effectively resolved these issues through careful re-soldering and adjustments, emphasizing that while the final assembly may appear rough, it worked satisfactorily.

Q: What are the main advantages of using this magnetic position sensor over traditional methods?

The AS5600 offers high precision and the ability to give real-time feedback on the motor's position and speed. This feedback is crucial for applications needing accurate movement tracking, minimizing errors compared to traditional encoders, and it effectively supports both open-loop and closed-loop control systems.

Summary & Key Takeaways

• The content revolves around integrating the AS5600 magnetic position sensor with a NEMA 17 stepper motor for measuring position and speed.

• The presenter describes soldering and assembling a new PCB for better performance and uses an Arduino to control the system, displaying data on an OLED screen.

• Sponsored by a PCB manufacturer, the video also highlights their services, including PCB assembly, 3D printing, and offers for the holiday season.
