How to Build a Low-Cost Water Jet Cutter with Pressure Washer?

TL;DR

You can build a low-cost water jet cutter using a pressure washer by modifying it for higher pressure. This DIY setup can effectively cut materials like aluminum and hardwood at a fraction of the cost of commercial machines. Essential modifications include enhancing the pressure system and ensuring proper coolant support to maintain operational efficiency.

Transcript

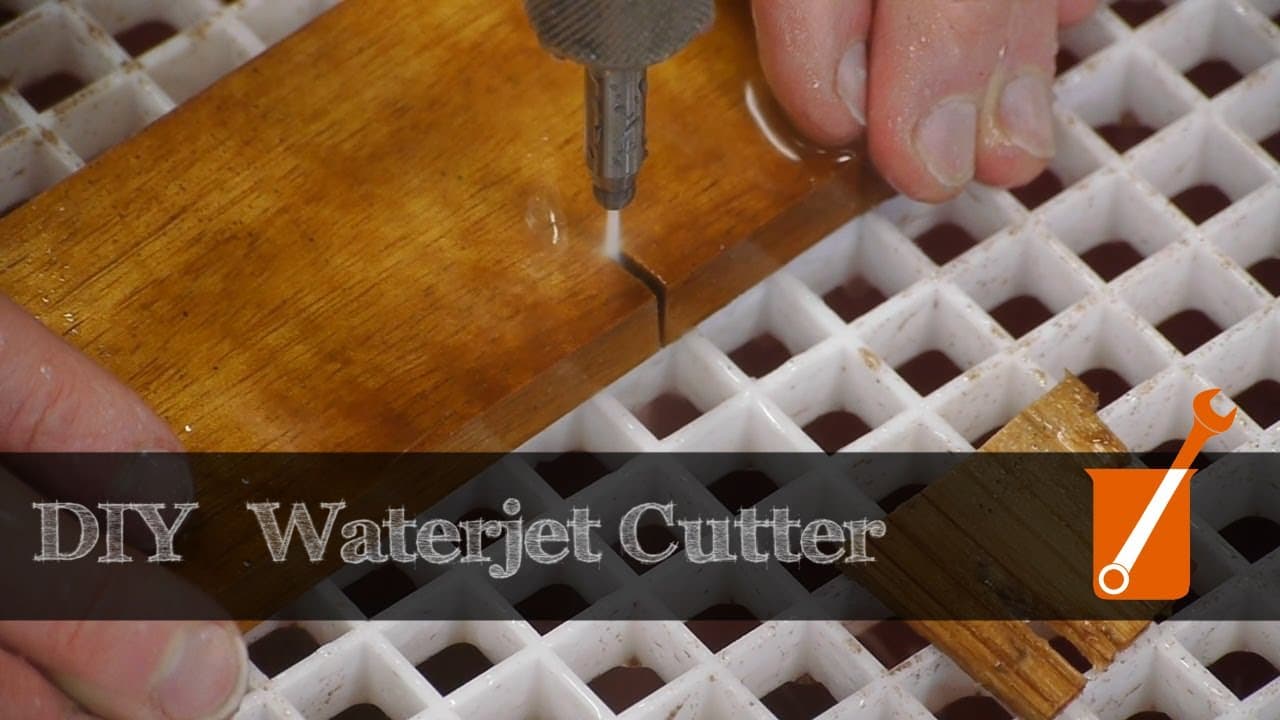

today on Applied Science I'm going to talk about water jet cutters everyone wants one but they're too big and expensive so for a long time I've wanted to try building one out of the low-cost pressure washer and today the results are in so let's take a quick look here we're cutting sixteenth inch thick aluminum and we're cutting at about two inches ... Read More

Key Insights

• 💦 Building a DIY water jet cutter using a pressure washer is a cost-effective alternative to expensive commercial machines.
• 💦 Materials such as aluminum, hardwood, foam, and bread can be easily and effectively cut using the DIY water jet cutter.
• 💄 The modification process involves disassembling the pressure washer, making necessary adjustments, and ensuring proper cooling.
• 😒 The DIY water jet cutter is safe to use for hobby projects, but additional modifications may be required for precise cutting.
• 🚄 Commercial machines have higher cutting speeds, but for hobby projects, the DIY water jet cutter is a practical choice.
• 💦 The DIY water jet cutter utilizes abrasive particles to achieve cutting, with water serving as a convenient medium for particle acceleration.
• 🤩 The cutting head of the DIY water jet cutter involves key components such as a tungsten carbide tube and a ruby orifice.

Questions & Answers

Q: How much does the pressure washer used to build the water jet cutter cost?

The pressure washer used in the DIY project costs $150, significantly cheaper than commercial machines.

Q: What materials can be cut using the DIY water jet cutter?

The water jet cutter can cut materials such as aluminum, hardwood, foam, and even bread.

Q: Is it safe to use a DIY water jet cutter at home?

While the DIY water jet cutter is not as fast as commercial machines, it is safe to use for hobby projects at home.

Q: Can the DIY water jet cutter be used for precise cutting?

With some modifications and a CNC control, the DIY water jet cutter can achieve precise cutting for hobby projects.

Summary & Key Takeaways

• The water jet cutter is capable of cutting various materials such as aluminum, hardwood, foam, and bread.

• The pressure washer used to build the water jet cutter costs only $150 compared to commercial machines that cost $150,000.

• The modification process involves disassembling the pressure washer, removing certain parts, and adding an additional cooling fan.
