How to Upgrade Your Coil Winder for Better Performance

TL;DR

Upgrading your coil winder involves installing a NEMA 23 stepper motor for enhanced torque, a TB6600 driver for higher currents, and a new 3D-printed feeder that allows adjustable friction for better wire movement. Additionally, improved software features streamline user controls and ensure precise automation during the winding process, making it easier for DIY enthusiasts to create effective coil binders.

Transcript

welcome everyone in this video i'm going to talk about the most recent updates of this coilbinder project so i did a lot of changes and i want to make a follow-up video to share these changes and hopefully give you some useful ideas to build your own coil binder or just copy this one so either way i hope that this video will help you in your projec... Read More

Key Insights

• ❣️ The transition to a NEMA 23 stepper motor significantly boosts the coil binder's operating capabilities, providing increased torque for heavier tasks.
• 🧑‍🦼 A more advanced TB6600 stepper motor driver handles higher currents, ensuring the motor operates reliably under varied loads.
• 🦾 The mechanical feeder's design incorporates adjustable friction through felt discs, which helps regulate wire movement effectively during the winding process.
• 👤 The updated software provides user-friendly features that include speed setting, layer counting, and the ability to manually control the feed mechanism, enhancing the user experience.
• 🧑‍🦽 The firmware modifications account for initial manual turns on the bobbin, ensuring precise automation of the winding process.
• 😫 Precise measurements when setting the bobbin dimensions and wire diameter are crucial to avoid inconsistency in coil formation and to maintain product quality.
• 😒 The video emphasizes an experimental approach, inviting viewers to refine their designs based on practical results and their unique use cases.

Questions & Answers

Q: What are the key mechanical updates made to the coil binder?

The mechanical updates include the introduction of a new 3D-printed feeder designed to enhance the feeding process of the wire. Additionally, a NEMA 23 stepper motor has been integrated, offering improved power and precision. This new setup allows the feeder mechanism to adjust back and forth based on the bobbin's width, addressing issues faced with previous designs.

Q: How does the electronics upgrade improve the coil binder's functionality?

The shift from a NEMA 17 stepper motor to a NEMA 23 requires a more robust driver, so a TB6600 driver has been implemented. This upgrade allows for higher current management and better overall performance. The changes in software also streamline operations by eliminating unnecessary acceleration features, thus providing a smoother winding experience at consistently lower speeds.

Q: What considerations are important when setting the wire diameter in the software?

The wire diameter must be inputted accurately in the software to ensure that the coil binder functions correctly. It's vital to account for coating on the wire, which may make the nominal diameter inaccurate. Inputting the actual diameter helps the device calculate the necessary feeder adjustments and coil laydown properly, thereby preventing operational hiccups.

Q: Can you explain the feasibility of using PCBWay's 3D printing service for replicating parts?

PCBWay offers a reliable and accessible platform for those lacking 3D printing equipment. Their service allows users to upload CAD files in compatible formats like STL or STEP and choose print options such as material type and color. This is especially useful for enthusiasts who wish to create specific parts for their machines without investing in a personal 3D printer.

Summary & Key Takeaways

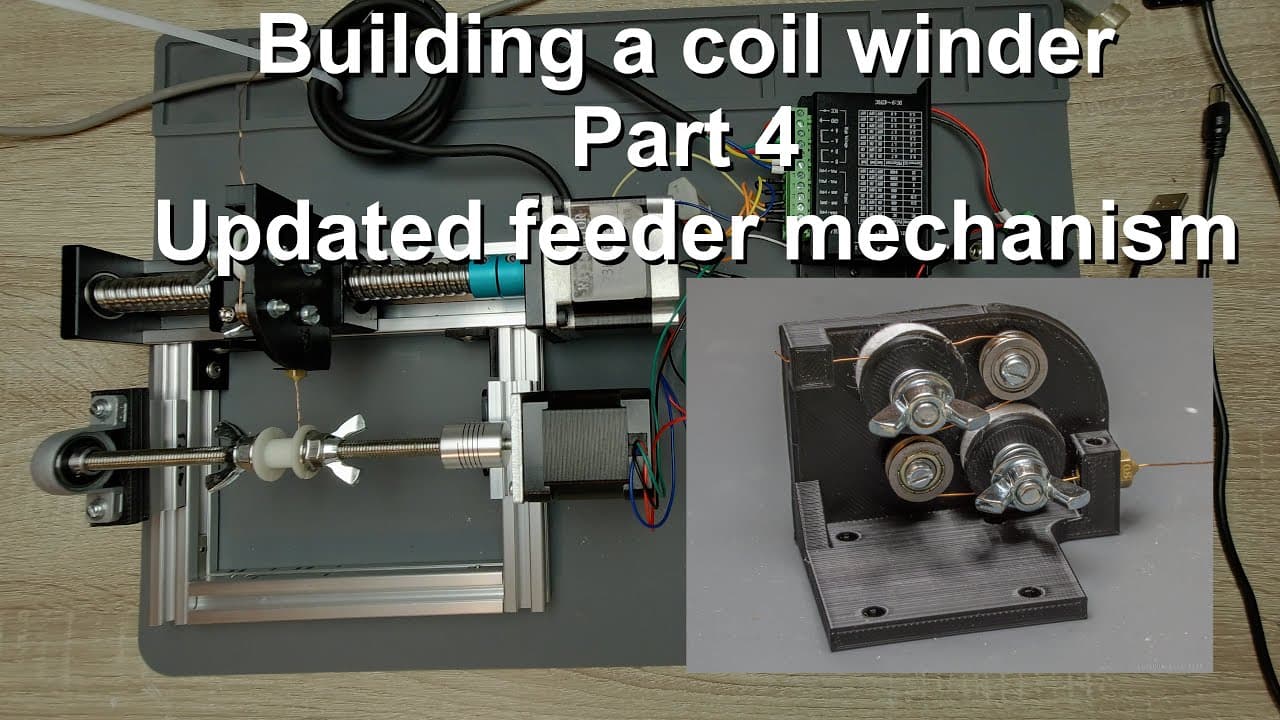

• The video reviews the latest modifications in a coil binder project, focusing on mechanical changes like a new 3D-printed feeder and a NEMA 23 stepper motor.

• The electronics segment introduces an upgraded TB6600 driver and various software enhancements that optimize motor performance and user controls for winding operations.

• Viewers are encouraged to replicate these changes and benefit from updated designs, software, and practical insights for enhancing their own coil binder projects.
