DSO150 15001K DIY Oscilloscope Assembly Walkthrough

TL;DR

A comprehensive guide to assembling a DIY handheld oscilloscope using various tools and components.

Transcript

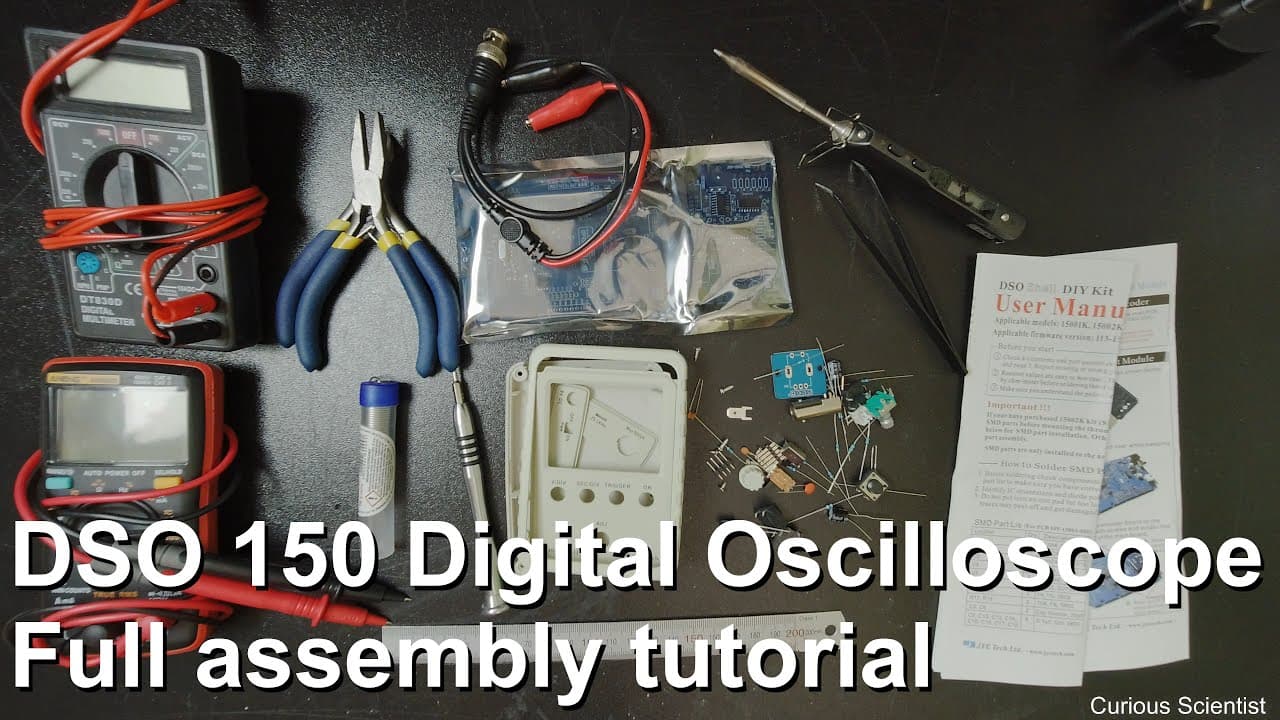

welcome everyone in this video I will try to assemble a DIY handheld oscilloscopes Oh as you can see we have several parts scattered around the table this oscilloscope comes with a nice manual I can show you and it has all the instructions come down low so it tells you what and how to solder step by step you will you even have a checklist for each ... Read More

Key Insights

• 👋 The assembly of a DIY oscilloscope involves various electronic components, including resistors, capacitors, and connectors, necessitating a good understanding of electronics.
• 🤩 Soldering is a key skill required in this process, emphasizing the importance of temperature control and proper technique to ensure strong connections.
• 🧑‍🦽 Calibration of the oscilloscope post-assembly is necessary to ensure accurate measurements and performance, with clear instructions provided in the manual.
• 😄 The video serves as both an instructional tool and a testimony to the functionality and ease of use of the oscilloscope when assembled correctly.
• 🎨 The oscilloscope's design and affordability (around $16) make it an accessible option for hobbyists and learners interested in electronics.
• 🦻 Clear visibility of instructions and circuit design on the circuit board greatly aids users in component placement and overall assembly efficiency.
• 🧑‍🦽 The troubleshooting section in the manual assists users in addressing potential issues, enhancing the overall usability of the oscilloscope.

Questions & Answers

Q: What tools are necessary for assembling the DIY oscilloscope?

Essential tools for the assembly of the DIY oscilloscope include a soldering iron and solder wire, a digital multimeter for measurements, screwdrivers, tweezers, and a 9-volt DC power supply. These tools facilitate efficient soldering and ensure proper component placement during the assembly process.

Q: How important is the manual that comes with the oscilloscope kit?

The manual is crucial as it contains clear, step-by-step instructions for assembly, including checklists for required tools and components. It helps prevent errors during soldering and provides troubleshooting tips. Its clarity and thoroughness can significantly enhance the assembly experience for beginners.

Q: What are some common challenges faced during the assembly process?

Common challenges during assembly can include managing the various components, soldering small parts delicately, and ensuring proper connections without overheating the materials. Additionally, accurately measuring resistors and troubleshooting issues like bad solder joints can also pose challenges for beginners.

Q: How can users ensure proper soldering technique during assembly?

Users should ensure that both the metal component and the circuit board hole are heated adequately before applying solder. This ensures a strong bond, as solder should flow into the gaps rather than sit on top. Practicing proper techniques, such as using the correct temperature and timing for solder application, is vital for effective soldering.

Summary & Key Takeaways

• The video demonstrates assembling a handheld oscilloscope from scratch, providing detailed step-by-step instructions to simplify the process.

• Essential tools required for the assembly include a soldering iron, multimeter, and various components such as resistors and capacitors.

• Calibration and troubleshooting tips are provided for achieving optimal performance, emphasizing the user-friendly nature of the included manual.
