System Response Characteristics

TL;DR

This lecture discusses the system response characteristics in control systems, including the variation of output with respect to the input and the factors that cause this variation.

Transcript

hello everyone and welcome to the next lecture of control systems in this lecture we will discuss the system response characteristics in the previous lecture we discussed the introduction to control systems and we also had discussion on the block diagram of control system and we know that if this is the block diagram of any control system then on t... Read More

Key Insights

• 📚 Control system response characteristics: The system response characteristics of a control system can be represented graphically, showing the variation of the output with respect to the input.

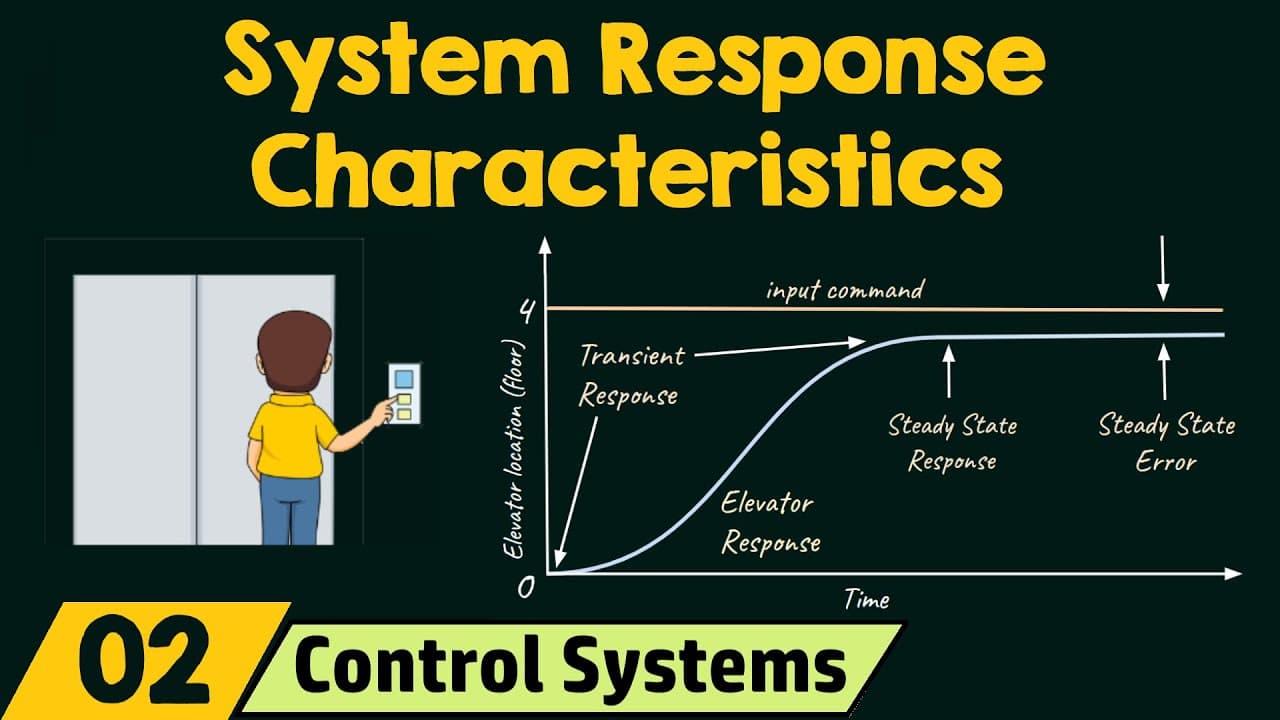

• 🏢 Elevator example: An elevator moving from the ground floor to the fourth floor is used as an example to explain system response. The elevator response is gradual due to the time it takes for the elevator to move from one floor to another. ⏰ Transient response: The response that lasts for a short interval of time, during which the control system is doing work to generate the output, is called the transient response.
• 🔁 Steady-state response: The response when the control system has finally reached a steady state, indicating that the final output has been generated, is called the steady-state response.
• 🎯 Steady-state error: The accuracy of the system at steady state can result in a difference between the actual response and the desired response, known as the steady-state error.
• 🛠️ System configurations: The next lecture will discuss two system configurations - open-loop and closed-loop - which determine the type of system in a control system.
• 🚐 Open-loop system: One type of system configuration is an open-loop system, where there is no feedback. The output is not adjusted based on the actual response.
• 🔄 Closed-loop system: The other type of system configuration is a closed-loop system, which includes feedback. The output is adjusted based on the actual response.

Questions & Answers

Q: Why does the output of a control system differ from the input?

The output of a control system differs from the input because the input is instantaneous while the output changes gradually due to the system's work in generating the output.

Q: What are the two versions of system response discussed in the lecture?

The first version is the transient response, which lasts for a short interval of time, and the second version is the steady-state response when the system has reached its final output.

Q: What is the steady-state error in a control system?

The steady-state error refers to the difference between the actual response and the desired response of a control system when it has reached a stable output.

Q: How can steady-state errors be reduced in control systems?

To reduce steady-state errors, certain system configurations, such as open-loop and closed-loop configurations, can be used, which will be discussed in the next lecture.

Summary & Key Takeaways

• Control systems generate an output in response to an input, and the difference between the desired and actual response is the control system error.

• The output of a control system varies from the input due to factors such as the instantaneous nature of the input and the gradual nature of the output.

• System response can be divided into transient response, which lasts for a short interval of time, and steady-state response, when the system has reached a stable output.
