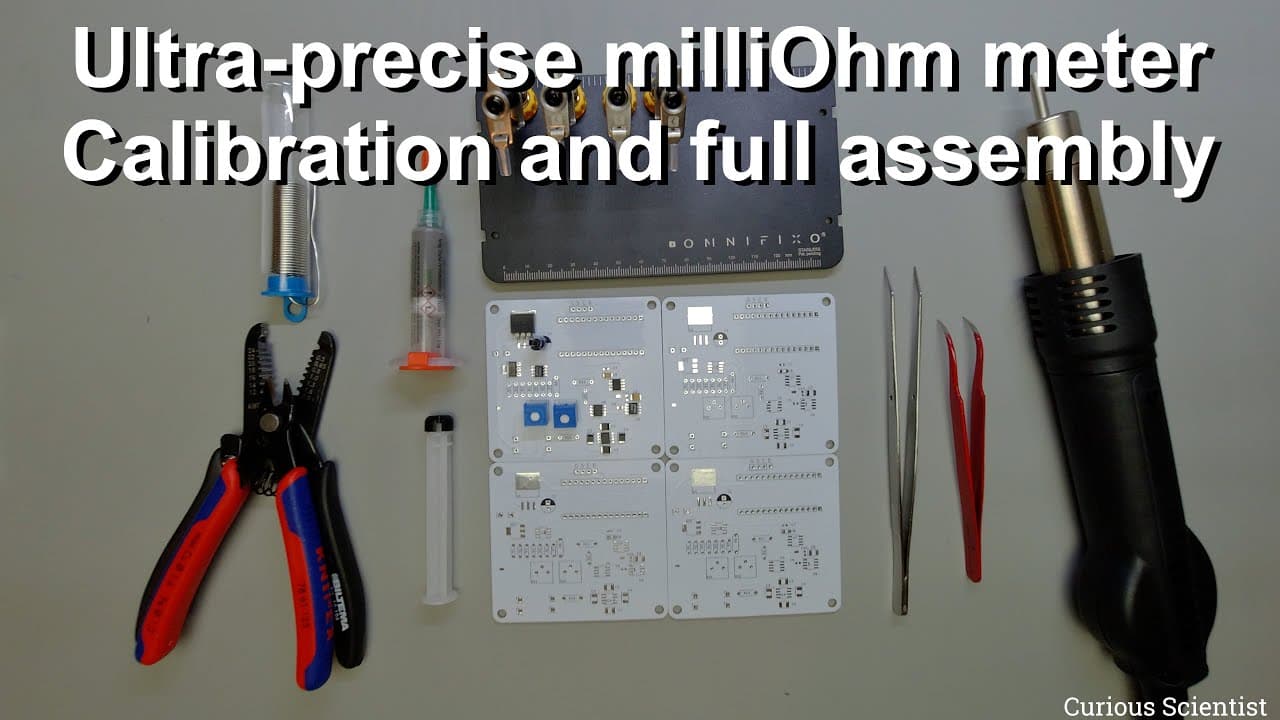

Ultra-precise milliOhm meter - Calibration and full assembly

TL;DR

The creator assembles and calibrates multiple PCBs for a million meter circuit while practicing soldering techniques.

Transcript

welcome everyone in this video i'm going to work with the million meter again so in my previous videos you could see that i assembled this thing i programmed an arduino nano to drive the thing and read out the values and i measured a few simple resistors just to see if it works properly but then i got five pcbs in total so i still had four pcbs lef... Read More

Key Insights

• 🤒 The million meter project involves assembling PCBs that can measure resistance in the milli-ohm range, essential for precise electronic measurements.
• 👻 Using a stable current source allows for accurate voltage drop measurements across unknown resistors, only functioning optimally within specific resistance limits.
• ❓ Emphasizing soldering practices, particularly with tiny SMD components, enhances the creator's skills and overall quality of the assembly process.
• 🆘 Detailed checkpoints during the assembly help in verifying the functionality of each individual circuit segment, ensuring thorough testing and accuracy.
• ❓ Calibration involves adjusting trimmer potentiometers after measuring known resistor values, highlighting the critical process of ensuring precision in circuit operation.
• 🚠 The creator explores different resistor values and configurations while acknowledging and mitigating challenges related to cable resistance and connection quality.
• 💍 Engaging in such DIY projects promotes learning and mastery of practical skills applicable to various electronics and engineering tasks.

Questions & Answers

Q: What is the purpose of the million meter circuit being assembled?

The million meter circuit is designed to measure low resistance values accurately, specifically in the milli-ohm range. It uses a stable current source to create a voltage drop across an unknown resistor, which is then measured and calculated based on Ohm's Law. This tool is essential for precise electrical testing and applications where low resistances must be accurately quantified.

Q: How does the assembly process for the PCBs work in this video?

In the video, the creator organizes components for the PCBs, using a 'cheat sheet' for reference during assembly. Each PCB is assembled one at a time, with specific checkpoints where measurements are taken to ensure each section is functioning correctly. This structured method helps in identifying issues early in the process and guarantees a more efficient assembly.

Q: Why is soldering practice emphasized in the video?

Soldering practice is emphasized because it is a crucial skill in electronics. The creator uses this project to hone their soldering techniques, especially with small surface-mount devices (SMDs), which are challenging to handle due to their size. Improved soldering skills are necessary for building reliable and functional electronic circuits.

Q: What challenges does the creator face during the calibration process?

The creator encounters challenges in calibrating the current and voltage measurements, requiring careful adjustment of trim potentiometers. They must ensure the current remains at 100 milliamps, leading to necessary trial and error. The precision of the connections and external factors, like cable resistance, can also impact the measurements, necessitating attentive adjustments.

Q: How does the creator ensure accuracy in the resistance measurements?

To ensure accuracy in resistance measurements, the creator uses a high-precision one-ohm resistor as a reference. By measuring the voltage drop across this known resistor, they can adjust their current output to achieve the desired 100 milliamps, confirming that the circuit operates correctly. This method leverages Ohm’s Law for precise calibration.

Q: What additional services and features does the PCB manufacturer offer?

The manufacturer offers various services to enhance PCB projects, including PCB assembly, sourcing of components, CNC services, 3D printing, and sheet metal forming. These options are valuable for makers wanting to ensure their project is not only functional but also aesthetically pleasing with customizable designs.

Q: What have the creator’s takeaways been from this assembly project?

The creator’s takeaways include improved soldering skills, an appreciation for precise calibration methods, and a better understanding of how to efficiently assemble complex circuits. They found the experience informative and enjoyable, highlighting the fun and challenges associated with DIY electronics projects while reinforcing the importance of accuracy in electronic measurements.

Q: What does the successful operation of the assembled circuits signify for the creator?

The successful operation of the assembled circuits signifies that the creator has effectively translated their design into functional hardware. It reflects their competence in both the assembly and calibration processes, establishing confidence in their skills and knowledge in electronics, as well as providing practical, working examples of their designs.

Summary & Key Takeaways

• The video focuses on the assembly and testing of four PCBs designed for measuring low resistances, incorporating an Arduino Nano for data output.

• The creator demonstrates soldering techniques and ensures proper circuit functionality by conducting several measurements to confirm accuracy.

• A detailed calibration process is shown, adjusting components to achieve accurate readings, which highlights the importance of precision in electronic projects.
