ADS1256 - Board comparison

TL;DR

A comparison of three microcontroller boards, detailing features, prices, and recommended options.

Transcript

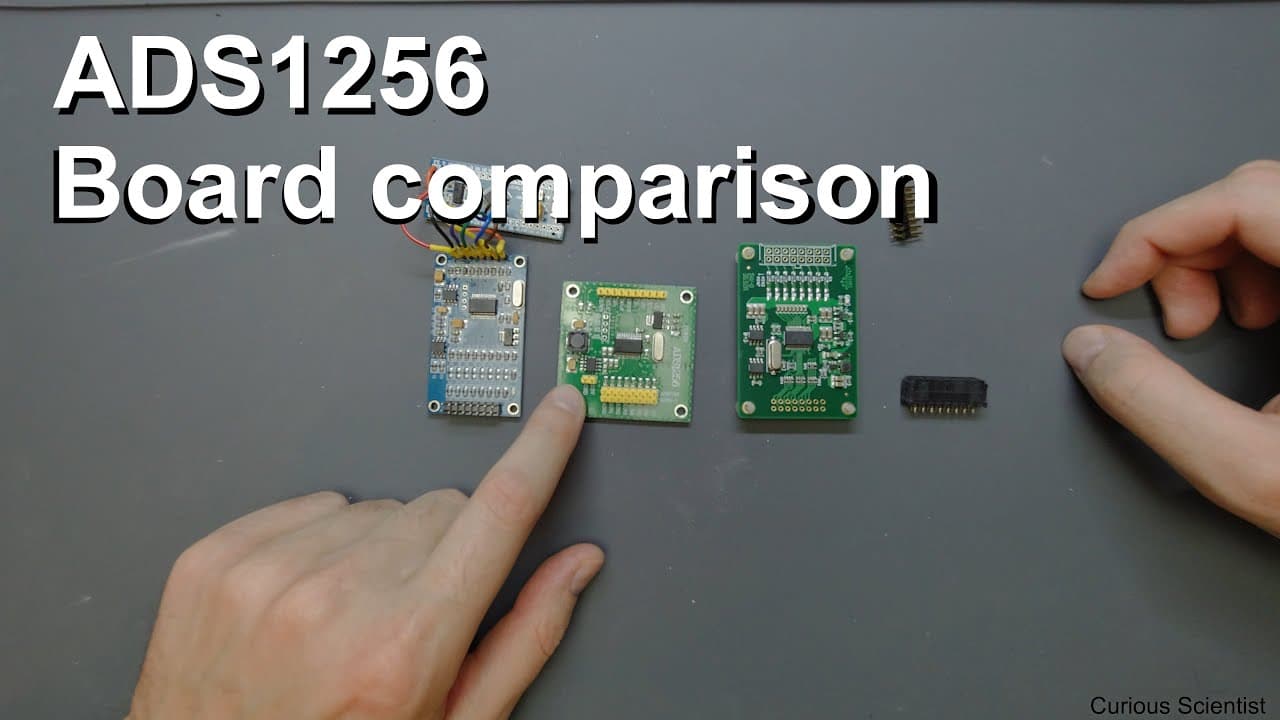

why am I wrong in this video I just quickly want to talk about three different kind of ideas 12:56 boards so you can see it on the screen now I lined up three different kinds of boards one this guy is already soldered to any stm32 microcontroller I've been already using this for a while and also I did most of my previous videos using this board her... Read More

Key Insights

• 🏂 The reviewed microcontroller boards have similar sizes but differ in shapes and functionalities, impacting their utility in various projects.
• 🏂 The cheapest option is well-received for its value, although the presenter indicates a preference for boards with better packaging and connection options regardless of the cost difference.
• 👏 A board’s design, including the arrangement of connection pins, can significantly affect ease of use during project assembly.
• 🏂 Price often reflects not just the board's features but also its packaging quality, which is essential for ensuring safe delivery to customers.
• 😴 Pre-soldered pins are convenient but limit customizability, while separate pins allow for more flexibility in wiring and connections.
• 🏂 Proper testing of these boards is essential to assess performance reliability, especially in terms of voltage stability and output precision.
• 🫵 Viewers should seek boards that suit their project needs while considering both quality and safety aspects of transportation.

Questions & Answers

Q: What are the three microcontroller boards being compared in the video?

The video focuses on three distinct microcontroller boards: one already soldered to an STM32 microcontroller, a cheaper alternative, and a new, more expensive board that the presenter hasn't yet tested. Each board has unique characteristics, including different sizes, design quality, and feature sets, making them suitable for various applications.

Q: Why is packaging important when purchasing microcontroller boards?

Proper packaging is crucial when purchasing microcontroller boards because it protects them during transportation. In the video, the presenter emphasizes that poor packaging can lead to boards arriving with damaged pins or components, causing frustration, wasted time, and money. A well-packaged board not only ensures its integrity but also adds value to the purchase.

Q: What features make the newly acquired board stand out?

The new board stands out due to its robust design, optional plastic connectors for easier wiring, and elegant packaging that provides better protection during shipping. The presenter also notes that the board appears well-made and aesthetically pleasing, which can enhance the user experience and project execution.

Q: How do the price points of the boards compare?

The presenter outlines that the cheapest board costs around $16-18, the medium-priced board ranges from $19-21, and the most expensive option is approximately $24-26. The price differences reflect their features, packaging quality, and soldering style, with the more expensive options being more customizable and better protected.

Q: What should be considered when choosing a microcontroller board?

When selecting a microcontroller board, consider factors like price, features (such as pre-soldered pins or availability of connectors), size, and the quality of packaging. These can significantly impact usability, convenience in project assembly, and overall performance.

Q: What plans does the presenter have for the newly acquired board?

The presenter plans to test the new board in upcoming videos, specifically using it with an STM32 microcontroller. They intend to showcase how to connect it effectively, utilize banana plugs for inputs, and create an organized project within a metal enclosure, providing viewers with practical insights.

Summary & Key Takeaways

• The video reviews three different microcontroller boards, highlighting their features, design, and price points, with a special emphasis on one expensive option that includes additional connectivity and better packaging.

• It discusses the advantages and disadvantages of each board, including pre-soldered pins, size variations, and the importance of packaging for safe transportation.

• The presenter plans to conduct future tests on the boards and encourages viewers to consider features and packaging when choosing a suitable board for their projects.
