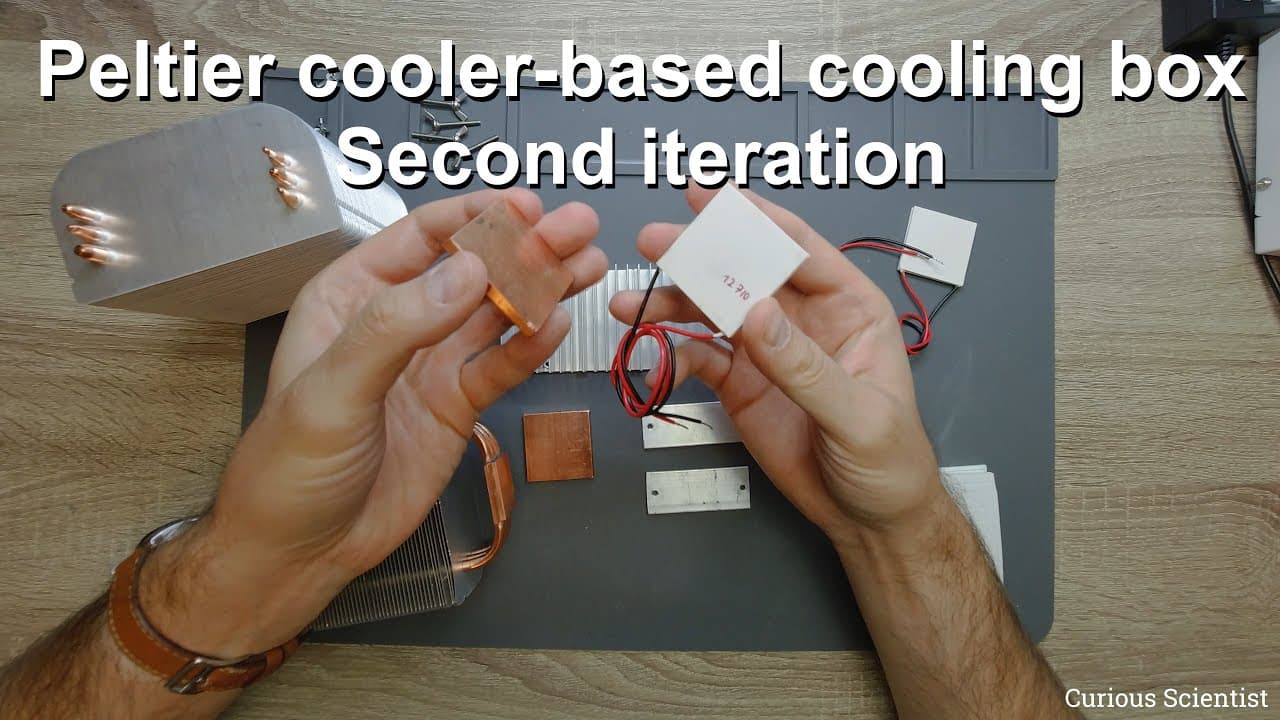

Building a Peltier cooler-based cooling box - Second iteration [Part 3/6]

TL;DR

The video focuses on optimizing a homemade cooling box with better cooling technology and configuration.

Transcript

welcome everyone in this video i will try to improve my previously introduced cooling box so if you check my previous two videos you could see that i was trying to build a cooling box and that cooling box was using a tec-12 708 patio cooler so i was using just a single patch air cooler an 8 amp per unit i was trying to run it around 4 to 5 amperes ... Read More

Key Insights

• 🥵 The effectiveness of peltier coolers can be significantly enhanced with the right thermal management strategies, such as using CPU coolers and heat sinks.
• 😎 Proper airflow is essential in cooling systems; it helps to avoid thermal pockets and promotes uniform temperature distribution.
• 🥵 Thermal conductivity and the configuration of materials used (like copper plates) play critical roles in optimizing heat transfer.
• ⌛ Measurements of temperature over time can reveal insights into system performance and areas needing improvement.
• 🥵 High currents can inadvertently produce excessive heat, leading to decreased system efficiency.
• 🈸 Efficient thermal paste application is fundamentally important for minimizing thermal resistance between contacting components.
• 🥵 Enhancements to insulation can improve cooling systems by minimizing external heat transfer.

Questions & Answers

Q: What were the initial problems encountered with the first cooling box design?

The initial design struggled with insufficient cooling performance, primarily due to inadequate heat transfer and issues with contact between the peltier cooler's hot side and the CPU cooler. The system didn’t effectively lower temperatures as intended, prompting the need for enhancements.

Q: How does the use of a copper plate improve the cooling system?

The copper plate acts as a thermal bridge that helps spread heat evenly from the hot side of the peltier cooler to the CPU cooler. This reduces the thermal stress on the peltier unit by ensuring better heat distribution, thus potentially lowering temperatures more effectively than without the plate.

Q: What role do the fans play in the cooling setup?

The fans are crucial for promoting air circulation around the CPU cooler and within the cooling box, enhancing heat dissipation. Proper airflow prevents hotspots and ensures that the cold air reached from the cooling units is evenly distributed throughout the entire box.

Q: What was the outcome of the experiments conducted in the video?

The experiments indicated improvements in cooling efficiency with better temperature control inside the cooling box. Measurements revealed that the cold side of the setup achieved a temperature as low as -6 degrees Celsius, demonstrating enhanced performance compared to previous configurations.

Q: How was thermal paste utilized in the cooling setup?

Thermal paste was applied between various contact surfaces to minimize thermal resistance between the cooling components. This helps facilitate better heat transfer from the peltier coolers to the copper plate and subsequently to the CPU coolers.

Q: What conclusions were drawn regarding current adjustments during testing?

The tests suggested that increasing the current did not yield the expected cooling improvements; instead, it might have increased the heat load. Future adjustments will focus on lowering the current to optimize cooling performance based on measured temperature responses.

Q: How did the presenter plan to further improve the cooling box design?

The presenter intends to enhance the box by sealing it better against heat leakage and implementing additional airflow strategies, such as using more fans or optimizing their placements, to ensure consistent temperature regulation and efficient cooling.

Q: What was noted about the insulation of the cooling box in the video?

The presenter identified issues with heat leakage and addressed insulation by lining the box with aluminum foil. This method serves to reflect heat away and improve the internal cooling efficiency by maintaining lower ambient temperatures inside the box.

Summary & Key Takeaways

• The video continues from previous attempts to create an effective cooling box using a TEC-12710 peltier cooler, finding previous methods insufficient.

• The presenter upgrades the system by adding a high-performance CPU cooler and a copper plate to enhance thermal conductivity and reduce temperature disparities.

• Measurements from experimental setups show improvements and the need for further adjustments based on temperature readings and airflow distribution inside the box.
