Impedance

TL;DR

Impedance is the opposition to the flow of electrical current in AC circuits, determined by inductors, capacitors, and resistors.

Transcript

in this video we're going to focus on the concept of impedance what is impedance before we can answer that question let's talk about resistance so what does a resistor do in a circuit a resistor opposes the flow of electrical current here's a symbol of a resistor and the unit for resistance is ohms whenever you increase the resistance of a circuit ... Read More

Key Insights

• 🔙 Resistance opposes electrical current in both DC and AC circuits, while impedance is specific to AC circuits.
• 🔙 Impedance is determined by inductors, capacitors, and resistors in an AC circuit.
• ❓ Capacitive reactance and inductive reactance are measured in ohms and determine the opposition provided by capacitors and inductors respectively.
• ❓ The impedance of a circuit can be calculated using the impedance formula.
• ❓ In inductive reactance, frequency increases cause an increase in impedance, while in capacitive reactance, frequency decreases cause an increase in impedance.
• 🟰 At the resonant frequency, inductive reactance equals capacitive reactance, resulting in a circuit's impedance being solely determined by resistance.
• 💐 The current flowing in a circuit can be calculated using the RMS voltage divided by impedance.

Questions & Answers

Q: What is the difference between resistance and impedance?

Resistance opposes the flow of electrical current in both DC and AC circuits, while impedance represents opposition specifically in AC circuits. Impedance is influenced by inductors, capacitors, and resistors.

Q: How are capacitive reactance and inductive reactance measured?

Capacitive reactance is measured using the formula 1/2πfc, where f is the frequency and c is the capacitance. Inductive reactance is measured using the formula 2πfL, where f is the frequency and L is the inductance.

Q: What happens to inductive reactance and capacitive reactance as frequency changes?

As frequency increases, inductive reactance also increases, while capacitive reactance decreases. The opposite is true at lower frequencies.

Q: How is impedance calculated in an AC circuit?

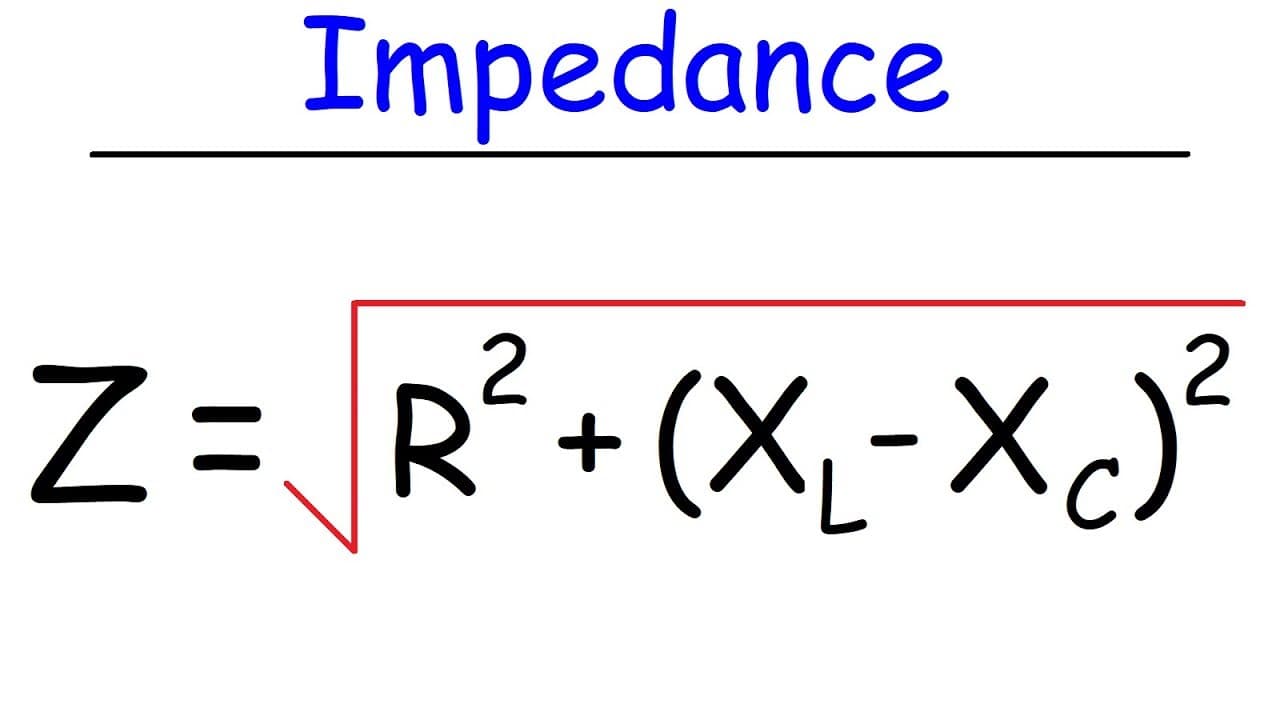

Impedance is calculated using the formula √(R^2 + (XL - XC)^2), where R is the resistance, XL is the inductive reactance, and XC is the capacitive reactance.

Summary & Key Takeaways

• Resistance opposes the flow of electrical current in a circuit, while impedance represents opposition in AC circuits.

• Impedance is determined by inductors, capacitors, and resistors, and is measured in ohms.

• Capacitive reactance and inductive reactance are the oppositions provided by capacitors and inductors respectively.
