Half-Width 10 Inch Server Rack Project for Raspberry Pi

TL;DR

A compact half-width 10-inch 6U rack can organize routers, switches, and Raspberry Pis in one clean, enclosed setup. The featured cabinet has a locking glass door, removable side panels, top and bottom vents, wall-mounting holes, and space for a 120 millimeter fan. Custom 3D-printed mounts and a patch panel make otherwise limited 10-inch hardware options more flexible. Read on for the components, installation details, and planned upgrades.

Transcript

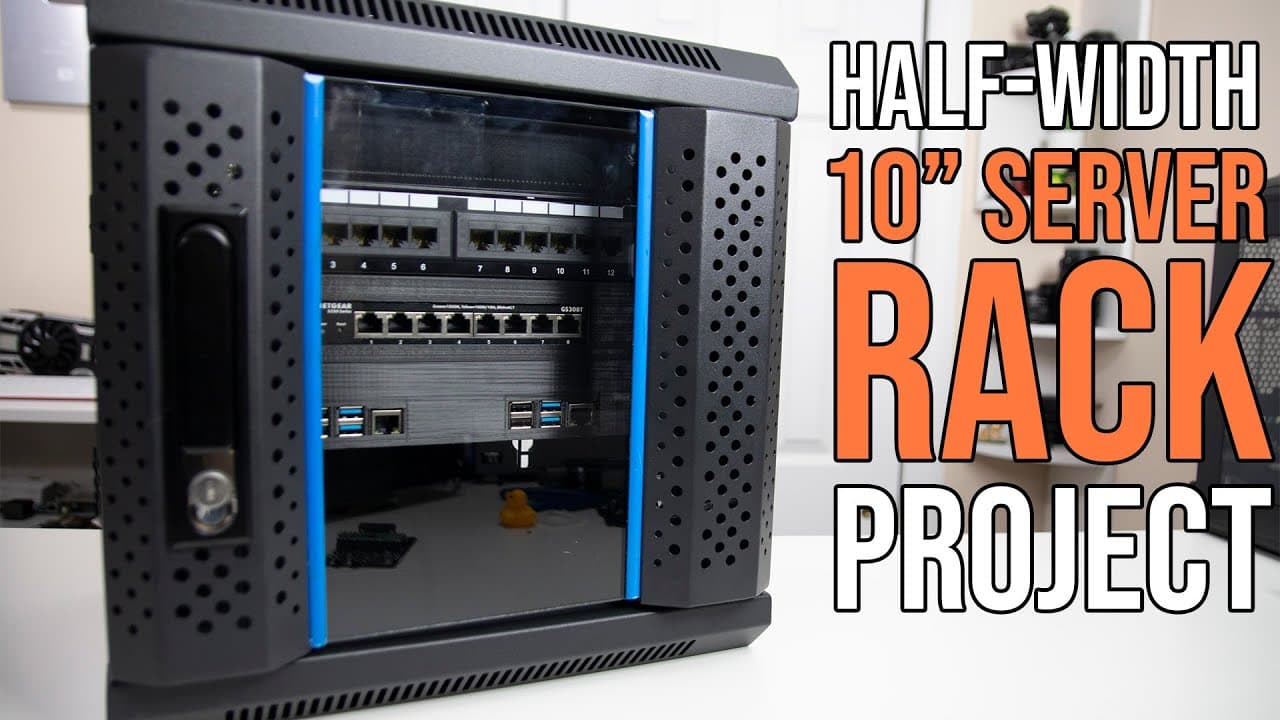

hey guys it's don here from nova spare tech and welcome back to the channel and today i'm gonna be showing you guys a project that i'm working on which is this 10 inch half width 6u server rack so let's get started recently i've been doing some upgrades to my server closet it's actually behind this wall and i decided to buy a rack and then when i w... Read More

Key Insights

• 🛟 The server rack serves as an effective and organized solution for home networking equipment, reducing clutter.
• 🎨 It is designed to facilitate easy access to devices for maintenance and upgrades.
• 🤗 The ability to customize the rack through 3D printing opens up new possibilities for housing various devices securely.
• 🛟 The smart switch complements the server setup by providing control over device functionality and settings.
• ❓ Proper ventilation is crucial in maintaining device performance and longevity in a compact setup.
• ⚖️ Cost-effective options for networking hardware can be found, balancing performance and price.
• 🫵 Engaging with viewers for suggestions promotes community involvement and shared learning.

Questions & Answers

Q: What is the Half-Width 10 Inch Server Rack Project for Raspberry Pi?

It is a fully enclosed, half-width 10-inch 6U rack intended to serve as a mini server cabinet. The presenter plans to place routers, switches, Raspberry Pis, and other equipment inside it so the network setup stays centralized, clean, and less cluttered.

Q: What equipment can fit inside the 10-inch 6U server rack?

The presenter chose the 6U version because it should fit his routers, switches, and Raspberry Pis. He also mentions that the rack is sold in 4U and 10U versions for people who need a smaller or larger cabinet.

Q: What access and security features does the server rack have?

The rack has a glass front door with a locking mechanism, and the door can be switched to the other side. It also provides locking side-panel access, making it possible to reach equipment from the side.

Q: How is the compact server rack ventilated?

The enclosure has many vents on both the top and bottom. It also supports a 120 millimeter fan on top, and the presenter says the fan that normally comes with the rack will be shipped to him separately.

Q: Can the server rack be mounted on a wall or used as a standing cabinet?

Yes. The back has mounting holes for wall installation, while the included rubber feet allow the enclosure to stand on a surface.

Q: How are Raspberry Pis mounted in the 10-inch rack?

Because relatively little equipment comes with 10-inch rack mounts, the presenter uses 3D-printed panels for Raspberry Pis, routers, and switches. The featured designs include mounts for Raspberry Pi 3 and Raspberry Pi 4, along with printable blank panels for unused spaces.

Q: What does the patch panel add to the rack setup?

The patch panel lets network wires connect at the back while presenting the connections at the front. The presenter says it costs about twenty dollars and notes that wiring it requires a 110 punch down tool.

Q: Why does the project use a smart switch?

The smart switch allows the presenter to control individual ports, supports gigabit networking, and costs fifty dollars. It also supports bonding two network interfaces, such as two interfaces on a Synology NAS, so they can act as one for double the throughput.

Summary & Key Takeaways

• The video showcases a compact 10-inch half-width 6U server rack ideal for organizing home network equipment including routers, switches, and Raspberry Pis.

• The presenter discusses the features of the rack, such as a glass door, side panel access, and ventilation, emphasizing its design efficiency for a clean setup.

• Additional components like a smart switch and patch panel are introduced, along with 3D printed accessories that enhance the functionality and customization of the server rack.
