How to Convert Binary Coded Decimal to Decimal

TL;DR

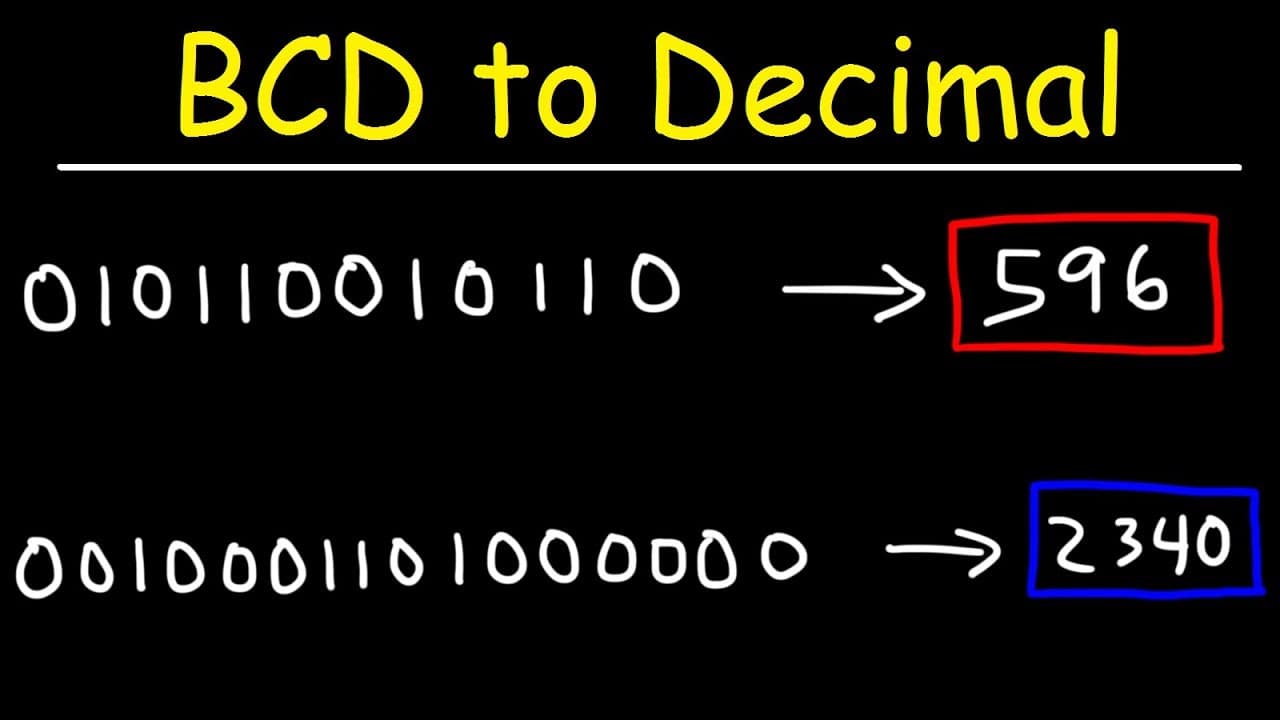

To convert a binary coded decimal (BCD) to a decimal number, split the BCD into groups of four bits, assign values using the 8-4-2-1 system, and sum the values of each group. For example, BCD 010110010110 equals 596, and following this method will yield accurate decimal conversions.

Transcript

in this lesson we're gonna talk about how to convert a binary coded decimal into a decimal value so let's start with in this example zero one zero one one zero zero one zero one one zero so how can we convert this BCD number into a decimal number binary coded decimal values they're broken down into 4 bit numbers and what you want to do is you want ... Read More

Key Insights

• 👨‍💻 Binary coded decimal (BCD) values are split into groups of four for conversion to decimal.
• 🫦 Each group of four bits in BCD represents a decimal digit, with positions corresponding to values 8, 4, 2, and 1.
• 👥 Converting BCD to decimal involves summing the values of each group.
• 🥺 Leading zeros in BCD are not significant for conversion to decimal.
• #️⃣ BCD numbers can be converted to binary by converting each digit separately, but the resulting binary number may not be in the most efficient representation.
• 🆘 Regular practice with examples helps in mastering BCD to decimal conversion.
• ❓ The process of converting BCD to decimal is straightforward and accurate if the steps are followed correctly.

Questions & Answers

Q: How do you convert a binary coded decimal into a decimal number?

To convert a BCD into a decimal number, split it into groups of four. Assign values to each group based on the positions of the non-zero bits (8, 4, 2, 1). Add up the values for each group to get the decimal number.

Q: What does each group of four binary numbers in BCD represent?

Each group of four binary numbers in BCD represents a digit in a decimal number. The positions of the bits within the group correspond to the values 8, 4, 2, and 1 respectively.

Q: Are leading zeros significant in a BCD number?

Leading zeros in a BCD number are not significant. They can be omitted when converting the BCD to a decimal number as they do not contribute to the overall value.

Q: Can BCD numbers be converted directly into binary?

BCD numbers can be converted into binary by converting each BCD digit into a 4-bit binary number and combining them. However, the resulting binary number may not necessarily be in the most compact binary representation.

Summary & Key Takeaways

• Binary coded decimal (BCD) values are broken down into 4-bit numbers, with each group representing a digit in a decimal number.

• To convert a BCD number to decimal, split it into groups of four, assign values to each group, and add them up.

• Practice examples: BCD 010110010110 corresponds to 596, BCD 011110000001 corresponds to 781, and BCD 001000000000 corresponds to 2,340.
