How to Drill Through Hard Materials with EDM Technology?

TL;DR

Electrical Discharge Machining (EDM) enables drilling through hard materials like hardened steel and tungsten carbide without exerting pressure, ensuring precision. The process works by using electrical sparks to erode the material, and it requires a specialized setup, including a motion controller and water filtration system, to operate effectively.

Transcript

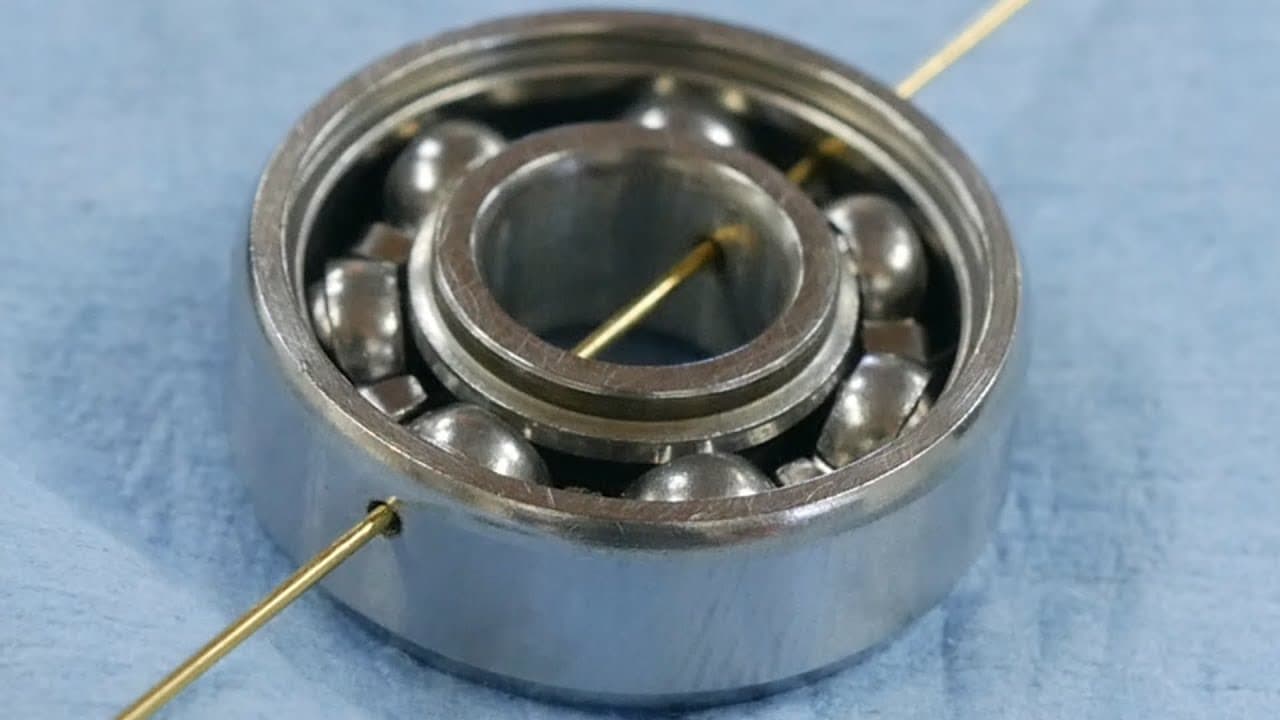

today on Applied Science I'm going to show you how I built this EDM drilling machine now it's not electronic dance music that actually electrical discharge machining and it can do some pretty cool things one of the key features of the EDM process is that the drill or the machining electrode doesn't exert any pressure on the thing that it's machinin... Read More

Key Insights

• 😒 EDM drilling machines use electrical sparks to erode material without exerting pressure, enabling precise drilling.
• 🤕 Components like the motion controller and customized drill head are essential for efficient EDM operations.
• 😄 EDM can drill through tough materials like hardened steel and tungsten carbide with ease.
• 💦 Water filtration and control of water conductivity are crucial for maintaining the efficiency of an EDM system.
• ❓ The EDM process requires careful setup to manage electromagnetic interference and ensure proper functioning.
• 👻 Wire EDM complements hole drilling EDM, allowing for the creation of complex 2D and 3D shapes.
• 🤗 Open-source kits like Open Builds offer cost-effective solutions for constructing EDM machines.

Questions & Answers

Q: What is EDM and how does it differ from conventional drilling?

EDM stands for Electrical Discharge Machining, where electrodes don't put pressure on the material being drilled, unlike conventional drilling methods. This allows for precise drilling without any straying off of the drill bit.

Q: What materials can the EDM machine drill through?

The EDM machine can effortlessly drill through materials like hardened steel bearings and tungsten carbide, which are typically challenging for conventional drill bits to penetrate due to their hardness.

Q: How does the EDM process function and what components are essential for its operation?

The EDM process relies on high-frequency sparks generated between electrodes to erode material. Components like a high-current power supply, motion controller, and customized drill head are crucial for efficient EDM operations.

Q: What are the key benefits of using EDM for high aspect ratio holes?

EDM is excellent for creating high aspect ratio holes as it allows for precise drilling without concerns about material hardness. It offers superior accuracy and consistency for intricate hole drilling operations.

Summary & Key Takeaways

• The EDM process allows for drilling without exerting pressure, making it ideal for drilling round contours.

• EDM can drill through hard materials like hardened steel and tungsten carbide effortlessly.

• The EDM drilling machine setup involves components like the motion controller and customized drill head.
