What Is Peltier Cooling and How Can You Use It Effectively?

TL;DR

Peltier cooling uses the thermoelectric effect to create temperature differences for cooling applications. To use it effectively, ensure proper cooling techniques such as water cooling and insulation, as these minimize Joule heating and maximize efficiency. Monitor the current to prevent overheating and optimize cold side temperatures.

Transcript

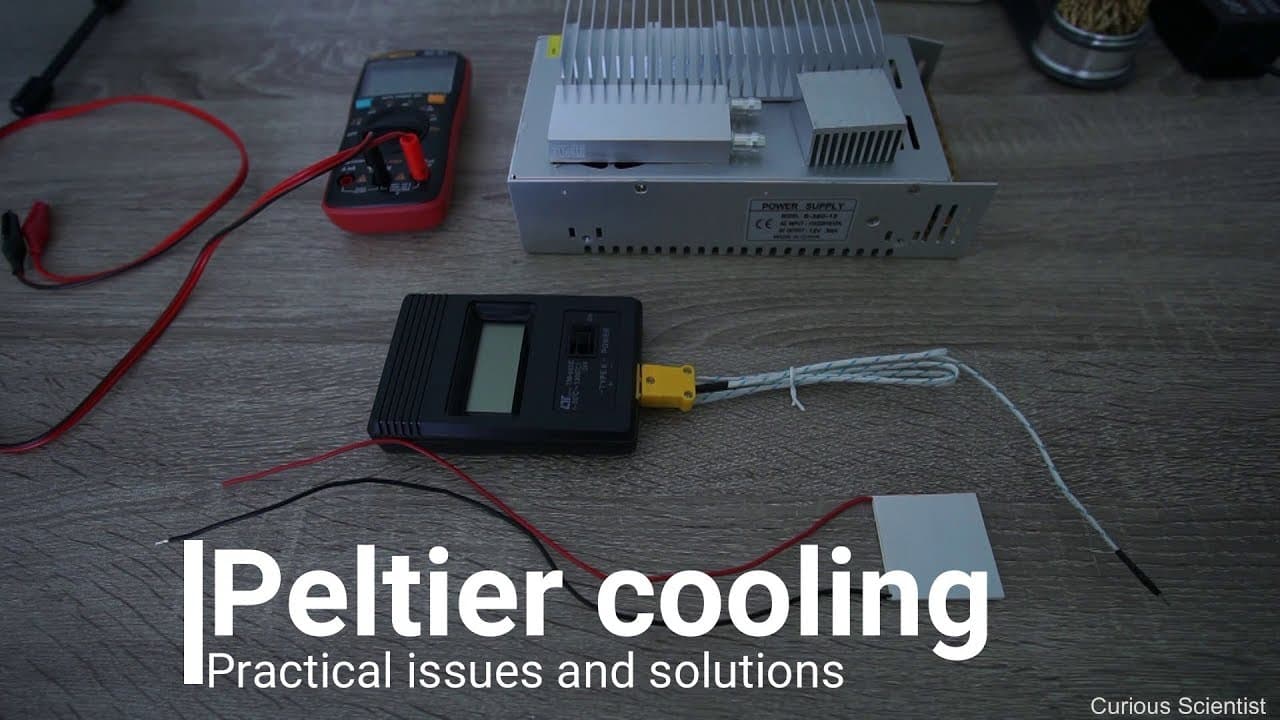

so welcome again in this video I'm going to talk about the practical aspects of a patio element and also I will discuss the Patti effect so as I showed in the theoretical video I I explained that basically there are two effects if you have a temperature gradient then you can produce current which can be measured basically you measure the voltage so... Read More

Key Insights

• 😎 The Peltier effect allows conversion of temperature differences into electrical voltage, making it useful for cooling applications.
• 😎 Thermoelectric elements require meticulous setup, including proper insulation and cooling techniques, to operate efficiently.
• 😘 Water cooling is highlighted as a highly effective method for maintaining low temperatures in Peltier systems due to its high heat capacity.
• 🎮 Joule heating poses a significant challenge in Peltier applications, underscoring the importance of controlling current to optimize temperature differences.
• 😎 Regular monitoring and adjustments may be necessary to achieve maximum efficiency during Peltier cooling operations.
• 🥵 Using high-quality thermal grease to ensure optimal contact between cooling elements is critical for efficient heat exchange.
• 😎 The balance of current and cooling efficiency plays a vital role in reaching desired temperatures without causing thermal overload.

Questions & Answers

Q: What is the basic principle behind the Peltier effect demonstrated in the video?

The Peltier effect involves the generation of a temperature difference when an electric current passes through two dissimilar conductors. In this video, it is illustrated using a thermoelectric element that can cool one side while heating the other. The mechanism can be applied for cooling applications, such as in refrigerators or cooling electronic devices by maintaining a constant temperature gradient.

Q: Why is water cooling recommended over air-based systems for Peltier elements?

Water cooling is preferred due to its superior heat capacity, allowing for more effective temperature control. The video discusses that while air-based systems can be sufficient, they do not maintain low temperatures effectively when used with Peltier elements. Water cooling ensures stable temperatures over time and is less prone to fluctuations compared to air cooling.

Q: What are the limitations of using unregulated power supplies with Peltier elements?

Unregulated power supplies can supply maximum current to the Peltier element, leading to an increase in Joule heating that exceeds efficient cooling levels. The video highlights that without regulation, the risk of heating rather than cooling increases, ultimately preventing the maximum cooling potential of the device from being reached.

Q: How does the size and insulation of the setup influence the efficiency of the cooling?

The size and insulation of the cooling setup greatly impact its efficiency. The video emphasizes using insulating materials like styrofoam to reduce heat flux towards the cold side and maintaining a small setup for better temperature control. Proper insulation minimizes heat loss, ensuring that the cooling is maximized while the hot side remains efficiently cooled.

Q: What results did the demonstration achieve regarding temperature differences?

In the demonstration, as the current was increased up to 4.5 amperes, the cold side temperature reached nearly -21.6 degrees Celsius, which is an impressive difference of around 40 degrees from ambient room temperature. The use of an insulated, water-cooled setup allowed for these low temperatures to be achieved without significant Joule heating effects impacting performance.

Q: What are some practical challenges in maintaining effective cooling with Peltier elements?

Several challenges include maintaining a sufficiently cool hot side, avoiding Joule heating through careful current regulation, and ensuring that the cooling system is insulated effectively. The video suggests that miscalculations in system design or the use of inadequate cooling methods can result in inefficient operation, preventing the desired cooling from being achieved.

Summary & Key Takeaways

• The video describes the operation of Peltier elements, which utilize a temperature gradient to generate electrical voltage or provide cooling.

• Various practical applications for Peltier elements are discussed, including their use in thermocouples, refrigerators, and as cooling units for electronic components.

• The importance of proper cooling techniques, such as water cooling and insulated setups, is emphasized to achieve effective temperature differentials without excessive Joule heating.
