Let's discuss about Peltier coolers #6 - Personal air conditioner

TL;DR

The experiment reveals limitations of Peltier coolers for effective air conditioning.

Transcript

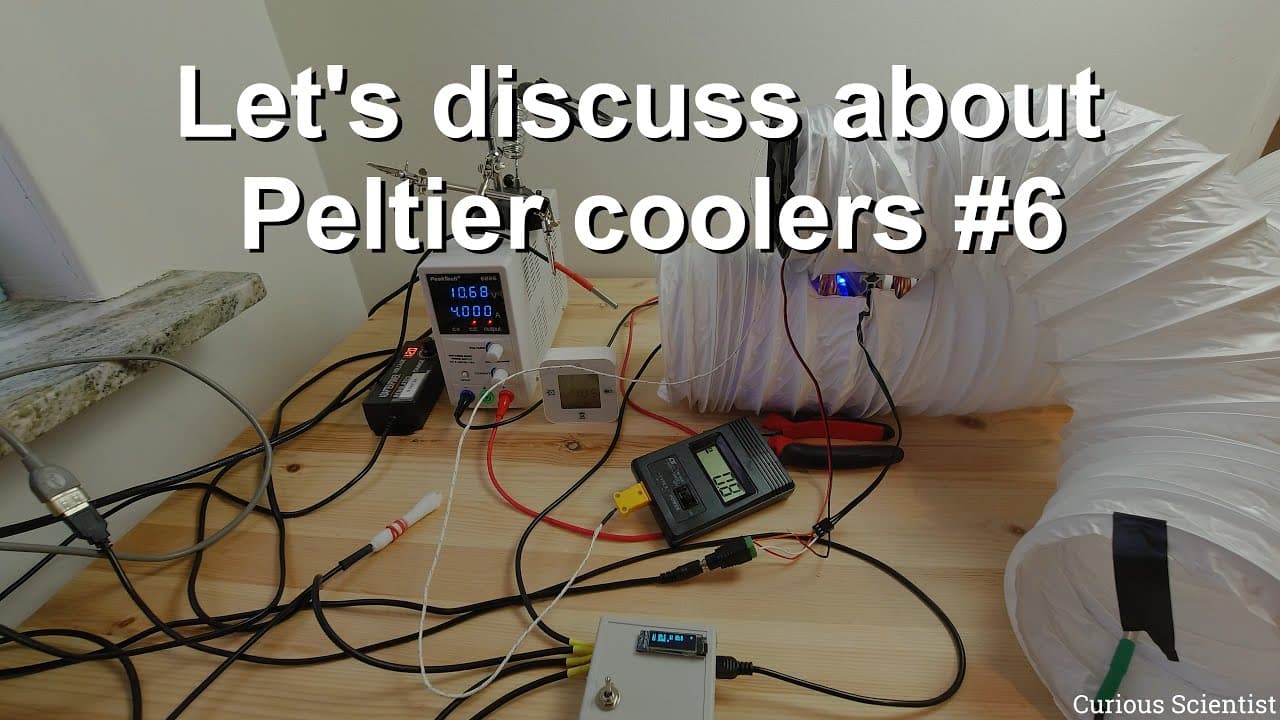

welcome everyone in this video i'm going to continue the work with the patio cooler that i assembled in the previous video so i have several things on my table right now and let's start with the cooler just for the sake of simplicity so this is what i assembled in my previous video so inside this uh small structure i have a tec-12708 particular whi... Read More

Key Insights

• 🛩️ A Peltier cooler can drop ambient air temperatures, but its effectiveness is limited to small, localized areas.
• 😎 Continuous warm air exposure drastically reduces the cooling efficiency of Peltier units, making them unsuitable for larger spaces.
• 😘 Even under optimal conditions, the cooling achieved is minimal, often not surpassing a mere degree lower than room temperature.
• 😎 Peltier-based cooling systems require careful airflow management to prevent warm air from compromising the cooling process.
• 🌍 The initial temperature readings show that under no load, the Peltier element performs better; however, real-world application demands thorough understanding and adjustment of thermal loads.
• 😎 Comparisons between Peltier cooling and compressor-based cooling illustrate that traditional systems remain far superior for serious air conditioning needs.
• 👱 The video serves as a debunking of popular misconceptions regarding the capabilities of Peltier coolers in achieving effective air conditioning.

Questions & Answers

Q: What type of cooling system is being explored in this video?

The video explores the capabilities and limitations of a Peltier cooling system, specifically using a TE-C12708 Peltier element typically employed in small refrigerators and coolers. The purpose is to see if it can serve as a personal air conditioner, cooling localized areas instead of entire rooms.

Q: How does the presenter plan to maintain airflow in the cooling system?

The presenter uses fans strategically placed to manage airflow through the cooler's hot and cold sides. By sucking air through the system instead of pushing it, he hopes to minimize warm air leakage and enhance cooling efficiency, allowing colder air to be directed towards a small area.

Q: What were the results of the temperature measurements during experiments?

Throughout the experiments, the cold side recorded slight temperature drops, achieving around 1.5 degrees Celsius below the ambient room temperature under continuous operation. However, maintaining lower temperatures became more difficult when introducing warm air from the environment, demonstrating the challenges of keeping up with thermal loads.

Q: What crucial insight does the presenter share about the efficiency of Peltier coolers?

The presenter highlights that Peltier coolers, despite their ability to achieve low temperatures without thermal load, struggle to maintain these temperatures when continuously exposed to warm air from the room. Thus, they are inefficient for cooling larger spaces and can only offer minimal localized cooling.

Q: Why does the presenter argue against using Peltier units as air-conditioning solutions?

He argues that Peltier units do not provide sufficient cooling power for air conditioning applications. The significant thermal load from moving air negates their efficiency, resulting in minimal temperature drops, thereby making it impractical and unfeasible for reliance on these systems as substitutes for conventional air conditioning units.

Q: What modifications does the presenter consider for future attempts with the Peltier unit?

The presenter mentions plans to place the cold side of the Peltier unit into a box to investigate different cooling scenarios. This adjustment aims to explore new configurations that may enhance cooling efficiency or better utilize the Peltier unit’s capabilities in confined environments.

Summary & Key Takeaways

• The video continues an experiment with a patio cooler using a Peltier element, assessing its ability to function as a personal cooler rather than a full air conditioner.

• Through various tests, the presenter explores the cooling efficiency by adjusting voltage and current, noting small temperature decreases under optimal conditions but significant challenges in maintaining consistent cooling under load.

• The conclusion emphasizes that while Peltier coolers can drop temperatures slightly, they are not practical for significant cooling in larger spaces, making them unsuitable replacements for traditional air conditioning systems.
