What is the pressure inside of a soda can?

TL;DR

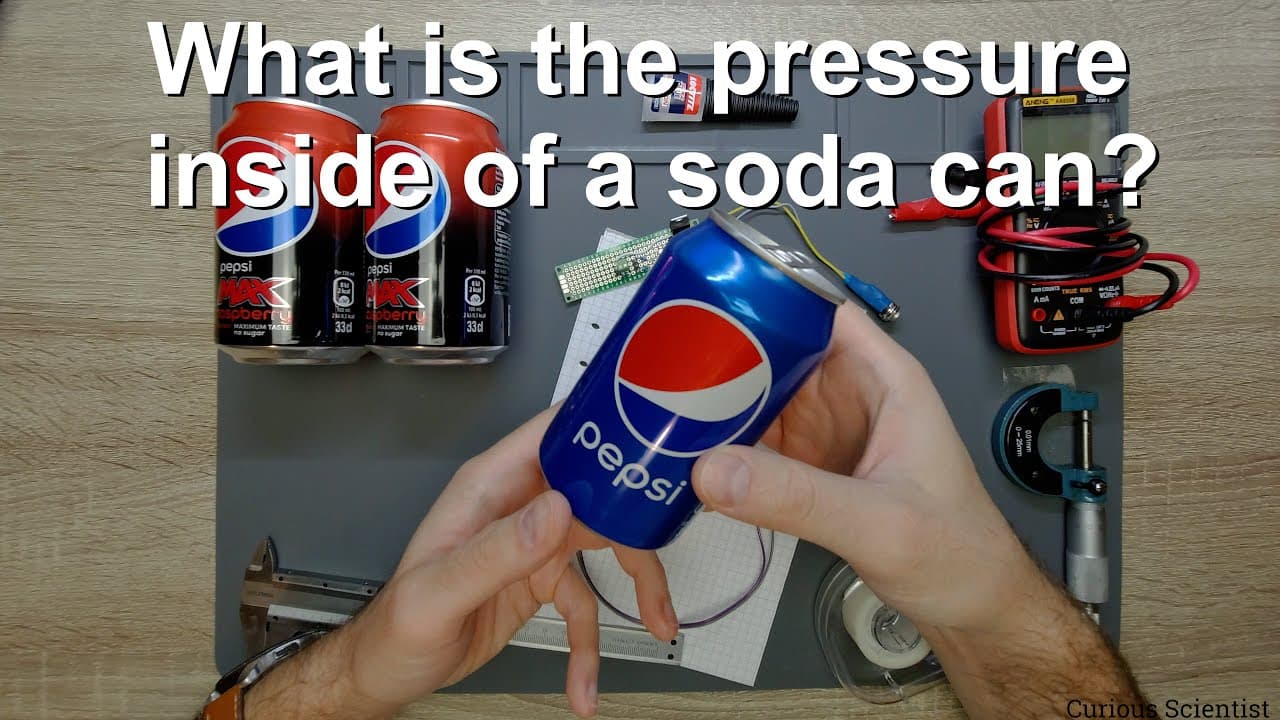

This video demonstrates measuring soda can pressure using a strain gauge.

Transcript

welcome everyone in this video i will try to measure the internal pressure of the can that you can see here so this is an empty can but these two guys are filled with pepsi they are unopened so they are under pressure and by using a strain gauge i will try to determine the pressure inside this can and how we do this is basically a very simple princ... Read More

Key Insights

• ✋ Unopened soda cans maintain higher internal pressure due to dissolved CO2, which is released upon opening.
• 🤭 Hoop stress relates internal pressure to the deformation of cylindrical structures, allowing pressure calculations based on physical parameters.
• 🦾 Strain gauges convert mechanical deformation into electrical signals, providing a practical method to measure pressure changes.
• ❓ The experiment emphasizes the importance of accurate measurement techniques and comparisons with existing data for validation.
• 🌉 Familiarity with electronics, such as Wheatstone bridges and voltage regulators, is beneficial for similar experiments.
• 🦺 Basic safety precautions are crucial when manipulating sharp objects and conducting experiments involving potential spills.
• 🛟 The project serves as an engaging educational tool for demonstrating physics principles in a tangible setting.

Questions & Answers

Q: Why do unopened soda cans have internal pressure?

Unopened soda cans contain carbonated beverages where CO2 gas is dissolved under pressure. This results in a higher internal pressure than atmospheric pressure, which is maintained until the can is opened, allowing the excess CO2 to escape and dropping the internal pressure.

Q: What principle is used to measure the internal pressure?

The experiment utilizes the principle of hoop stress, which states that internal pressure creates circumferential stress around the can. Changes in this stress can be measured through strain gauges, converting mechanical deformation into electrical signals to estimate pressure.

Q: How does the strain gauge work in this experiment?

The strain gauge measures the change in resistance caused by deformation in the can's structure when internal pressure varies. By attaching the strain gauge to the can, it detects the elastic deformation related to hoop stress, allowing for voltage readings to be translated into pressure estimations.

Q: What materials are used to conduct the experiment?

The main materials include unopened soda cans, a strain gauge, a Wheatstone bridge circuit for precise voltage measurements, a power supply, and a micrometer for measuring the can's wall thickness. These tools help to estimate the internal pressure systematically.

Q: What safety precautions should be taken?

Before starting the experiment, protective gloves should be worn due to the sharp edges of the can. Additionally, it's essential to clean the can properly to avoid spills and create a suitable surface for gauge attachment. Care should be taken when applying heat during the soldering process.

Q: What were the measured and calculated internal pressure values compared to online research?

The experiment estimated the internal pressure at approximately 394 kPa, which is about 3.9 bar. This figure is consistent with various online sources found during research, which reported values ranging from about 270 kPa to over 600 kPa, validating the experimental results.

Q: What are some potential applications for measuring internal pressure using strain gauges?

Strain gauges can be used for pressure monitoring in various vessels and containers, especially in food and beverage industries, laboratories, and construction. Their sensitivity allows for accurate pressure detection and monitoring, crucial for safety and quality control.

Summary & Key Takeaways

• The video outlines an experiment to measure the internal pressure of unopened soda cans using a strain gauge, focusing on the principle of hoop stress.

• The presenter explains the setup process, including the preparation of the can's surface, attaching the strain gauge, and measuring initial resistance and output voltage.

• After opening the can, the pressure drop is observed through voltage changes, leading to calculations that estimate internal pressure in comparison with online research.
