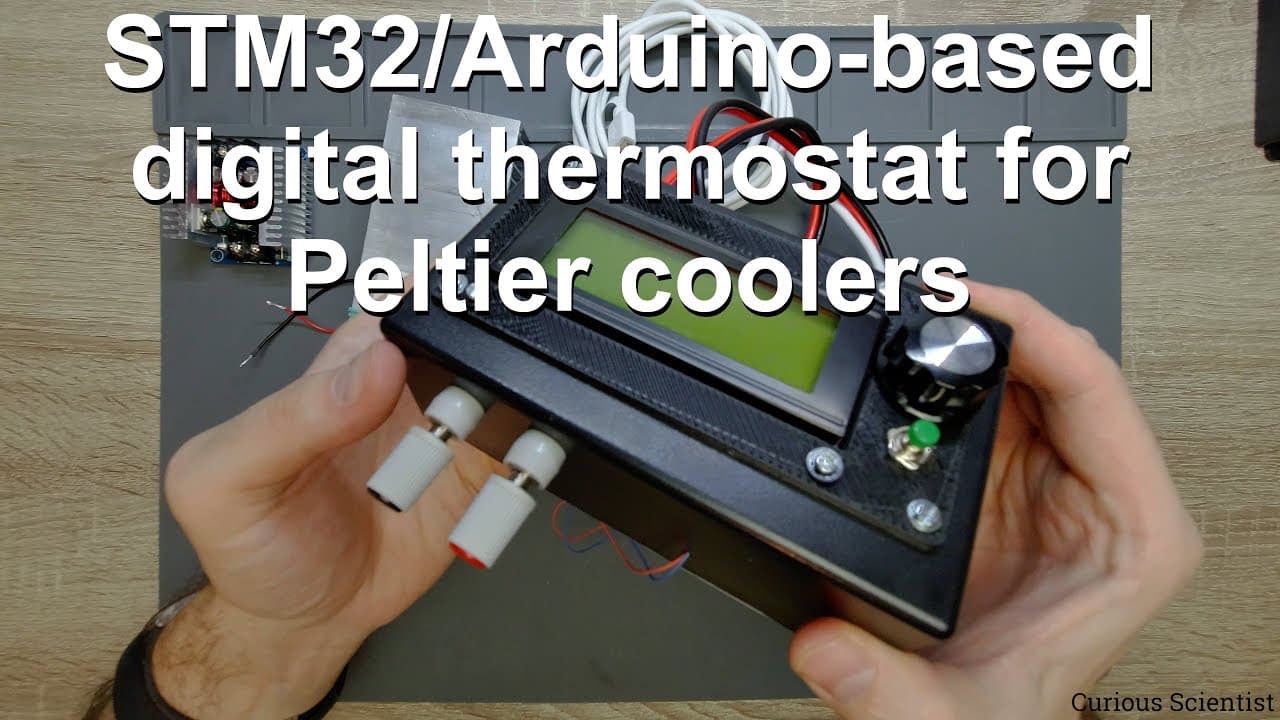

Microcontroller controlled digital thermostat for Peltier coolers

TL;DR

The video showcases building a programmable thermostat to control a patio cooler's temperature.

Transcript

welcome everyone in this video i'm going to show you the final version of my thermostat so this thermostat is used to control the temperature on the cold side of the patio cooler and for demonstration i will use this tec-1270 patio cooler with now passive cooling uh on it so i just use this huge heatsink to cool the hot side uh the purpose will be ... Read More

Key Insights

• 👤 The thermostat effectively manages temperature control using a TEC-1270 cooler, responding to precise user settings.
• 👻 Integration of a digital potentiometer alongside an STM32 microcontroller allows for nuanced control of output power based on real-time temperature readings.
• 😎 The NTC thermistor is pivotal in providing accurate temperature data, driving the cooling response of the system.
• 😫 The rotary encoder and LCD interface create a user-friendly experience for setting operational parameters.
• 🎮 The choice of update intervals helps manage thermal inertia, balancing responsiveness with stability in temperature control.
• 🦾 Challenges in mechanical assembly underscore the importance of precision in DIY electronics projects.
• 😎 The design principles applied here can be adapted to other cooling systems or electronic applications requiring temperature regulation.

Questions & Answers

Q: What components are essential for building this programmable thermostat?

Key components include a TEC-1270 cooling module, an NTC thermistor for temperature sensing, a digital potentiometer for adjusting output power, an STM32 microcontroller or Arduino for processing, and a rotary encoder with an LCD for user interface purposes. Each of these components works together to achieve effective temperature regulation.

Q: How does the NTC thermistor work in this thermostat setup?

An NTC thermistor has a negative temperature coefficient, meaning its resistance decreases as the temperature increases. In the thermostat setup, it is integrated into a voltage divider circuit, and the output voltage is read by the microcontroller to calculate the current temperature, allowing the system to adjust cooling power accordingly.

Q: What role does the rotary encoder play in the thermostat?

The rotary encoder allows the user to navigate a menu interface on the LCD to set parameters like the desired temperature and update intervals. By turning the encoder, users can increment or decrement values, and pressing the button selects an option, thereby providing an intuitive means of interaction.

Q: Why was a digital potentiometer used in the setup?

A digital potentiometer is utilized to control the output power of the DC-DC converter in response to the feedback from the temperature sensor. This allows for precise adjustment and regulation of the cooling power supplied to the patio cooler, ensuring the set temperatures are maintained effectively.

Q: What challenges did the creator face during the assembly of the system?

The creator faced challenges in achieving precise cuts for the 3D printed front panel and encountered issues with the mechanical functionality of the rotary encoder button. Additionally, the thermal inertia of the cooling system posed a challenge for accurately maintaining the temperature without overshoot.

Q: How does the update interval affect the thermostat's performance?

The update interval defines how frequently the temperature is measured and adjustments are made to the cooling power. A shorter interval may lead to overshooting of the desired temperature due to the system's thermal inertia, while a longer interval allows the system to stabilize and respond appropriately to temperature changes.

Q: What are the potential applications for this thermostat beyond a patio cooler?

This universal thermostat design can be adapted for various applications including refrigeration systems, home HVAC systems, or any environment where precise temperature control is critical. It can be used in incubators, climate-controlled storage, or for cooling electronic components, demonstrating its versatility.

Summary & Key Takeaways

• The video provides a detailed demonstration of a programmable thermostat designed to manage temperature on the cold side of a patio cooler using a TEC-1270, showcasing the integration of various components like a microcontroller and digital potentiometers.

• The presenter explains the functionality of the thermostat, including temperature measurement using an NTC thermistor and adjusting the output power based on a user-defined goal temperature and tolerance settings via a rotary encoder and an LCD display.

• The code behind the thermostat is discussed, revealing the logic for temperature control, user interaction, and the importance of update intervals to prevent temperature overshooting due to thermal inertia.
