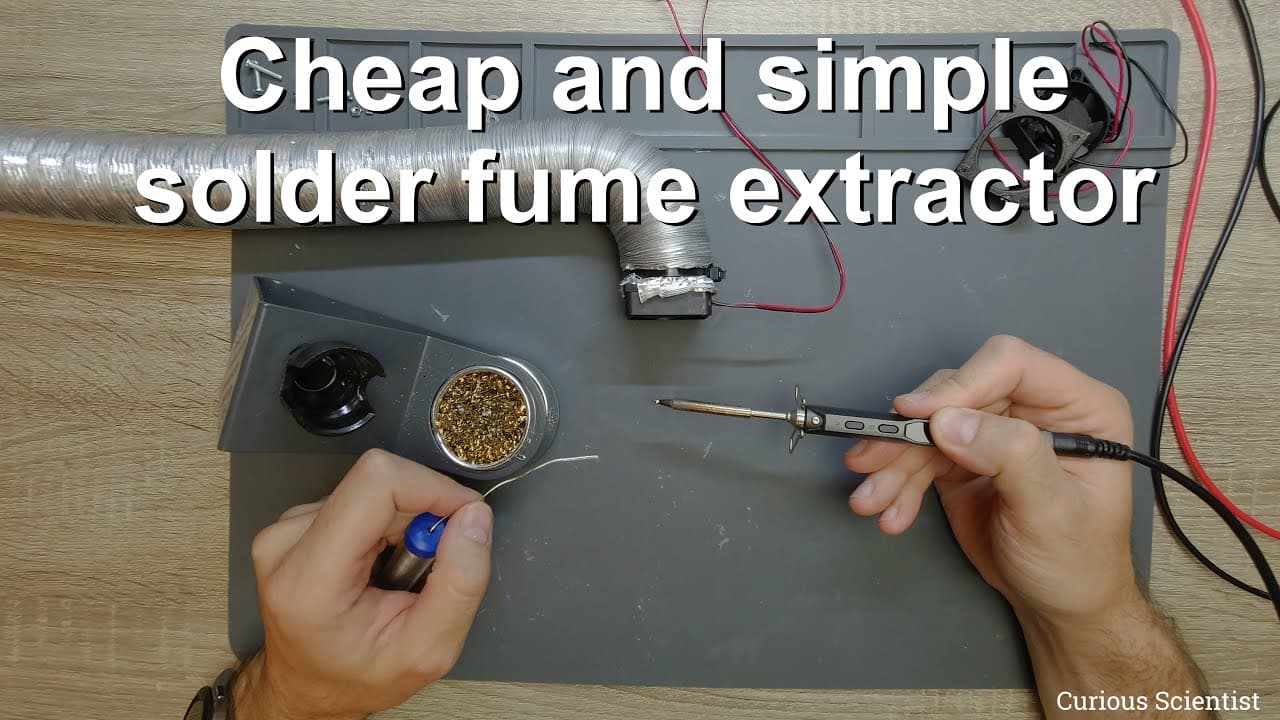

Building a cheap and simple solder fume extractor

TL;DR

The video discusses a DIY solution for removing toxic soldering fumes effectively.

Transcript

welcome everyone in this video i will try to provide a solution for an often overlooked issue so i have a few things on my desk and i will talk about them soon but first of all let me tell you what is the often overlooked problem so when you work with electronics uh very often you have to solder and i guess many of you don't have fans which are rem... Read More

Key Insights

• 🧑‍⚕️ Soldering produces harmful fumes, making proper ventilation crucial for health and safety.
• 😘 The DIY fume extractor is low-cost, simple to assemble, and significantly enhances the soldering experience by maintaining a clear workspace.
• 💨 Flexible tubing provides versatility in directing fumes away from the user, preventing exposure to toxic particles.
• 🧑‍⚕️ Many users overlook the importance of fume extraction, risking their long-term health in the process.
• 💦 The video encourages electronics enthusiasts to take proactive measures in ensuring a safe working environment.
• 😀 The presenter aims to share innovative DIY solutions to common problems faced in electronics projects.
• 🎨 Educational resources and designs for the DIY fume extractor are made available at the presenter's website.

Questions & Answers

Q: Why is it essential to manage soldering fumes?

Managing soldering fumes is crucial as they can contain hazardous materials, including heavy metals and other toxic substances. Prolonged exposure can lead to serious health issues, including respiratory problems or even long-term diseases. Ensuring proper ventilation while soldering protects users from inhaling these harmful particles.

Q: What materials are needed to create the DIY soldering fume extractor?

To create the DIY soldering fume extractor, you will need a 4x4-inch fan, flexible aluminum tubing, bolts, nuts, washers, and optional materials like hot glue for sealing. The total cost is relatively low, estimated to be under $10. These materials are often readily available at local hardware stores.

Q: How does the flexible tubing enhance the fume extraction process?

The flexible tubing allows for an adaptable setup that can be positioned conveniently based on the soldering workspace. Its semi-rigid nature helps direct the toxic fumes away from the user's face efficiently, while being compact enough to not obstruct the work area, thereby improving airflow and visibility.

Q: What modifications can improve the effectiveness of the fume extractor?

Enhancing the effectiveness can involve positioning the fan closer to the source of fume emission or using a more powerful fan. Additionally, connecting the extractor directly to a larger fan can create a stronger suction effect, ensuring that more smoke is captured before it spreads into the surrounding air.

Summary & Key Takeaways

• The video addresses a common issue among electronics enthusiasts: the harmful fumes produced during soldering. Many users lack effective ventilation systems to filter these toxic fumes.

• The presenter demonstrates a DIY solution using a 4x4-inch fan and flexible tubing, significantly improving air quality during soldering tasks, while being compact and cost-effective.

• A live demonstration shows the effectiveness of the setup in directing smoke away from the user, emphasizing the importance of protecting one's health while working with electronics.
