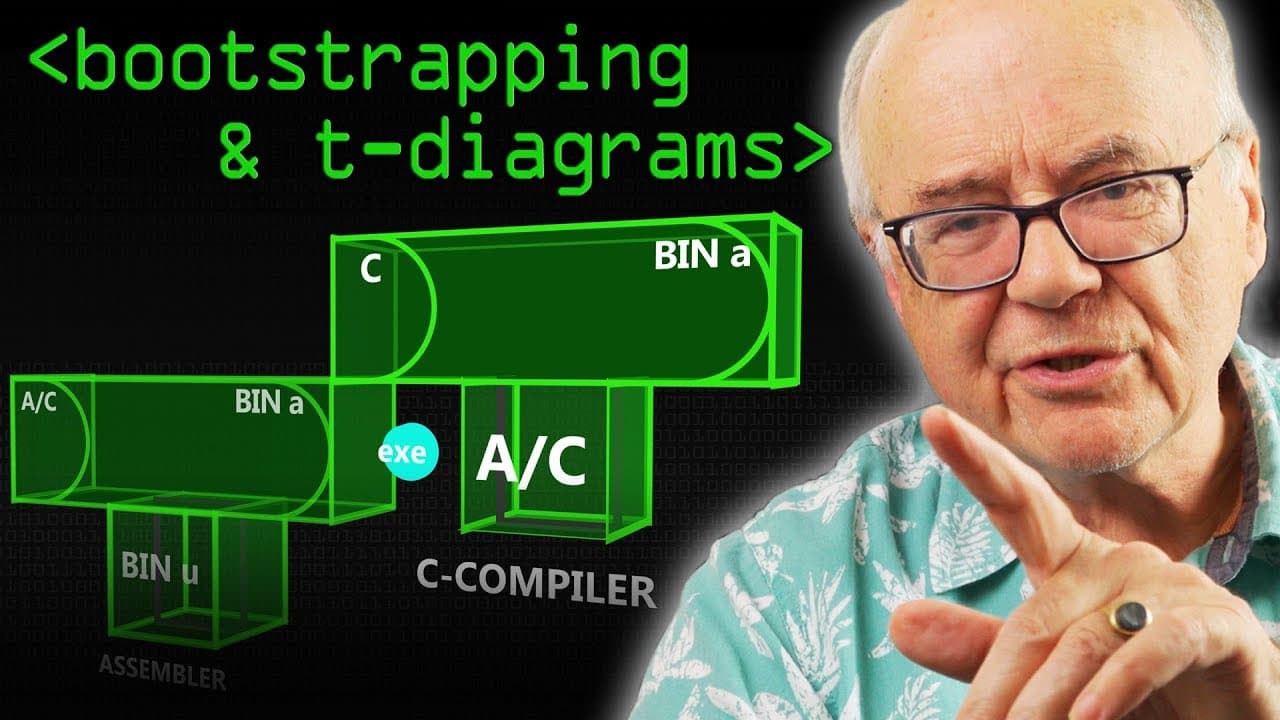

Bootstrapping with T-Diagrams - Computerphile

TL;DR

Bootstrapping uses an existing lower-level tool, such as an assembler, to create a higher-level tool such as a C compiler. T-Diagrams show a program’s input, output, implementation language, and the executable tool needed to translate its source code into binary. They also clarify why the compiler’s own binary quality can differ from the binary it generates. Read on to follow each stage of the process.

Transcript

We've talked about various aspects of bootstrapping a lot on computer file Going way back, I think to a ton robin video three or four years ago now which is doing very well Dilemma of the chicken and the egg. He talks very well about the essential nature of bootstrapping and so on but he very carefully avoids going into detail because it does get c... Read More

Key Insights

• 🎚️ Bootstrapping involves using lower-level tools to build higher-level tools.
• 🦖 The T-Diagram visualization helps in understanding the relationship between different tools in the bootstrapping process.
• 👨‍💻 Assemblers are used as the initial tool to convert assembler code into executable binary files.
• 🏛️ The binary files produced by the assembler are used to build higher-level tools like C compilers.
• 🔨 The quality of the binary produced by a tool may differ from the tool itself.
• 🤑 Bootstrapping can be a recursive process, with each tool being built on top of the previous ones.
• 🔨 The choice of tools and their quality can affect the overall effectiveness of the bootstrapping process.

Questions & Answers

Q: What is bootstrapping with T-Diagrams?

Bootstrapping is the process of using an available tool, such as an assembler, to build a higher-level tool such as a C compiler. T-Diagrams visualize how source code is processed by an executable translator to produce runnable binary code.

Q: What does a T-Diagram represent?

A T-Diagram represents a program’s input, output, and the language in which the program was written. Positioning another T-shaped block against it shows the executable compiler or translator required to process that program.

Q: How does a T-Diagram show C compilation?

The diagram places a C compiler beside a program written in C. The compiler accepts the C statements as input and generates an executable binary, such as an a.out file on UNIX.

Q: Why must a C compiler itself be an executable binary?

The compiler must be runnable on the machine’s architecture to perform the translation. It accepts C statements and generates binary code that can run directly on the hardware.

Q: What is the role of an assembler in bootstrapping a compiler?

An assembler provides a lower-level starting point for implementing an initial C compiler. Once that compiler exists, the process can move from the assembler-based version toward higher-level implementations.

Q: Is an assembler the same as a compiler?

An assembler is like a compiler, but it operates at a lower level. It translates low-level programming input into binary that the machine can execute.

Q: Does a compiler’s own binary determine the quality of the binary it produces?

No direct link is required between the quality of the binary running the compiler and the quality of the binary it generates. A compiler may run slowly yet eventually produce acceptable output, or it may produce output worse than the binary used to run the compiler itself.

Q: Why does bootstrapping lead to a chicken-and-egg problem?

A C compiler must come from somewhere, but its first version may itself have been written using an assembler. Asking how that assembler was created pushes the same question backward toward the earliest process of entering ones and zeros by hand.

Summary & Key Takeaways

• Bootstrapping involves using lower-level tools to build higher-level tools.

• T-Diagrams can be used to visualize the bootstrapping process.

• The process starts with an assembler, which is used to build a C compiler, and then the C compiler is used to build a higher-level tool.
