Testing the "240 W" Peltier cooler refrigeration plate

TL;DR

The test reveals the cooling plate's performance is disappointing and below advertised specifications.

Transcript

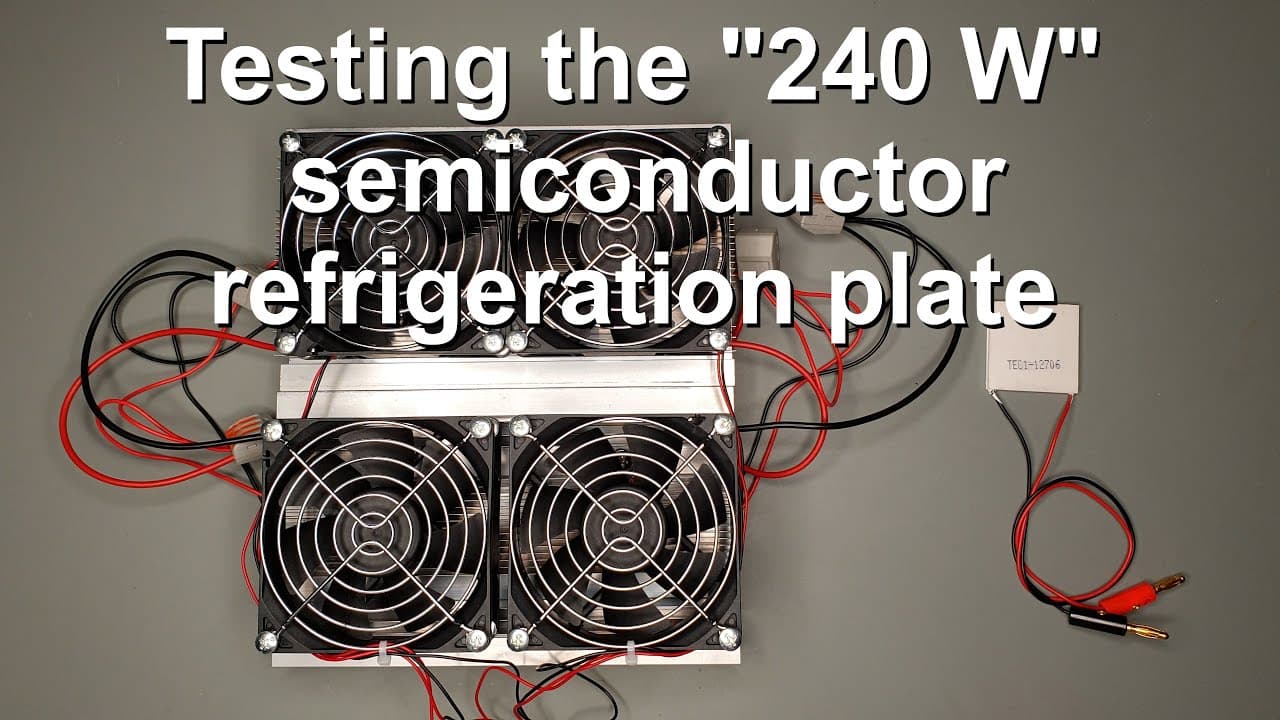

welcome everyone in this video I'm going to test this device which is shown on the top of my desk and this device is a 240 Watts pad here cooler powered cold plate so I will use this or parts of this device for my upcoming project and before directly using it in that project I thought that I must test this carefully to see first if it fits my appli... Read More

Key Insights

• 😎 The cooling device's actual performance was significantly below advertised specifications, revealing a gap between marketing and reality.
• 😎 Testing demonstrated that Peltier cooler performance is highly contingent on the quality and type of heatsinks utilized, impacting the overall cooling capability.
• 🥵 The experiment illustrated the importance of thermal interface materials, such as high-quality thermal grease, in enhancing heat transfer between components.
• 😀 The challenges faced with thermocouple accuracy highlight the need for precise monitoring equipment in experimental setups involving temperature regulation.
• 🥶 Observations noted the condensation on the cold side as humidity levels rose, emphasizing environmental factors' influence on cooling effectiveness.
• 😎 The versatility of using adjustable DC-DC converters allowed for better management of power supplied to the cooling components, emphasizing their importance in DIY electronics projects.
• 🎨 Component quality, including fans and heatsinks, can dramatically influence a system's thermal performance, indicating the need for careful selection in design.

Questions & Answers

Q: What are the main components of the cooling device tested in the video?

The cooling device consists of four Peltier coolers, specifically the TEC 1 12705 models, and two heatsinks with attached fans. The Peltier coolers generate a cold side for cooling while the heatsinks disperse the heat produced on the opposite side. This setup is intended to create a significant temperature gradient, although testing revealed it was insufficient for desired cooling performance.

Q: Why is the cooling device's advertised wattage considered misleading?

The advertised capacity of 240 Watts pertains to the theoretical maximum of four connected Peltier coolers, each rated for 60 Watts. However, real testing demonstrates these coolers cannot achieve this output effectively, as they struggle to maintain a significant temperature differential. Therefore, the actual cooling capacity is much lower, significantly undermining expectations.

Q: What strategies did the presenter use to test the cooling device?

The presenter wired the Peltier coolers in parallel, using a power supply system with an adjustable voltage regulator. They carefully monitored the current and output temperature using thermocouples to gauge efficiency. The experiment involved running the device under controlled conditions while observing and recording its performance over time.

Q: How did the presenter attempt to improve the cooling performance during testing?

After initial tests showed subpar performance, the presenter reapplied thermal grease between the Peltier coolers and their heatsinks to enhance thermal conductivity. They also replaced the original fans with higher capacity ones for increased airflow, hoping to improve the cooling efficiency and lower the device's cold side temperature.

Q: What were the results of the cooling device after the first test run?

After running for approximately eight minutes, the cold plate reached a minimum temperature of 2.4 degrees Celsius. Unfortunately, the result was still above freezing, demonstrating the cooling plate's inefficiency in achieving the desired lower temperatures despite the applied modifications.

Q: What future plans did the presenter share regarding the cooling device?

The presenter intends to modify the cooling plate further to potentially reach lower temperatures, around minus 20 degrees Celsius. They plan to continue enhancing the design, likely employing more effective cooling components and an improved thermal connection based on their findings from this test.

Q: What challenges did the presenter face with the thermocouples during the experiment?

The presenter faced issues with the accuracy of the thermocouples, as fluctuations in readings suggested they might be miscalibrated or improperly positioned. This affected their ability to reliably monitor temperatures, particularly on the hot side of the Peltier coolers.

Summary & Key Takeaways

• The video features a thorough testing of a 240 Watts cooling pad, showcasing its components and intended application. The presenter dissects the device to check its inner workings, wiring, and heating and cooling efficiencies before actual usage.

• A key finding is that the cooling device, instead of the expected output, uses lower specification Peltier coolers, which limits its effectiveness and hinders achieving a substantial temperature gradient.

• The experiment results in room temperature cooling, but not below freezing, leading to improvements in assembly and fan application for better performance and efficiency of the cooling system.
