Electron microscope slow-motion video of vinyl LP

TL;DR

The content discusses the process of creating animations using an electron microscope and explores different recording technologies such as phonograph records, capacitance electronic disks, CD-ROMs, and DVDs.

Transcript

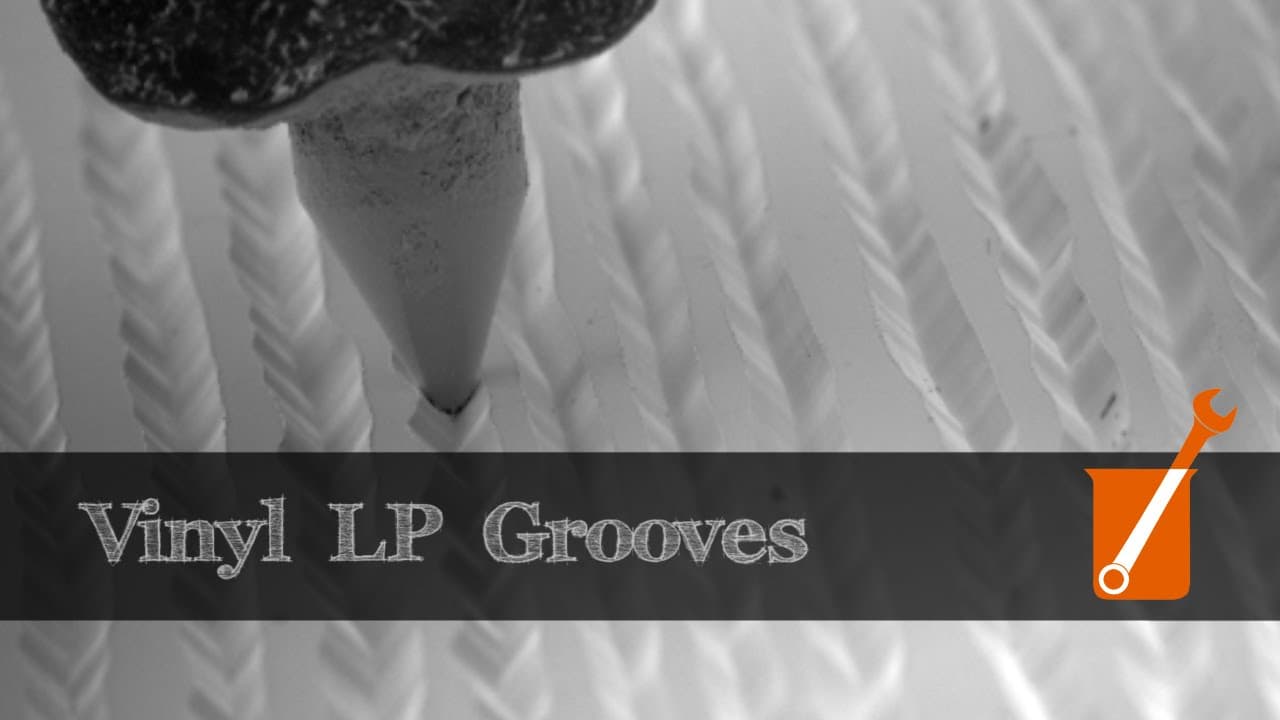

ever since setting up this electron microscope in my shop I've wanted to make animations with it showing video taken through the microscope and I've also been thinking about different recording media lately so I put the two together this weekend and came up with this this is an animation that shows a phonograph needle riding in an LP groove so in t... Read More

Key Insights

• 🥼 The electron microscope requires coating insulators with conductive material to enable imaging.
• 🪡 A homemade stylus and tonearm are used to capture the movement of the needle in the LP groove.
• ⏳ Real-time imagery mode of the electron microscope has low resolution and contrast.
• 💁 The capacitance electronic disk was an unsuccessful video format developed by RCA.
• 😒 CD-ROMs and DVDs use different methods of data storage and retrieval.
• 👻 Tweaking the electron microscope setup allows for the observation of different recording technologies.
• 🔉 The challenges and limitations of imaging different recording media are discussed.

Questions & Answers

Q: How does the electron microscope work and why is it unable to image electrical insulators?

The electron microscope works by firing electrons at the object being inspected. However, insulators trap the electrons, creating repulsion and preventing proper imaging.

Q: How is the problem of imaging insulators solved in the electron microscope setup?

To overcome the insulator problem, the objects are coated with a conductive material, such as silver, using physical vapor deposition.

Q: How is the movement of the needle captured through the recorded groove?

The stylus vibrates due to the LP groove, which moves the magnets near a coil, generating an electrical signal that gets amplified. To capture the dynamics, the magnets are removed to avoid electron path deflection in the electron microscope.

Q: What challenges are faced while capturing images and creating animations with the electron microscope?

The resolution and contrast in real-time imagery mode of the electron microscope are limited, so the process involves taking still frames by moving the record 50 microns at a time. It requires time-consuming data processing and editing to create animated gifs.

Summary & Key Takeaways

• The content describes how the electron microscope works and the challenges of imaging electrical insulators.

• The process of coating the objects in conductive material to solve the insulator problem is explained.

• The content then details the creation of a stylus and tonearm for the electron microscope, as well as the alignment process for capturing images.
