How Does a Multiplexer Select Binary Data?

TL;DR

A multiplexer selects binary information from one of several input lines and directs the chosen information to a single output line. Select variables determine which input is connected to the output, while an enable input can activate or disable the circuit. For n inputs, the required number of select lines m follows n = 2^m, or m = log2(n).

Transcript

welcome to this presentation we have already completed our subtractors and different types of adders now this is time to move to our next combinational circuit that we call as the multiplexers sometimes you will find multiplexers written as M uux marks so don't confuse yourself with these two things they are the same so what is is a multiplexer it ... Read More

Key Insights

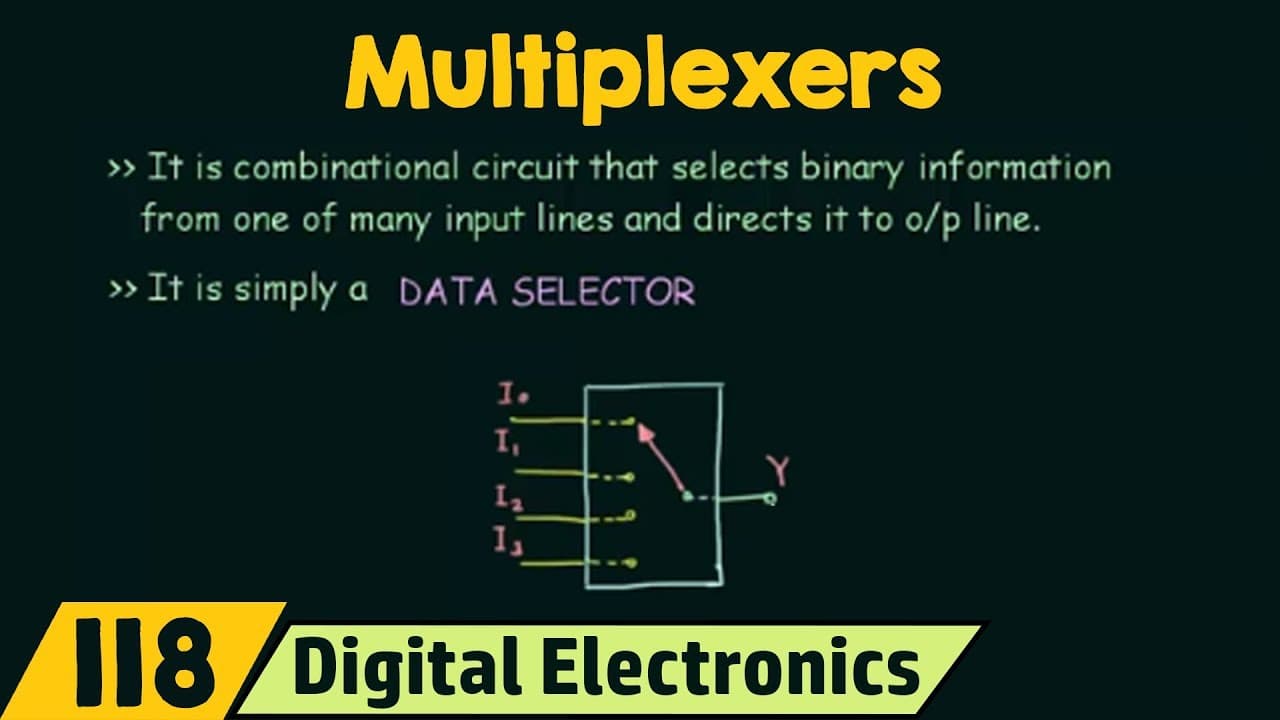

• A multiplexer is a combinational circuit that selects binary information from one of several input lines and sends the selected information to a single output line, which is why it can also be described as a data selector.
• MUX and multiplexer refer to the same circuit. A typical representation uses a rectangular box showing its input lines, one output line, and the selector variables that control which input is connected to the output.
• A multiplexer always has one output, regardless of its number of inputs. A 2-to-1 multiplexer has two inputs and one output, while larger examples include 4-to-1, 8-to-1, 16-to-1, and 32-to-1 configurations.
• The number of select lines is determined by n = 2^m, where n is the input count and m is the selector-variable count. Equivalently, m = log2(n), so four inputs require two selector variables.
• A 4-to-1 multiplexer uses two selector variables, s0 and s1. The variable s0 is the least significant bit, and s1 is the most significant bit. Selector value 00 chooses i0, while selector value 11 chooses i3.
• The enable input controls whether a 2-to-1 multiplexer operates. When enable e is zero, the circuit does not work and output y remains zero regardless of the selector value. When e is one, selection proceeds normally.
• The output equation for the presented 2-to-1 multiplexer is y = e[(s complement)i0 + si1]. With e enabled, s = 0 connects y to i0, while s = 1 connects y to i1.
• Multiplexers can reduce wiring, circuit complexity, and cost because combinational logic can be implemented with fewer gates and connections. A single multiplexer IC can also implement circuits such as a half adder, full adder, subtractor, or a given logical expression.

Questions & Answers

Q: What is a multiplexer in digital electronics?

A multiplexer is a combinational circuit that selects binary information from one of several input lines and directs the chosen information to one output line. It is also called a MUX or data selector. Selector variables control which input reaches the output, allowing one circuit to choose among several available sources of binary information.

Q: How does a multiplexer select one input line?

A multiplexer selects an input through its selector variables, also called select lines. Their binary value identifies the input that connects to the output. In the presented 4-to-1 example, selector variables s1 and s0 choose among i0, i1, i2, and i3. The value 00 selects i0, while 11 selects i3.

Q: How many select lines does a multiplexer need?

The required number of select lines follows the relationship n = 2^m, where n is the number of input lines and m is the number of selector variables. The same relationship can be written as m = log2(n). For example, four inputs require two selector variables because four equals two raised to the power of two.

Q: What are the common types of multiplexers?

The listed multiplexer types are 2-to-1, 4-to-1, 8-to-1, 16-to-1, and 32-to-1. The first number gives the number of input lines, while the second number shows that there is one output line. These types require one, two, three, four, and five selector variables, respectively.

Q: How does a 2-to-1 multiplexer work?

A 2-to-1 multiplexer has two inputs, i0 and i1, one output y, and one selector variable s. When the circuit is enabled and s equals zero, the output y is connected to i0. When the circuit is enabled and s equals one, y is connected to i1, so the selector chooses between two inputs.

Q: What does the enable input do in a multiplexer?

The enable input determines whether the presented 2-to-1 multiplexer operates. When enable e equals zero, the circuit does not work and output y equals zero, regardless of the selector variable. When e equals one, the selector becomes effective: s equal to zero chooses i0, and s equal to one chooses i1.

Q: What is the logical expression for a 2-to-1 multiplexer?

The logical expression presented for the enabled 2-to-1 multiplexer is y = e[(s complement)i0 + si1]. The first term passes i0 when s is zero, and the second term passes i1 when s is one. The enable factor e forces the complete output to zero whenever the circuit is disabled.

Q: What are the advantages and uses of multiplexers?

Multiplexers reduce the number of wires because they can implement combinational logic with fewer gates and connections. This reduction also lowers circuit complexity and cost. The presentation states that a single multiplexer IC can implement various combinational circuits, including a half adder, full adder, subtractor, and a given logical expression.

Summary & Key Takeaways

• A multiplexer, also called a MUX, is a combinational circuit and data selector. It accepts several binary-information inputs, uses select variables to choose one input, and directs that input to a single output. Regardless of how many input lines a multiplexer provides, it always has one output line.

• The relationship between inputs and select lines is n = 2^m, where n is the number of inputs and m is the number of selector variables. Therefore, 2-to-1, 4-to-1, 8-to-1, 16-to-1, and 32-to-1 multiplexers require one, two, three, four, and five select variables, respectively.

• A 2-to-1 multiplexer uses inputs i0 and i1, selector s, enable e, and output y. When e is zero, y is zero. When e is one, s selects i0 or i1. Its expression is y = e[(s complement)i0 + si1], implemented with two AND gates and an OR combination.
