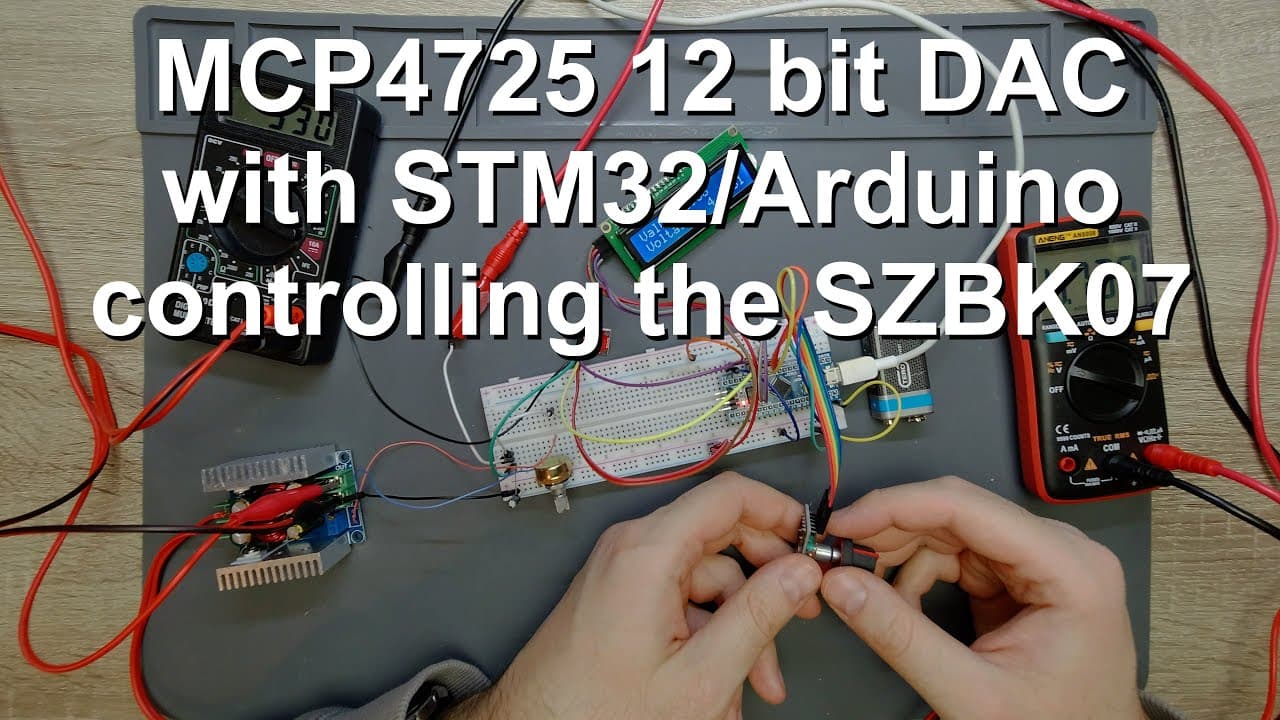

MCP4725 12 bit DAC and SZBK07 DC-DC converter

TL;DR

The MCP4725 is a 12-bit DAC used for precise analog voltage control.

Transcript

welcome everyone in this video i'm going to introduce you the mcp 4725 12-bit digital analog converter it is this guy here this black chip so this is a 12-bit dac so what it does it converts the digital value into an analog output voltage so we have an input voltage which is a reference voltage and in our case it is 5 volts and that reference volta... Read More

Key Insights

• ⚡ The MCP4725 can effectively convert digital signals from microcontrollers to precise analog voltages, making it a valuable tool in electronic design.
• 🎮 By utilizing a high-resolution 12-bit DAC, users can achieve finer control of output, allowing for precise adjustments in devices that require stability, such as temperature controllers.
• 👻 Implementing an LCD display alongside the MCP4725 allows for real-time monitoring of the DAC's output, enhancing user experience and functionality.
• 🧡 The integration of the MCP4725 with a DC-DC converter in the project offers improved voltage regulation and manipulation, useful in a wide range of electronic applications.
• ✊ The experimental setup showcases the power of combining digital control with analog output, demonstrating advancements in circuit design.
• 🛝 By ensuring a common ground reference between components, such as the ADC and DAC, reliable performance is maintained, minimizing noise and inaccurate readings.
• 🎮 The author outlines programmable control through STM32 and Arduino, enabling developers to easily adapt the system for innovative projects in various applications.

Questions & Answers

Q: What is the MCP4725 and what does it do?

The MCP4725 is a 12-bit digital-to-analog converter (DAC) designed to convert digital values (ranging from 0 to 4095) into corresponding analog output voltages. By dividing a reference voltage into 4096 equal parts, it enables precise control of analog voltage based on digital input, making it ideal for applications requiring accurate voltage manipulation.

Q: How does the resolution of the MCP4725 compare to that of an 8-bit device?

The MCP4725 offers a resolution of 1.22 millivolts per step when using a 5V reference voltage, significantly improving accuracy compared to an 8-bit digital potentiometer. The finer resolution ensures that small changes in output voltage can be achieved, allowing for more precise control in applications like temperature regulation and audio signal processing.

Q: What role does the rotary encoder play in this setup?

The rotary encoder is used to increment or decrement the digital values sent to the MCP4725. By turning the encoder, the user can adjust the voltage output from the DAC, allowing for fine-tuning of the analog voltage. This interface enhances user interaction with the system, making adjustments live and efficiently.

Q: Can the MCP4725 be used with different reference voltages?

Yes, the MCP4725 can operate with various reference voltages, such as 3V or 3.3V. However, using a lower reference voltage will result in reduced upper voltage limits. The choice of reference voltage affects the resolution as smaller increments can be achieved at higher reference voltages, maintaining the precision required for specific applications.

Summary & Key Takeaways

• The MCP4725 is a 12-bit digital-to-analog converter that transforms digital values into corresponding analog voltages, allowing for precise voltage control.

• By using the MCP4725 with a DC-DC converter, the author demonstrates how to manipulate output voltage and temperature effectively, achieving high resolution at small voltage steps.

• The setup includes a rotary encoder, an LCD display, and an STM32 microcontroller to showcase practical applications of the MCP4725 in controlling analog devices and monitoring values in real-time.
