The science of finding the balance - An instrument that puts load cells to shame*

TL;DR

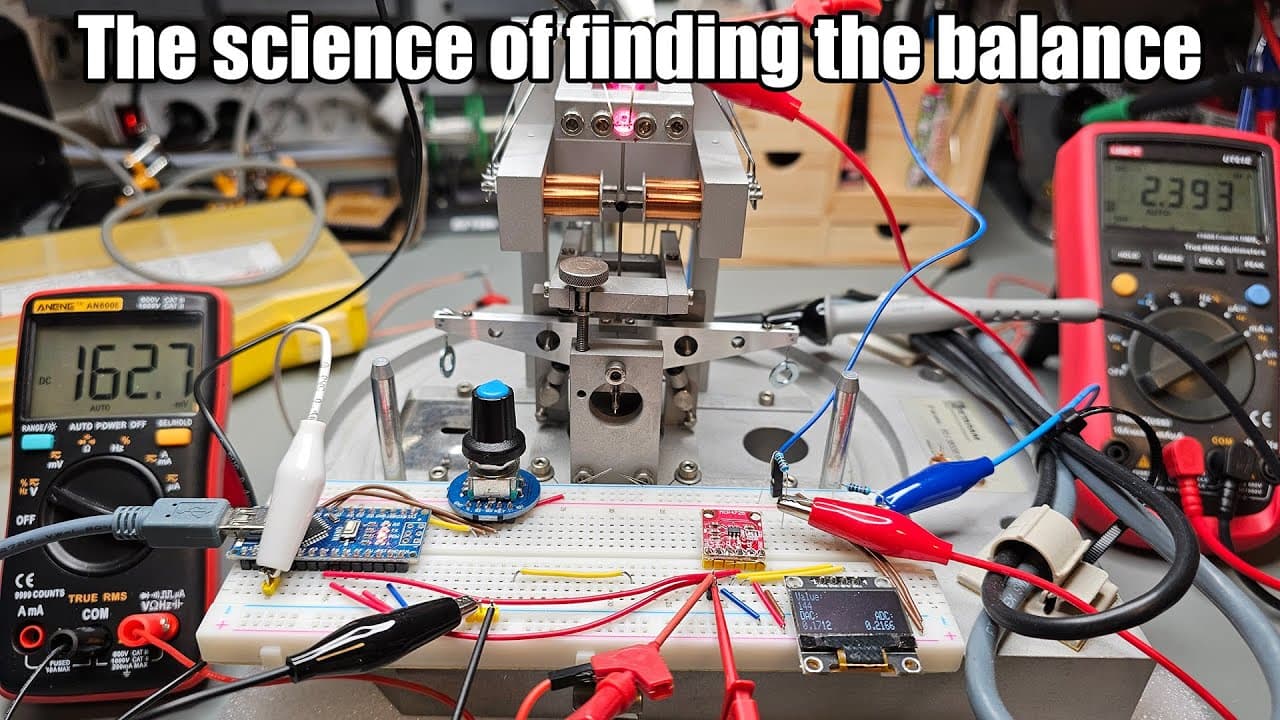

The video showcases a precise weight measurement device originally part of a thermogravimetric instrument.

Transcript

welcome everyone in this video I'm going to show you a cool instrument which is inside this enclosure and it can measure weight much much more precisely than a traditional load cell so let's open this thing and let me show you what is inside so this is the inside of the instrument it has many interesting parts and I'm going to guide you through all... Read More

Key Insights

• 💱 The mechanism can measure weight changes with extreme sensitivity, detecting changes at the microgram scale, which is crucial for research requiring precision.
• 🦾 The use of solenoids, photodiodes, and a balance arm highlights advanced engineering principles, blending electronics with mechanical systems for accurate measurements.
• 🏋️ The interactive feedback loop between weight applied and current adjustment ensures that measurements are reliable and repeatable, a significant advantage in scientific experimentation.
• 👻 The ability to operate under a controlled atmosphere enhances the device's versatility, allowing it to measure a range of materials and their properties.
• 💨 Salvaging and repurposing scientific instruments demonstrates the potential for innovation by utilizing existing technology in new ways.
• 🈸 Future applications include measuring the sublimation of volatile compounds or precise weighing of lightweight materials, showcasing the device's broad potential.
• 🏋️ The presenter encourages community engagement for acquiring calibration weights, indicating a collaborative spirit in advancing experimental methods.

Questions & Answers

Q: How does the weight measurement mechanism achieve such high precision?

The mechanism employs intricate engineering with a balance arm and delicate sensors that can detect weight changes at the microgram level. It operates under a vacuum or controlled atmosphere, improving measurement accuracy. Calibration is essential for achieving precise results, which involves correlating known weights to voltage or current readings necessary for balancing the device.

Q: What role do the coils play in the mechanism?

The coils generate a magnetic field when electrical current flows through them, enabling the balance arm to respond to weight changes. By adjusting current through these coils, the mechanism can counterbalance any weight applied to the measuring side, ensuring the system remains in equilibrium. This interaction allows the measurement of the weight based on the current required to maintain balance.

Q: What is the significance of the photodiodes in the system?

The photodiodes are critical for determining the balance position of the arm. They detect the intensity of light passing through a slit on a metal plate. Changes in the arm's position alter the light distribution between the two photodiodes, subsequently generating a current that indicates whether the system is imbalanced, guiding adjustments to the current flowing through the coils.

Q: Why was the instrument salvaged from a thermogravimetric device?

The presenter recognized the potential of the delicate weight measurement mechanism within a thermogravimetric instrument, which was otherwise set to be discarded. With capabilities to measure oxidation properties of materials, the salvaged device allows for a unique approach to precise weight measurement, making it valuable for experimental purposes and research.

Q: What types of samples can this device measure?

This precise weight measurement device can accommodate various samples, including metals, polymers, and volatile compounds. It is particularly suited for measuring weight changes due to reactions like oxidation or evaporation at high temperatures and controlled atmospheres, providing valuable insights into material properties.

Q: How can one calibrate the device for accurate measurements?

Calibration involves placing known weights on the measurement side of the balance arm and recording the corresponding voltage or current required to maintain equilibrium. By plotting multiple data points and generating a calibration curve, one can successfully relate specific current levels to the respective weights, allowing for accurate future measurements.

Summary & Key Takeaways

• The video introduces a sophisticated weight measurement device that surpasses traditional load cells in precision, capable of detecting weight changes at the microgram level.

• The mechanism utilizes a balance arm, coils, and photodiodes to measure weights, demonstrating intricate engineering principles such as feedback mechanisms for balancing.

• While the presenter lacks calibration weights for practical demonstration, they explain the theoretical framework and potential applications of this advanced measurement system.
