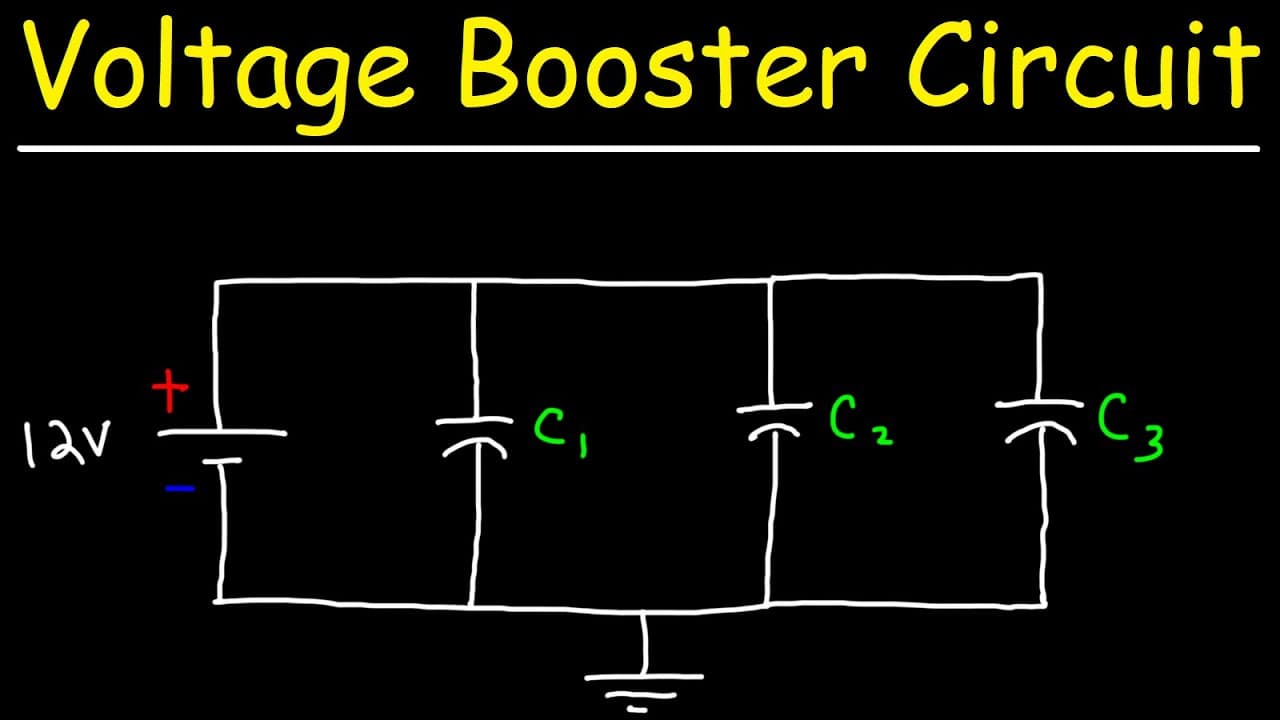

Capacitor Voltage Booster Circuit

TL;DR

Learn how to increase the voltage in a circuit by charging capacitors individually and then connecting them in series.

Transcript

in this video we're going to talk about how you can actually boost the voltage of a circuit using a battery and a few capacitors now there's many other ways in which you can boost the dc voltage you could use a boost converter circuit which uses an inductor to boost the dc voltage you can add multiple batteries in series or you can convert the dc v... Read More

Key Insights

• ⚡ Boosting voltage in a circuit can be achieved through various methods, such as using inductors, connecting batteries in series, or utilizing transformers.
• 💨 Charging capacitors individually and connecting them in series offers a simple and intuitive way to increase voltage.
• ⚡ The voltage across capacitors in parallel is the same, while the total voltage across capacitors in series is the sum of their individual voltages.
• 🥡 The time it takes for capacitors to charge depends on their capacitance and the current being delivered by the battery.
• ⌛ Different types of capacitors may require varying charging times.
• 🦸 Super capacitors may take longer to charge compared to regular capacitors.
• ⚡ To find more information on boosting voltage, one can explore videos on boost converter circuits and voltage multiplier circuits.

Questions & Answers

Q: What are some other ways to boost the voltage in a circuit?

Besides using capacitors, you can use a boost converter circuit with an inductor, add multiple batteries in series, or convert DC voltage to AC voltage and use a step-up transformer or a voltage multiplier circuit.

Q: How does charging capacitors individually and connecting them in series increase the voltage?

When capacitors are charged in parallel, each capacitor receives the same voltage. However, when connected in series, the total voltage across them adds up, resulting in a higher voltage output.

Q: How long does it take for the capacitors to charge in parallel?

The time it takes for capacitors to charge to the desired voltage depends on their capacitance and the current being delivered by the battery. For super capacitors, it may take some time, but for regular capacitors, it usually happens instantly.

Q: Where can I find more information on boosting voltage in a circuit?

You can search for videos on boost converter circuits, voltage multiplier circuits, or transformers on YouTube. The creator of this video, Organic Chemistry Tutor, has additional videos on the topic in his electronics playlist.

Summary & Key Takeaways

• There are multiple ways to boost DC voltage, such as using a boost converter circuit with an inductor, adding batteries in series, or converting DC voltage to AC voltage and using a step-up transformer or a voltage multiplier circuit.

• In this video, the focus is on a simple method of boosting voltage by charging capacitors individually and then connecting them in series.

• By connecting capacitors in series, the total voltage across them adds up, allowing for a higher voltage output.
