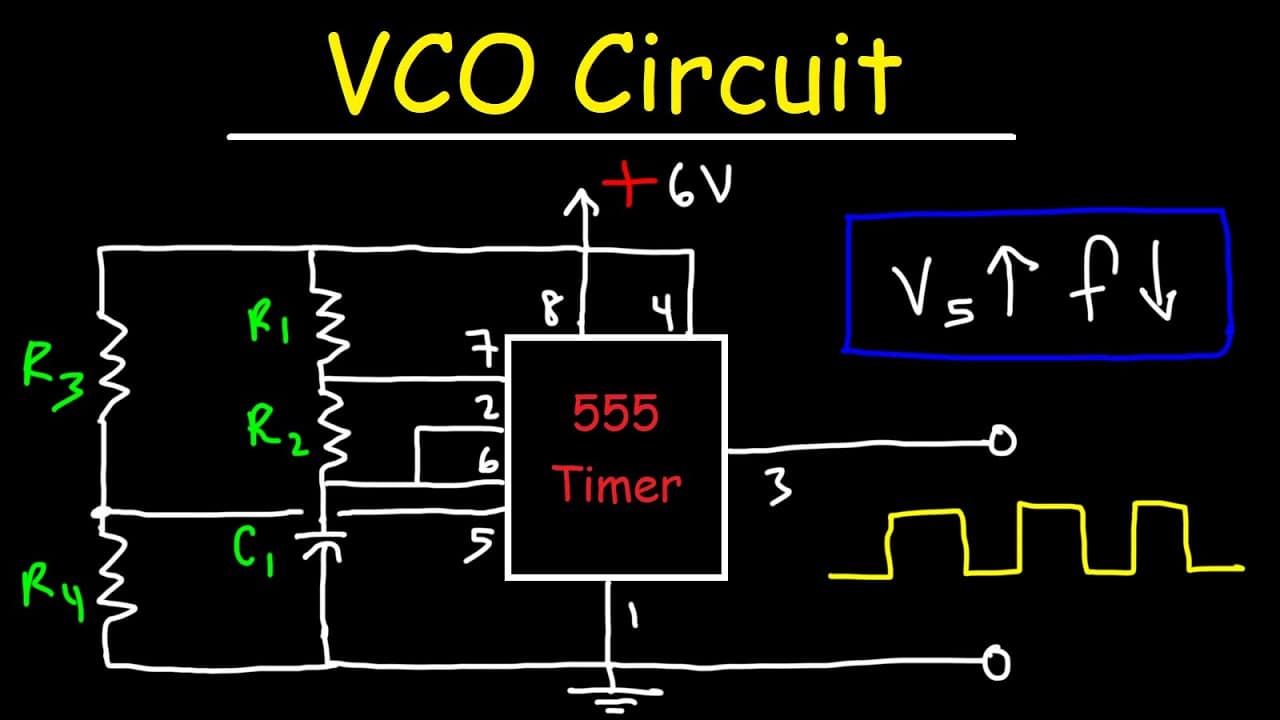

Voltage Controlled Oscillator Using 555 Timer

TL;DR

Learn how to create a voltage controlled oscillator circuit using the 555 timer, resistors, and a capacitor.

Transcript

in this video we're going to talk about how to make a vco circuit that is a voltage controlled oscillator circuit and we're going to do this by using the 555 timer integrated circuit that's going to be the most important element that will make this circuit work pins one through four are on the left these include the ground pin the trigger pin the o... Read More

Key Insights

• ⏲️ The 555 timer integrated circuit is essential for creating a voltage controlled oscillator circuit.
• 😴 Pin 5 of the 555 timer, the control voltage pin, controls the frequency of the oscillator circuit.
• 💗 The frequency of the pulse signal in the regular pulse generator oscillator circuit is determined by the values of R1, R2, and C1.

Questions & Answers

Q: What is the most important pin in the VCO circuit?

The most important pin is pin 5, the control voltage pin, which controls the frequency of the oscillator circuit.

Q: How is the frequency of the pulse signal determined in the regular pulse generator oscillator circuit?

The frequency is determined by the formula 1.44 divided by R1 + 2R2 times C1. Increasing R1 or the capacitance of C1 will decrease the frequency.

Q: How can the voltage at pin 5 be adjusted in the VCO circuit?

The voltage at pin 5 can be adjusted by using a voltage divider network with two resistors, R3 and R4. Increasing R4 will increase the voltage at pin 5, while increasing R3 will decrease it.

Q: Can a potentiometer be used to control the voltage at pin 5?

Yes, instead of using fixed resistors, a potentiometer can be used to vary the voltage at pin 5, allowing for more precise frequency control.

Summary & Key Takeaways

• This video explains how to create a voltage controlled oscillator (VCO) circuit using the 555 timer integrated circuit.

• The VCO circuit requires two resistors and a capacitor connected to the 555 timer.

• By adjusting the voltage at pin 5 of the 555 timer using a voltage divider network, the frequency of the oscillator circuit can be controlled.
