What Is the Tally Surf Surface Roughness Meter?

TL;DR

The Tally Surf Surface Roughness Meter is an electronic device used to measure surface roughness, offering greater versatility than mechanical instruments. It operates on the same principles as the Tomlinson Surface Meter, featuring a measuring head with a stylus, electrical coils, and a bridge circuit to accurately record roughness values in various conditions.

Transcript

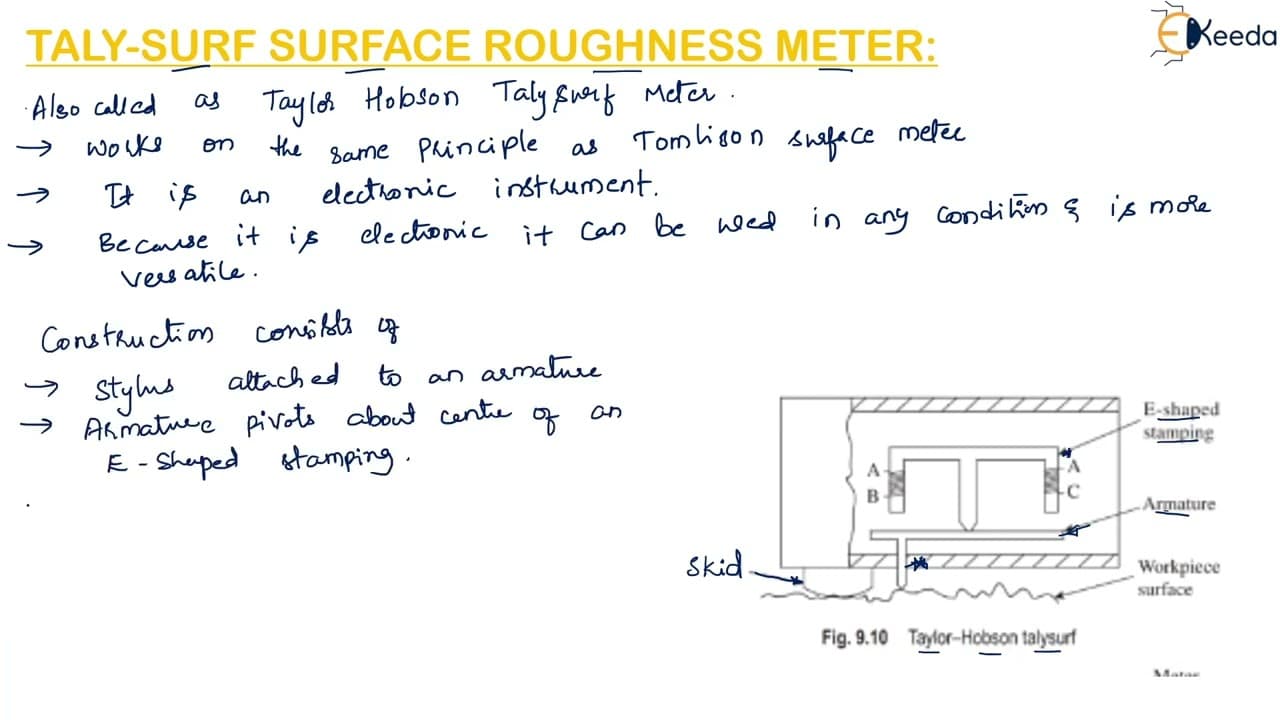

hello students today we will discuss about tally surf surface roughness meter so this tally surf meter is also called as taylor hobson tally surf meter also called as taylor hobson tally surf meter so it works on the same principle as that of tomlinson surface meter which we have discussed earlier so unlike the tom listen surface meter which is a m... Read More

Key Insights

• ❓ The Tally Surf Surface Roughness Meter is an electronic instrument used for measuring surface roughness.
• ❓ It operates on the same principle as the Tomlinson Surface Meter but offers more versatility.
• 🤒 The meter consists of various components and utilizes a bridge circuit to measure and record surface roughness.
• 🤒 The electronic nature of the meter allows for accurate measurements in any condition.
• 🪗 It can calculate and display roughness values according to standard formulas.
• 🤕 The measuring head is moved by an electric motor, providing linear movement for accurate measurements.
• 👱 Surface irregularities cause variations in the air gap, resulting in an imbalance in the bridge circuit.

Questions & Answers

Q: What is the principle behind the Tally Surf Surface Roughness Meter?

The Tally Surf Meter works on the same principle as the Tomlinson Surface Meter, but it is an electronic instrument. It measures surface roughness by detecting variations in the air gap caused by the movement of the stylus due to surface irregularities.

Q: What are the advantages of using an electronic instrument like the Tally Surf Meter?

Unlike mechanical instruments, the Tally Surf Meter is versatile and can be used in any condition. It also provides more accurate measurements and can calculate and display roughness values according to standard formulas.

Q: What components are included in the Tally Surf Meter?

The Tally Surf Meter consists of a measuring head with a stylus and armature, electrical coils, a bridge circuit, an oscillator, amplifier, demodulator, filter, meter, and a pen recorder for making permanent records.

Q: How is the Tally Surf Meter used?

The meter is operated by an electric motor, which allows the measuring head to move in a linear path. As the stylus encounters surface irregularities, the armature and air gap vary, causing an imbalance in the bridge circuit. The resulting modulation output is then amplified and recorded.

Summary & Key Takeaways

• The Tally Surf Meter is an electronic instrument that measures surface roughness and works on the same principle as the Tomlinson Surface Meter.

• Unlike mechanical instruments, the Tally Surf Meter is electronic, making it more versatile and suitable for use in any condition.

• The meter consists of a measuring head with a stylus, an armature, electrical coils, a bridge circuit, and various components like an oscillator, amplifier, demodulator, filter, meter, and recorder.
