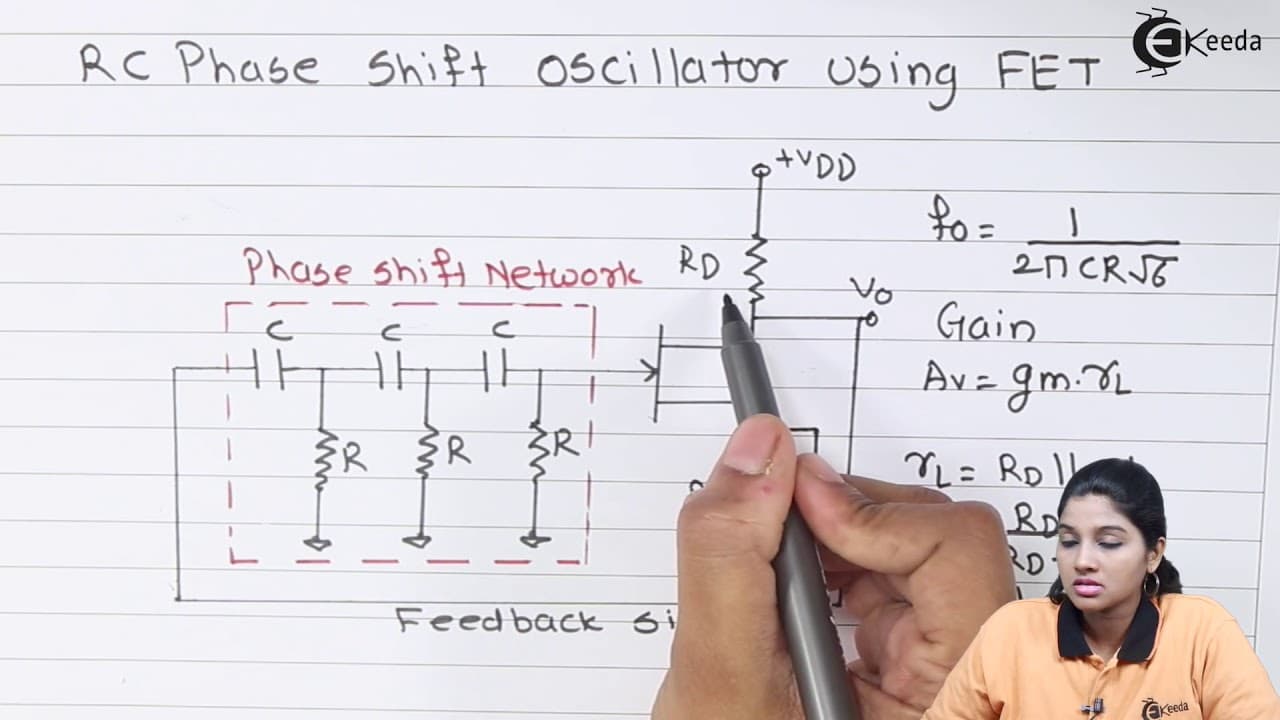

How Does an RC Phase Shift Oscillator Work with FET?

TL;DR

An RC phase shift oscillator generates low-frequency audio signals by creating a total phase shift of 360 degrees. This is achieved using a feedback network of three capacitors and resistors, providing 180 degrees shift, while an FET offers high input impedance to minimize loading effects. The circuit requires a gain of at least 29 to sustain oscillations, with frequency adjustable by changing capacitor values.

Transcript

click the bell icon to get latest videos from equator hello friends in today's video we are going to see RC phase shift oscillator implementation by using Fe T and transistor so let's begin with the topic we know that an C phase shift oscillators are basically used to produce a frequency having low frequency range that means or your frequency range... Read More

Key Insights

• 😘 RC phase shift oscillators are used to generate low-frequency range frequencies, also known as audio frequencies.
• ❓ An RC phase shift network consisting of capacitors and resistors provides the required phase shift for the oscillator circuit to function.
• ❓ FET is used in the circuit to reduce loading effects on the RC phase shift network.
• 🟰 The gain of the circuit must be equal to or greater than 29 for oscillations to occur.
• 💱 The frequency of oscillation can be adjusted by changing the values of the capacitors or resistors in the circuit.
• ❓ Gang capacitors, with the same value, are used in the RC phase shift network.
• 🉐 FET and transistor can be used interchangeably in the circuit, each with its own advantages.

Questions & Answers

Q: What is the purpose of an RC phase shift oscillator?

An RC phase shift oscillator is used to generate frequencies in the low-frequency range, also known as audio frequencies.

Q: How does an RC phase shift network provide the required phase shift?

An RC phase shift network consists of three capacitors and three resistors that provide a phase shift of 180 degrees each, allowing for a total phase shift of 360 degrees.

Q: Why is FET used in the circuit instead of a transistor?

FET is used to reduce loading effects on the RC phase shift network. FET has a high input impedance, reducing the impact on the feedback circuit.

Q: How is the frequency of oscillation determined in the circuit?

The frequency of oscillation can be changed by adjusting the values of the capacitors or resistors in the circuit. The formula fo = 1 / (2 * pi * CR * sqrt(6)) is used to calculate the frequency.

Summary & Key Takeaways

• RC phase shift oscillators are used to produce low-frequency range frequencies and are also known as audio frequency oscillators.

• An RC phase shift network is used to provide a total phase shift of 360 degrees for the oscillator circuit to function properly.

• The video explains the use of FET and transistor in the circuit to reduce loading effects on the RC phase shift network.
