DIY Scanning Electron Microscope - Operation procedure

TL;DR

Demonstrating how to operate a scanning electron microscope, showcasing sample loading, vacuum chamber setup, and image adjustments.

Transcript

hey everyone I realized that I never made a video showing me actually using the scanning electron microscope so I was actually really surprised that this thing works after getting it back from Maker Faire it took a couple of hard knocks during the trip so I changed the filament and tested it out and yeah it still works so let me show you how I do i... Read More

Key Insights

• 🔬 Proper sample loading and vacuum chamber setup are essential for operating a scanning electron microscope effectively.
• ⚡ Adjustments in high voltage, filament, and photomultiplier power supply are crucial for obtaining clear images.
• 🤩 Changing scan patterns, acceleration voltage, and adjusting photomultiplier settings are key aspects of image refinement.

Questions & Answers

Q: What are the initial steps involved in operating a scanning electron microscope?

The initial steps include loading a sample, setting up the vacuum chamber, turning on the mechanical pump, and ensuring proper pressure levels before starting the diffusion pump.

Q: How is the image adjusted on the oscilloscope during the operation of the scanning electron microscope?

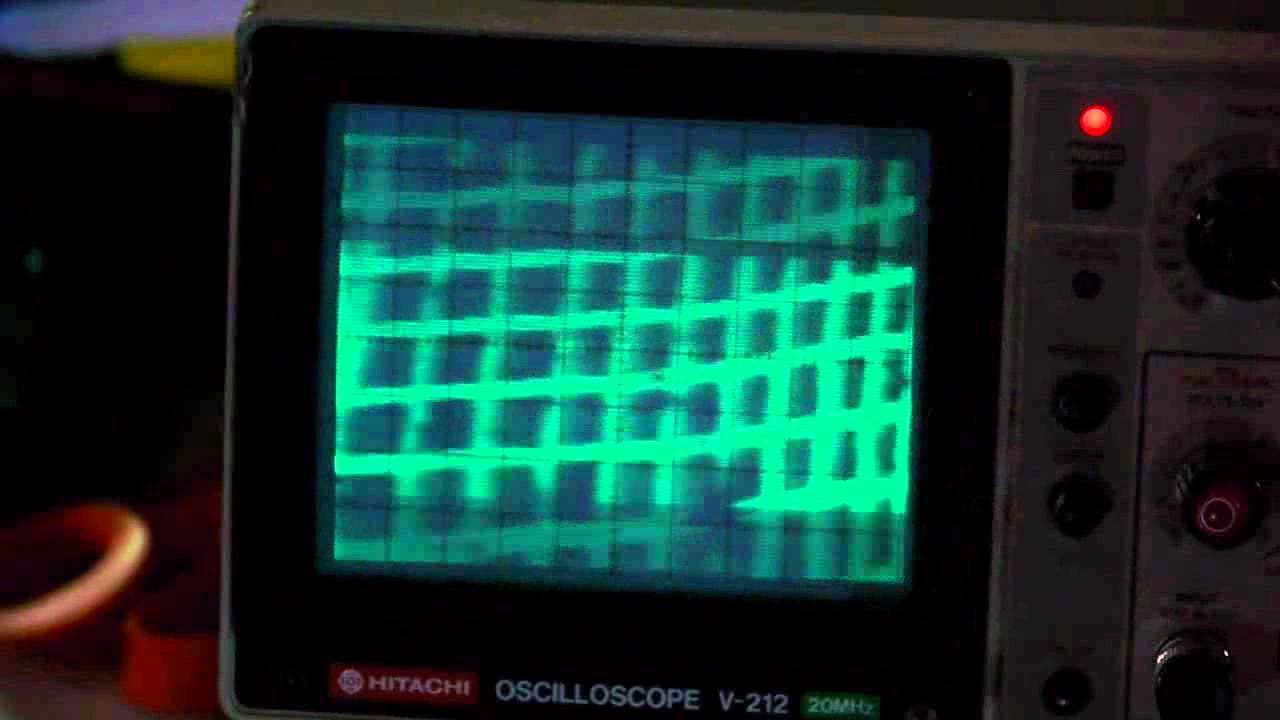

The image on the oscilloscope can be adjusted by changing scan patterns, increasing acceleration voltage, altering photomultiplier voltage, and adjusting the gain on the photomultiplier amplifier.

Q: Why is it crucial to use a light-tight shroud when operating a scanning electron microscope?

A light-tight shroud is essential as the microscope is light-sensitive, and using it prevents interference during image capture and analysis by shielding external light sources.

Q: What are some challenges faced during the operation of a scanning electron microscope?

Challenges include maintaining proper pressure levels, preventing arcing, adjusting voltage levels precisely, and dealing with image interference from external factors like oil residues.

Summary & Key Takeaways

• Demonstrates the process of loading a sample and setting up the vacuum chamber for a scanning electron microscope.

• Shows the steps involved in turning on the high voltage, filament, and photomultiplier power supply.

• Illustrates adjustments to the image on the oscilloscope through changing scan patterns and voltage levels.
