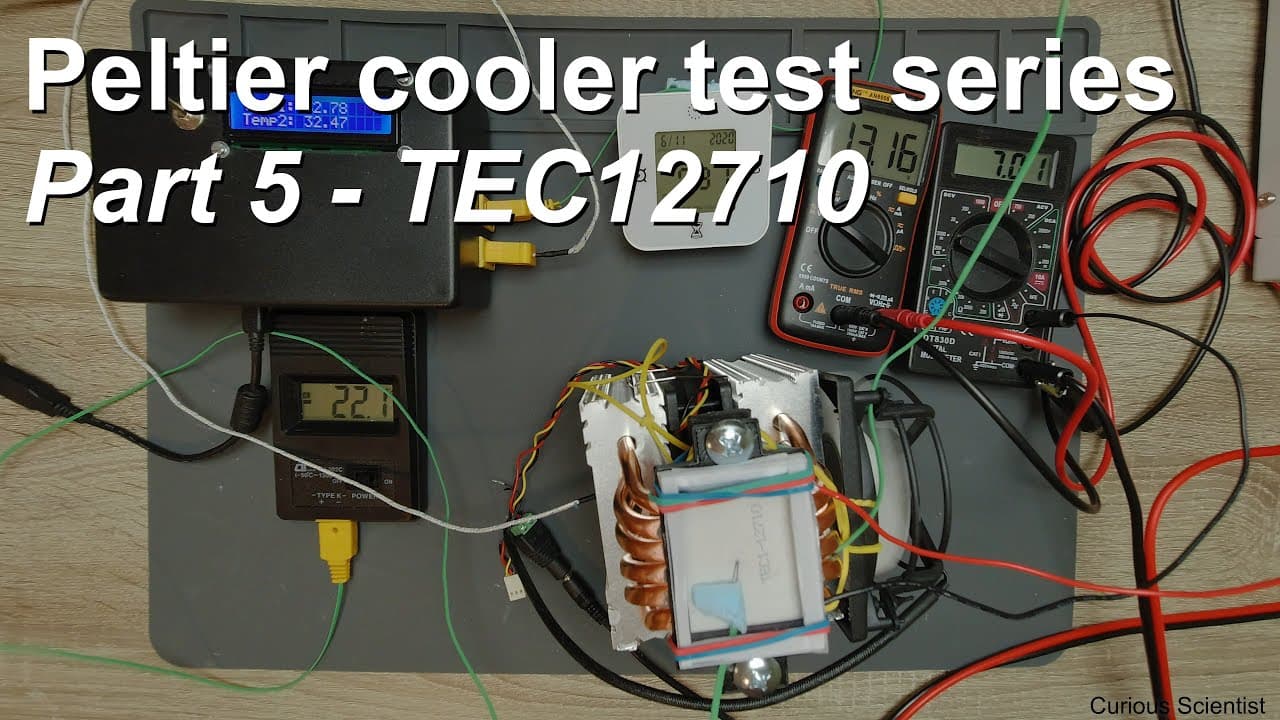

Testing and comparing different Peltier coolers - Part 5 - TEC12710

TL;DR

A fifth part of a series testing the cooling performance of Peltier devices with detailed temperature measurements.

Transcript

welcome or whoa this is the fifth part of this series where I test different particulars and I assess their performance so if you are not familiar with my previous videos please check the playlist in the description or in the corner of the video somewhere here and check those videos so you can get some kind of information about my motivation behind... Read More

Key Insights

• 🥶 Peltier devices operate on the principles of thermoelectric cooling, wherein heating on one side creates cold on the opposite side through applied current.
• 😎 The relationship between current and temperature requires careful monitoring, as excessive current can transition the device from cooling to heating due to Joule heating.
• 😥 Experimentation with thermocouples placed at different points allows researchers to gauge the effectiveness of coolers under real-world conditions, though positioning can affect measurement accuracy.
• 😒 Proper thermal management techniques, including the use of thermal greases, are vital for maximizing the performance of cooling systems.
• 😎 The significance of maintaining an optimal current level presents potential for better designs in cooling technology, underscoring the need for further innovations.
• 🫵 As the video progresses through different stages of testing, viewers can learn valuable lessons about the operational limits and optimal configurations for Peltier cooler setups.
• 😎 Continuous data analysis and adjustments during experiments indicate the need for precision in managing multiple variables for achieving desired cooling effects.

Questions & Answers

Q: What is the main purpose of the experiments shown in the video?

The main purpose of the experiments is to test the performance of Peltier coolers by measuring how different current levels affect their cooling capabilities. Each step is carefully recorded to analyze the relationship between current input and the temperatures produced on both the cold and hot sides.

Q: How do the current settings affect the temperature readings?

Increasing the current generally leads to a decrease in the cold side temperature until a certain point, where the Joule effect begins to outweigh the Peltier effect, causing the cold side temperature to rise. This phenomenon demonstrates the delicate balance between effective cooling and heating due to electrical resistance in the cooler.

Q: What are the implications of the Joule effect in the context of these experiments?

The Joule effect implies that as current increases in a Peltier device, more heat is generated due to electrical resistance, which can diminish cooling efficiency. Understanding this threshold helps in optimizing the current settings for maximum cooling performance without overtaxing the device.

Q: Why is thermal grease used during the experiments?

Thermal grease is applied to enhance thermal conductivity between surfaces, ensuring better contact between the Peltier cooler and the heat sink. This improves the accuracy of temperature readings and overall efficiency, allowing the cooler to perform optimally under load.

Q: What findings suggest the efficiency of the Peltier cooler tested?

The experiments show a notable decrease in cold side temperature when conducting tests at various amperes, where even at high currents, temperatures remained significantly below room temperature for relatively high cooling power, indicating its effective thermal management.

Q: How did the results vary between no-load and loaded conditions on the Peltier cooler?

Under loaded conditions, the temperature drop on the cold side was less pronounced than in no-load conditions. This indicated that the heat flux from the environment significantly impacted the cooler’s ability to maintain low temperatures, demonstrating the importance of thermal load management.

Q: What future experiments does the presenter plan to perform?

The presenter intends to conduct further tests with a higher current load of 15 amperes to analyze its significance and impact on cooling performance. A subsequent comparison video is also planned, summarizing the findings and presenting visual data curves for better understanding.

Q: What scientific principles govern the behavior of semiconductors in Peltier devices?

Semiconductors exhibit behavior that is crucial for the functioning of Peltier devices; unlike metals, their resistance decreases with increasing temperature. This unique property allows for the formation of a temperature differential when electrical current passes through, which is the basis for their cooling effect.

Summary & Key Takeaways

• The video presents a series of experiments testing the temperature performance of a Peltier cooler under varying current loads, utilizing multiple thermocouples for accurate measurements.

• Initial observations show significant temperature variations on the cold side, demonstrating the relationship between increasing current and cooling efficiency until reaching the Joule heating effect threshold.

• Final results indicate the cooler's performance with both no-load and under a thermal load, showcasing its effectiveness and areas for further improvement.
